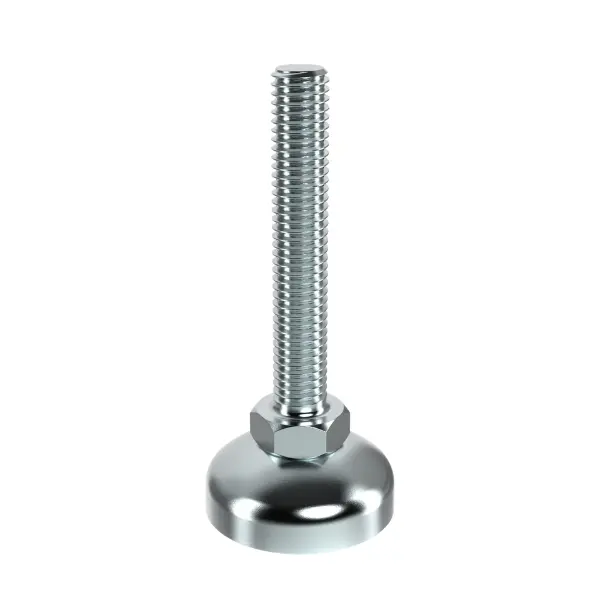

Steel levelling foot

https://leanproducts.eu/web/image/product.template/1762/image_1920?unique=279ba48

Steel levelling foot with 80 mm long M12 threaded stem and Ø 30 or Ø 45 mm base. On GF-N Ø 28 pipe it is fitted with the M12 threaded insert, on the GF-N Hard profile with the dedicated insert.

Read more ↓
Code: 3842529025
from not with options Prices per piece + VAT Prices per pack of %s + VAT colors only of available
  • Diameter mm
  • Material
  • Thread
  • Length mm

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Request a quote
We reply within 1 working day
Download PDF data sheet

Specifications

Diameter mm 30
Material Steel
Thread M12
Length mm 80

Insert the M12 threaded insert into the bottom of the upright (GFN-E02 on GF-N pipe, GFN-E31 on the GF-N Hard profile) and screw in the foot. Then adjust the height to level the structure.

The limit of the assembly is the insert: 1250 N with the GFN-E02, 3000 N with the GFN-E31 on the Hard profile. Tell us the load of the structure and we will check the number of feet.

The larger base spreads the load better and is more stable on uneven floors. The Ø 30 takes up less space under the upright.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
