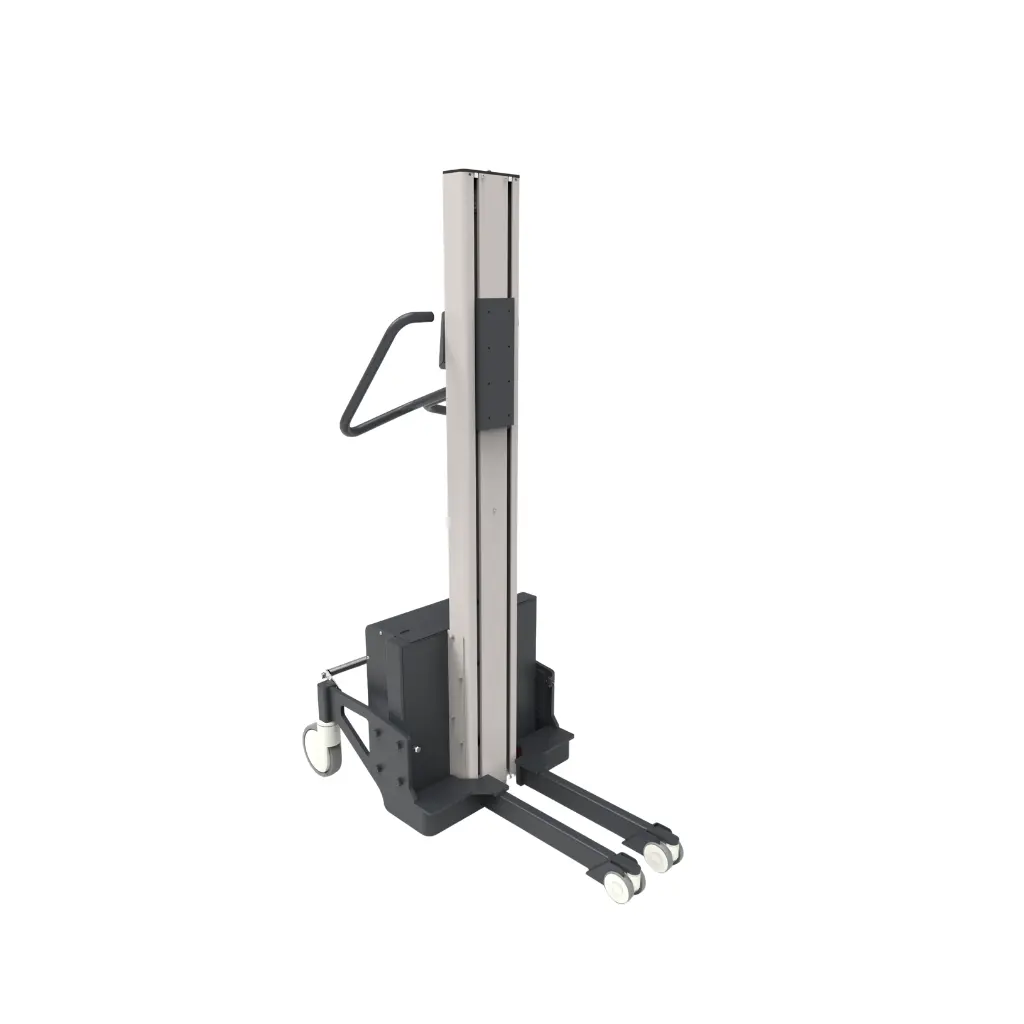

Edmolift WP 205 Electric Work Positioner 205 kg

Work Positioner

Edmolift WP 205 Electric Work Positioner 205 kg

The WP 205 is the trolley for heavy loads: it lifts, moves and rotates drums, large reels and containers up to 205 kg. It takes electric grippers and tools and, with the interchangeable batteries available on request, also works three shifts. The Edmolift WP 205 is a battery electric work positioner, used as a reel lifter and drum lifter.

Capacity 205 kg at 400 mmStroke up to 2000 mmElectric grippersSteel IP44 or stainless steel IP65

205 kgcapacity at 400 mm (180 kg with L mast)

2000 mmmaximum stroke

15 hfull charge

IP65stainless steel version

Why choose it

For heavy loads

Drums, large reels, bags and containers up to 205 kg.

Electric tools

Grippers with electric clamping and rotation, controlled from the remote control.

Safe

Overload limiter, safety clutch, soft start; highly visible red wheels.

Round the clock too

Interchangeable batteries on request for continuous shift work.

Choose it if…

you handle drums or large reels up to 205 kg
you need electric grippers with clamping and rotation
you work several shifts and want interchangeable batteries
you work in aerospace, industry or logistics

Choose another model if…

if the load does not exceed 125 kg WP 125 →
if the load reaches 285 kg WP 285 →

Not sure which one to choose? Use the Work Positioner guide →

Where it is used

For heavy loads with manual or electric tools:

Drums: gripping, lifting and rotation
Large reels: booms and grippers for 76 mm cores
Bags: crane arm with hook
Containers and trays: dedicated forks

See it at work

WP 205 SS with boom, wheel and V-support

WP 205 SS: reels on the V-support

The base: choose the legs

Standard legs

500 or 650 mm long, 520 mm wide.

Central legs

500 mm long, narrow 146 mm base.

More examples

With platform

Top for boxes, parts and containers.

Wheeled trolleys

Tool that lifts the trolley with the crate.

Technical data

Version	Steel, Stainless Steel
Lift Stroke mm	1180, 1560, 2000
Lifting Speed	120 mm/s
Legs	Central, Standard 500, Standard 650
Front Wheels	Ø 80 Fixed
Rear Wheels	Ø 150 with Central Brake
Handle and Control Type	WPR-R1 Ergonomic Handle with remote control
Number of Cycles	80-150
Battery	4 AGM (24 V - 18 Ah)
Battery Charger	External 230 V 50-60Hz
Max Load Kg	205

Masts S, M and L: overall height 1560, 1940 or 2390 mm, stroke 1180, 1560 or 2000 mm; with the L mast the capacity drops to 180 kg. Trolley weight from 86 to 95 kg. With the Ø 75 swivel front wheel (WPR-O-0026 option) the maximum capacity is 150 kg. Capacity measured with the load’s centre of gravity at 400 mm from the mast.

Compatible tools and accessories

Steel Platform 200 kgUsable capacity 190 kg

HDPE Platform 85 kgUsable capacity 85 kg

HDPE Platform with Rollers 85 kgUsable capacity 85 kg

HDPE Platform 200 kgUsable capacity 190 kg

Wave platform with rollersUsable capacity 160 kg

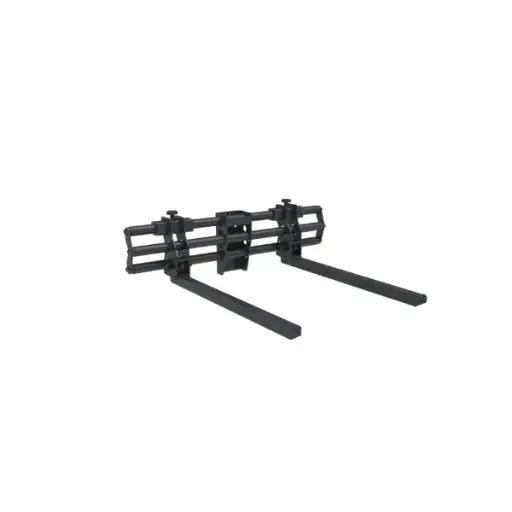

Reinforced adjustable fork 160 kgUsable capacity 160 kg

ForkUsable capacity 160 kg

Symmetric adjustable fork 180 KgUsable capacity 180 kg

8 Cleat forksUsable capacity 140 kg

Fork for rolling tray for Eu std binsUsable capacity 150 kg

Manual core gripper with tilting 90° - 80 KgUsable capacity 80 kg

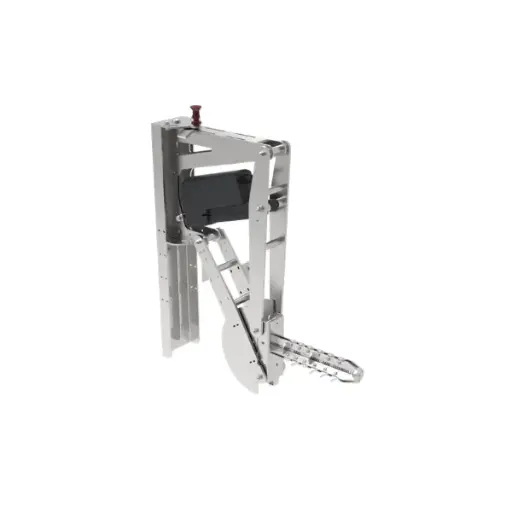

Electric core gripper with tilting 90° - 110 kgUsable capacity 110 kg

Electric clamp 100 KgUsable capacity 100 kg

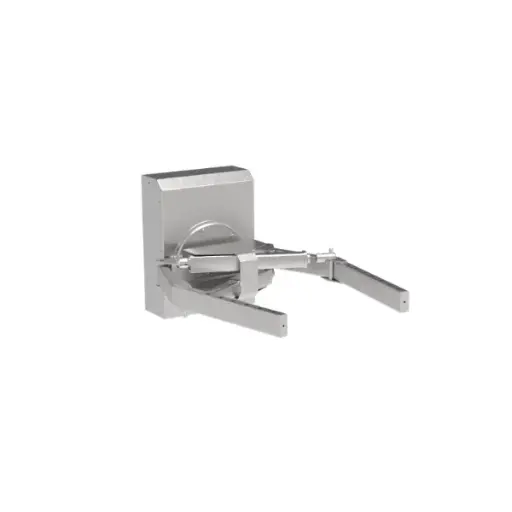

Electric clamp with rotation system 100 KgUsable capacity 100 kg

Manual front tilting gripper for drumsUsable capacity 80 kg

Manual side tilting gripper for waste binsUsable capacity 80 kg

Boom with wheel + V-support 360°Usable capacity 80 kg

Boom with wheel for V supportUsable capacity 80 kg

Boom tube Ø 60Usable capacity 120 kg

Double boom tube Ø 35Usable capacity 110 kg

Crane armUsable capacity 195 kg

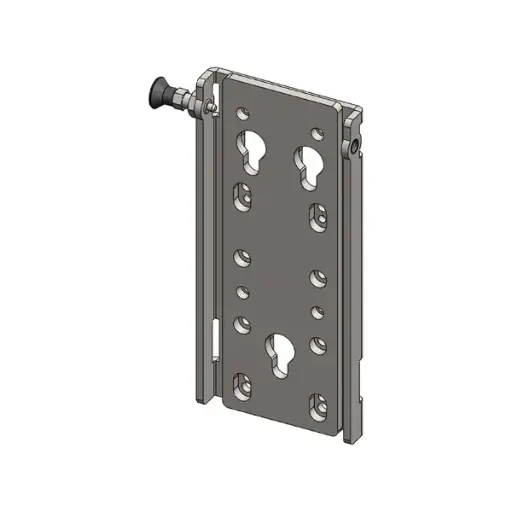

Quick change tooling heavy 205 KgQuick-change tooling for WP 125 and WP 205

Lateral translatorMoves the tool sideways by ±200 mm

Manual rotation system 100 KgManual rotation of the tool, up to 100 kg

Electric rotation system 150 Kg360° electric rotation with 3 positions

Any other questions?Read the 12 frequently asked questions →

Which Work Positioner do you need?

Send us the weight, shape and heights of the load: we will recommend the model, mast, legs and tool.

Request a quote Call +39 0434 572757

Specifications

Model	WP 205S-S-500
Version	Steel
Lift Stroke mm	1180
Total Height mm	1560
Lifting Speed	120 mm/s
Legs	Standard 500
Legs Length mm	500
Legs Width mm	520
Front Wheels	Ø 80 Fixed
Rear Wheels	Ø 150 with Central Brake
Handle and Control Type	WPR-R1 Ergonomic Handle with remote control
Number of Cycles	80-150
Battery	4 AGM (24 V - 18 Ah)
Battery Charger	External 230 V 50-60Hz
Weight Kg	86
Max Load Kg	205

205 kg with the S or M mast and 180 kg with the L mast, with the load’s centre of gravity 400 mm from the mast; the stroke is 1180, 1560 or 2000 mm. With the swivel front wheel (option WPR-O-0026) the maximum capacity drops to 150 kg; for loads up to 285 kg there is the WP 285.

The 4 standard AGM batteries (24 V – 18 Ah) charge to 100% in 15 hours with the external charger, and the level is shown on the control unit. For continuous shifts there are interchangeable batteries: a removable pack with charging station (WPR-O-0039 or WPR-O-0040) and extra AGM or lithium packs to swap; lithium batteries (WPR-O-0005), which charge faster, are also available on request.

Yes. Manual tools are changed in a few seconds with the WPR-A-0003-SS quick change, without unscrewing them. For electric grippers the trolley must be ordered with the 1 or 2 additional electric functions option (WPR-O-0007 or WPR-O-0008), 650 mm legs and the remote control with the gripper functions: clamping, rotation or tilting.

It is pushed by hand using the ErgoControl handle, on Ø 150 mm rear wheels with a central brake; to push it with less effort there is the EWA option, electric wheel assistance, in an AGM or lithium version (WPR-O-EWA-205, WPR-O-EWA-205-LI). With a load it must be moved slowly and in the low position, on a level floor: the maximum slope is 5% fully loaded and 15% unloaded.

There are two bases: standard legs 500 or 650 mm long and 520 mm wide, or central legs 500 mm long with a narrow 146 mm base, which let you get closer to benches and shelves. Electric grippers need the 650 mm legs.

Among the documents you can download from this page: the user manual in Italian and English and the technical drawing. The wiring diagram is on page 24 of the manual, right after the spare parts list.

A work positioner: the battery-powered electric lifter that lifts, carries and positions the part at the push of a button, with the right tool for the load: platform, forks, boom, gripper or crane arm. Capacities range from 55 to 285 kg.

With a work positioner and the right tool: the boom goes into the core of the reel, the gripper clamps it from the outside, and there is also an electric gripper that turns it through 90°. For drums there is the manual front tilting gripper, which lifts and tilts them with a handwheel.

From four things: part weight, how you pick it up (which tool you need), stroke and working environment. The capacity applies with the centre of gravity 400 mm from the mast, tool included; the work positioner buying guide, with its 4-question selector, shows you the suitable models and tools.

Yes, in the stainless steel version: work positioner and tools in 304L stainless steel with IP 65 protection, from WP 55 to WP 285, for the food, pharmaceutical and chemical industries. Stainless units take tools in the SS version; the WP ONE comes in IP 44 steel only.

Overload protection stops lifting if the load is too heavy and the anti-crush system stops lowering if it meets an obstacle; there is also a reinforced toothed belt, shielded moving parts, soft start and stop and an emergency stop on the control unit. It must not be used to lift people.

Every 6 months the belt, fixing screws and batteries are checked; once a year the mechanical and electrical parts, by authorised staff. Charge the battery at least once or twice a week, even with occasional use, and every 6 months if the work positioner is not used.
