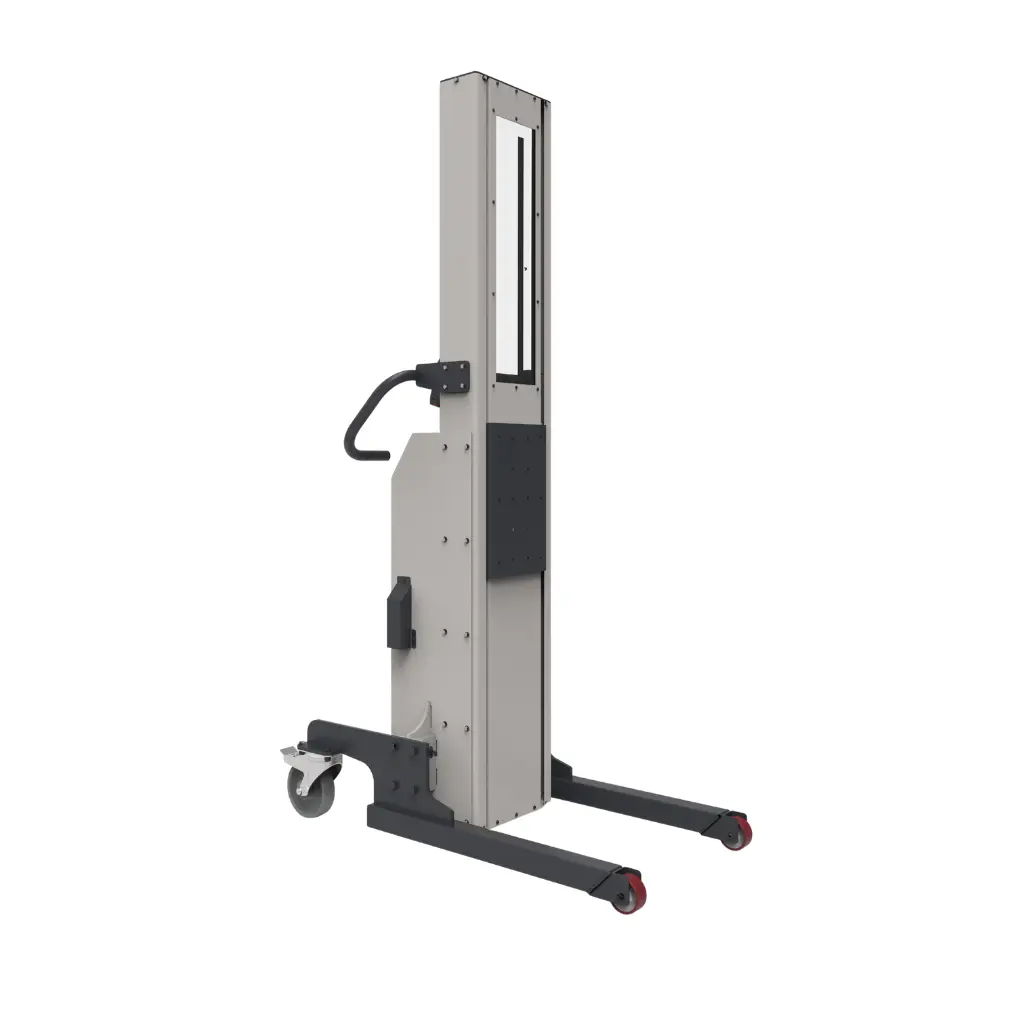

Edmolift WP 285 Electric Work Positioner 285 kg

Work Positioner

Edmolift WP 285 Electric Work Positioner 285 kg

The WP 285 is the largest in the range: it lifts, moves and rotates reels, drums and heavy loads up to 285 kg. Double mast with a transparent back panel to see ahead while pushing, dedicated ErgoControl handle and 48 V lithium battery that charges in 2 hours. The Edmolift WP 285 is a battery electric work positioner, used as a reel lifter and drum lifter.

Capacity 285 kg at 400 mmStroke 1440 mm48 V lithium batterySteel IP44 or stainless steel IP65

285 kgcapacity at 400 mm from the mast

2 hfull charge

200 kgwith the electric core gripper

IP65stainless steel version

Why choose it

See where you are going

Double mast with transparent back panel: clear view while you move the load.

Lithium 48 V

Full charge in 2 hours with external charger.

Manual and electric tools

Platforms and crane arm up to 200 kg, electric core gripper.

Steel or stainless steel

Painted steel IP44 or 304L stainless steel IP65 for food and pharmaceutical use.

Choose it if…

you handle reels, drums or loads up to 285 kg
you want short charging times: lithium battery, 2 hours
you need a good view ahead while moving
you need legs up to 850 mm long

Choose another model if…

if the load does not exceed 205 kg or you need a stroke of up to 2000 mm WP 205 →

Not sure which one to choose? Use the Work Positioner guide →

Where it is used

For large-scale production and heavy loads:

Heavy reels: 90° electric gripper up to 200 kg
Drums: gripping and moving
Suspended loads: crane arm up to 200 kg
Boxes and containers: platforms up to 200 kg

Technical data

Version	Steel, Stainless Steel
Max Load Kg	285
Lift Stroke mm	1440
Lifting Speed	120 mm/s
Legs	Standard 500, Standard 650, Standard 850
Front Wheels	Ø 80 Fixed
Rear Wheels	Ø 160 with Brake
Handle and Control Type	WPR-R1 Ergonomic Handle with remote control
Number of Cycles	130
Battery	1 Lithium (48V - 18 Ah)
Battery Charger	External 200-240 V 50-60Hz

M mast: overall height 2000 mm, stroke 1440 mm. Standard legs 540, 690 or 890 mm long, 515 mm wide. Trolley weight from 151 to 153 kg. Capacity measured with the load’s centre of gravity at 400 mm from the mast.

Images and applications

Edmolift WP 285 Electric Work Positioner 285 kg

Compatible tools and accessories

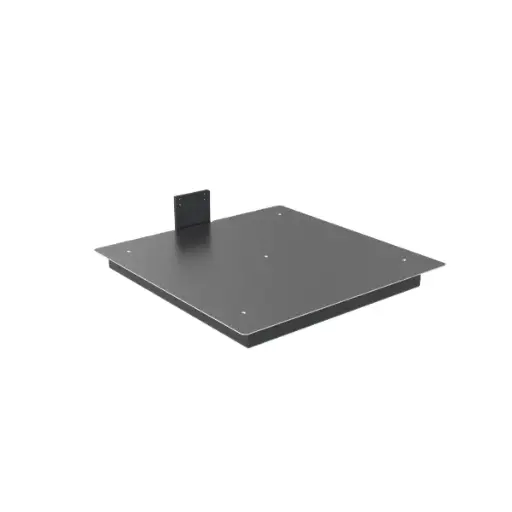

Steel Platform 200 kgUsable capacity 200 kg

HDPE Platform 200 kgUsable capacity 200 kg

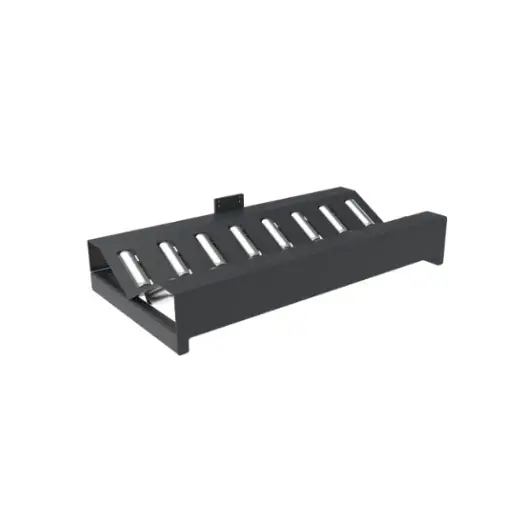

Wave platform with rollersUsable capacity 160 kg

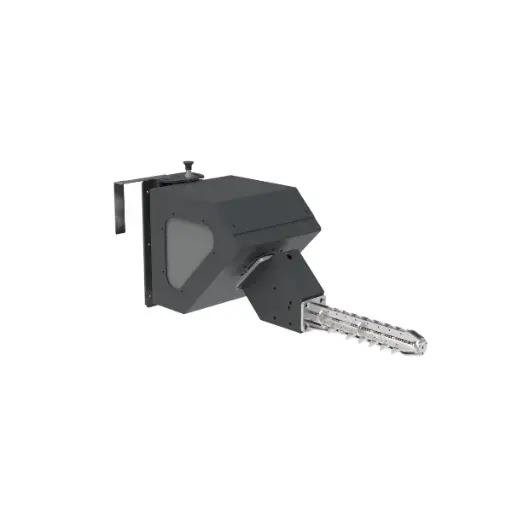

Electric core gripper with tilting 90° 200 KgUsable capacity 200 kg

Crane armUsable capacity 200 kg

Manual rotation system 100 KgManual rotation of the tool, up to 100 kg

Electric rotation system 150 Kg360° electric rotation with 3 positions

Any other questions?Read the 10 frequently asked questions →

Which Work Positioner do you need?

Send us the weight, shape and heights of the load: we will recommend the model, mast, legs and tool.

Request a quote Call +39 0434 572757

Specifications

Model	WP 285M-S-500
Version	Steel
Max Load Kg	285
Lift Stroke mm	1440
Total Height mm	2000
Lifting Speed	120 mm/s
Legs	Standard 500
Legs Length mm	540
Legs Width mm	515
Front Wheels	Ø 80 Fixed
Rear Wheels	Ø 160 with Brake
Handle and Control Type	WPR-R1 Ergonomic Handle with remote control
Number of Cycles	130
Battery	1 Lithium (48V - 18 Ah)
Battery Charger	External 200-240 V 50-60Hz
Weight Kg	151

Up to 285 kg, with the load’s centre of gravity 400 mm from the mast: it is the highest-capacity model in the range. It has the M mast, 2000 mm high, with a 1440 mm stroke; if you need a stroke of up to 2000 mm and the load does not exceed 205 kg, choose the WP 205.

Two hours: as standard it has a 48 V – 18 Ah lithium battery that charges to 100% in 2 hours with the external charger. The charge level is shown on the control unit.

Stainless steel or HDPE platforms up to 200 kg, the wave platform with rollers up to 160 kg, the crane arm up to 200 kg and the electric core gripper that turns reels with a Ø 76 mm core through 90°, up to 200 kg. For the electric gripper the trolley must be ordered with the 2 additional electric functions option (WPR-O-0008).

Yes: the double mast has a transparent back frame, so you can see ahead while pushing the trolley with its dedicated ErgoControl handle. At the rear it has Ø 160 mm wheels with brakes, at the front fixed Ø 80 mm wheels.

It is 2000 mm high, with standard legs 540, 690 or 890 mm long and 515 mm wide. The trolley weighs from 151 to 153 kg.

A work positioner: the battery-powered electric lifter that lifts, carries and positions the part at the push of a button, with the right tool for the load: platform, forks, boom, gripper or crane arm. Capacities range from 55 to 285 kg.

With a work positioner and the right tool: the boom goes into the core of the reel, the gripper clamps it from the outside, and there is also an electric gripper that turns it through 90°. For drums there is the manual front tilting gripper, which lifts and tilts them with a handwheel.

From four things: part weight, how you pick it up (which tool you need), stroke and working environment. The capacity applies with the centre of gravity 400 mm from the mast, tool included; the work positioner buying guide, with its 4-question selector, shows you the suitable models and tools.

Yes, in the stainless steel version: work positioner and tools in 304L stainless steel with IP 65 protection, from WP 55 to WP 285, for the food, pharmaceutical and chemical industries. Stainless units take tools in the SS version; the WP ONE comes in IP 44 steel only.

Overload protection stops lifting if the load is too heavy and the anti-crush system stops lowering if it meets an obstacle; there is also a reinforced toothed belt, shielded moving parts, soft start and stop and an emergency stop on the control unit. It must not be used to lift people.
