Vertical core gripper 80 kg
The Vertical core gripper 80 kg (WPR-T-0029-SS) is a manual stainless steel gripper designed for vertically gripping the core of reels with a Ø 76 mm inner diameter, with a load capacity of up to 80 kg. Its compact dimensions (283 × 76 mm) make it suitable for integration with the WP 125 SS series Work Positioners. The stainless steel construction provides corrosion resistance in demanding production environments. Compatible with the WPR line accessories, including adapters for cores of different diameters and expandable hub extensions.
Work Positioner Tools · Grippers

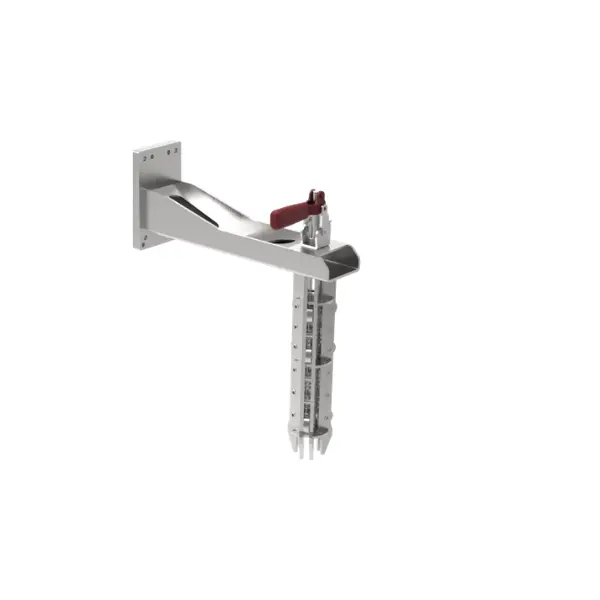

Vertical Core Gripper for Reels with Ø 76 mm Core
It grips the reel by its 76 mm core and keeps it vertical while it is lifted and moved. Stainless steel, 6 kg, up to 80 kg on WP 85 and WP 125.
Why choose it
Reel upright
For reels to be picked up and set down upright.
Only 6 kg
The lightest reel gripper in the range.
From WP 55 to WP 125
50 kg on the WP 55, 60 kg on the WP 65, 80 kg on WP 85 and WP 125.
Technical data
| Version | Stainless Steel |
| Length mm | 283 |
| Width mm | 76 |
The usable capacity depends on the Work Positioner the tool is fitted to: you will find it below for each model.
WP 55Usable capacity 50 kg
WP 65Usable capacity 60 kg
WP 85Usable capacity 80 kg
WP 125Usable capacity 80 kgWe help you choose the right tool
Send us the weight, shape and dimensions of the load and tell us which Work Positioner you use: we will check the tool and the capacity.
