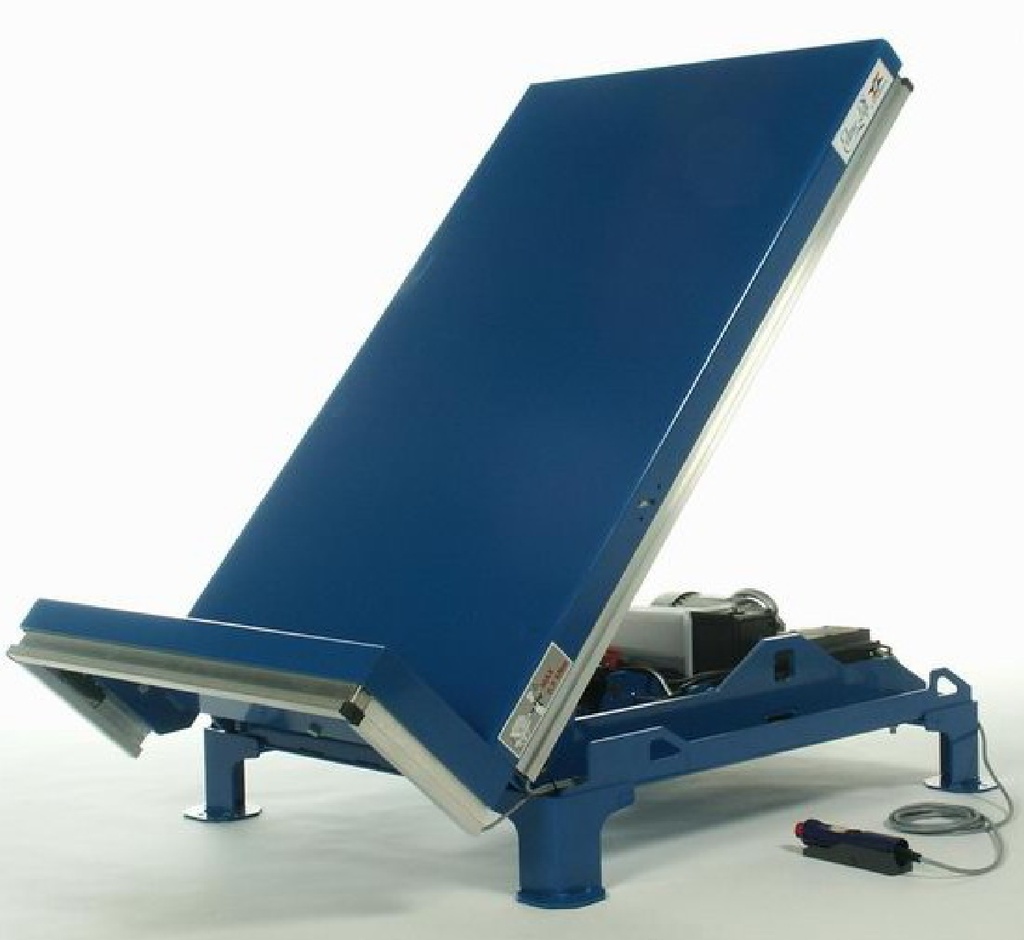

EDLF 65 Tilter 90°

Name: EDLF 65 Tilter 90°
Brand: LeanProducts
SKU: 36085

Edmolift tilter. When integrated with a lift table, the hydraulics are synchronised with the tilter.

Documents

User manual EdmoLift tilt tables (EN)

Installation quick guide EdmoLift tilters (multilingua)

EDLF_65_Drawing

Request a quote

We reply within 1 working day

Download PDF data sheet

Edmolift · Tilters

EDLF 65: pallet and box tilter 90°

Edmolift floor tilter: it tilts the load 90° on the short side, with double-acting cylinders, and brings it towards the operator for loading and unloading pallets, crates or containers. The frame houses the power unit: it is placed on the floor and connected. It is an industrial pallet and box tilter.

Tilt 90°Double-acting cylindersTorque 6.5 kNmFloor-mountedEN 1570-1 · CE

90°tilt

6.5 kNmtorque

320 mmminimum height

230 mmretaining edge

Why choose it

The load comes towards you

By tilting pallets and bins the operator reaches the parts at the bottom without bending or leaning over.

Floor-mounted, power unit included

The floor frame houses the power unit: no pit and no external unit.

The load stays in place

230 mm high retaining edge as standard and anti-crush safety bars on all 4 sides.

Also on a lift table

The same tilter can be integrated into the platform of a lift table, with a single hydraulic system.

Choose it if…

you load and unload pallets, crates or bins at floor level and want the load tilted towards the operator
you need to tilt the load up to 90°
the load, measured at its centre of gravity, stays within the 6.5 kNm torque

Choose another solution if…

if 45° tilt is enough ESLF 65 Tilter 45° →
if you also want to lift the load, with tilt from +5° to −40° ALT 750 ArmLift →
if you want to lift the pallet and tilt it 40° to the right or left TSLN 750 Pallet Lifter and Tilter 40° →
if you need to lift the load and then tilt it: tilter on a lift table TL 2000 Single Scissor Lift Table →

Not sure which one to choose? Use the lift table selection guide →

Floor-mounted or on a lift table

ESLF 65

Tilts 45° on the long side, single-acting cylinders.

View product →

On a lift table

The tilter is integrated into the platform, for example of a TL 2000: same hydraulic system, torques of 6.5, 13 or 18 kNm.

View product →

On a lift table: platform lengths 900, 1300 and 1700 mm, torques 6.5, 13 and 18 kNm.

Technical data

Platform length mm	1300
Platform width mm	800
Lowered height mm	320
Tilt	90°
Hydraulics	Double acting
Tilt side	Short side
Torque kNm	6.5
Power kW (S3)	0.55
Weight kg	165
Installation	Floor

Tilting time: 29 s up and 22 s down.

Accessories and related products

Foot control UC-60Foot control: hands free

Anti-slip deck for lift tablesAnti-slip deck in aluminium tread plate or checker plate

Any other questions?Read the 9 frequently asked questions →

Need help choosing?

Tell us the load weight, working heights and how the pallet arrives: we will recommend the model and accessories and prepare the quote with Edmolift data.

Request a quote Call +39 0434 572757

Specifications

Platform length mm	1300
Platform width mm	800
Lowered height mm	320
Tilt	90°
Hydraulics	Double acting
Tilt side	Short side
Torque kNm	6.5
Power kW (S3)	0.55
Weight (kg)	165
Installation	Floor

With single-acting cylinders the tilter reaches 45° (ESLF 65); with double-acting cylinders 90° (EDLF 65). With 90° rotation, beyond the vertical, the available torque is reduced: it must be checked in both directions.

Torque (kNm) = weight in kN × distance in metres between the hinge and the load centre of gravity; divide kg by about 100. Example: 1000 kg with the centre of gravity at 0.4 m gives about 4 kNm, so 6.5 kNm is enough. Beyond the vertical, at 90°, the available torque drops to about 4 kNm. The centre of gravity must stay at least 50 mm from the hinge.

Yes: integrated into the platform of a lift table, it shares its hydraulic system. It is available with 900, 1300 and 1700 mm platforms and torques of 6.5, 13 and 18 kNm.

No: the tilter stands on the floor and the frame houses the power unit, so there is no pit and no external unit. You place it on the floor and connect it.

The tilter has a 230 mm high retaining edge as standard, which keeps the load in place, and anti-crush safety bars on all 4 sides.

By lifting and tilting the load towards the operator: the Armlift lifts and tilts from +5° to −40°, the TSLN pallet lifter tilts the pallet by 40° to the right and left, and the tilters reach 45° or 90°. If the pallet is emptied or filled layer by layer, the PL 2002 pallet leveller keeps it at the right height at all times, without electricity.

The pallet lifter is loaded directly with a manual pallet truck and raises the pallet up to 970 mm, with free access on three sides; the TSE goes down to 10 mm. Among the Armlifts, the ALT 1500U, ALT 1500UE and ALT 1500GB have a U-shaped platform only 6 mm high and pick up pallets and trolleys straight from the floor.

With the ARZ and LTT 750 lifting arms: they take the trolley from the tugger train, lift it and tilt it towards the operator. The ARZ adjusts height and tilt from +5° to −40°; the LTT 750 lifts vertically and takes up the least space.

About 4 times a year or every 1000 cycles, whichever comes first: hydraulic oil (ISO 32) for leaks and level, hoses and cables, emergency stops and safety bars, by qualified staff with original spare parts. The user manual, with the wiring diagrams, is in the “Documents” section of the product page.
