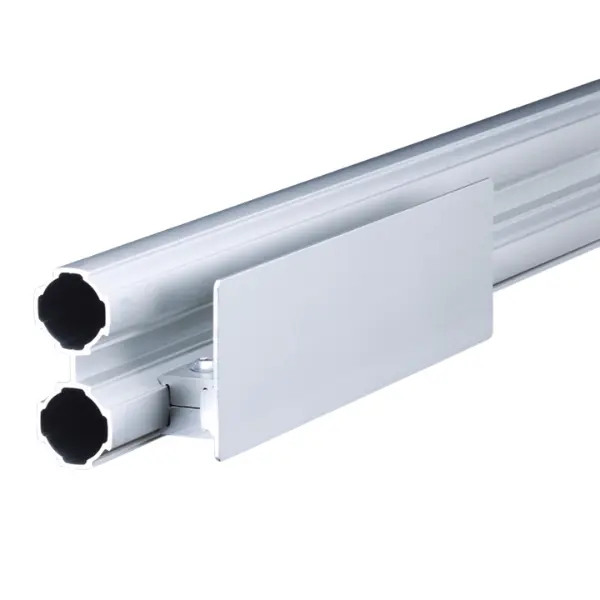

Aluminium name plate H 60 mm GF-N

https://leanproducts.eu/web/image/product.template/312/image_1920?unique=b5b9720

60 mm high extruded aluminium bar for names, workstation numbers and signage on GF-N Ø 28 structures: 4000 mm bar or cut to length, 0.489 kg/m.

Code: GFF-018
Length: 4,000
  • Length
  • Material
  • Weight

Cut dimensions

mm
Calculating price…
Full bar Full sheet From {min} to {max} mm · full bar {max} mm Up to {maxl} × {maxw} mm · minimum {min} mm Length between {min} and {max} mm. Width between {min} and {max} mm.

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
SUS
Contact Us
Download PDF data sheet

Specifications

Length 4000
Material Extruded aluminium
Weight 0.489 kg/m
Tags
Tags
SUS

With the system connectors, ordered separately (cross connector and double connector). We will tell you which ones and how many based on the structure.

If you want R3 rounded corners on the plate cut to length, state it in the order.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
