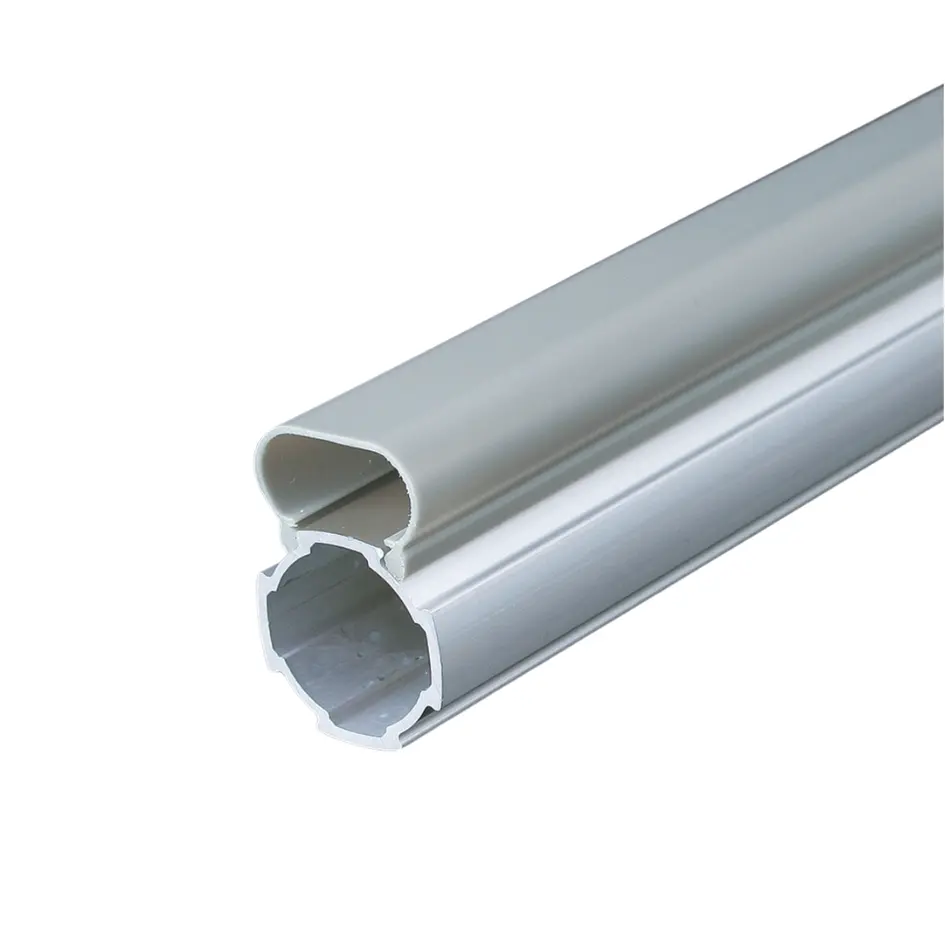

Cable duct GF-N/G

Polypropylene duct that clips along the Green Frame pipe and gathers the cables of lamps, screwdrivers and instruments: 2000 mm bar or cut to length, also grips GF-G pipe.

Cable duct GF-N/G

Gather the workstation cables along the pipe, tidy and protected: the duct clips onto the frame and we cut it to the length you need. It fits GF-N Ø 28 pipe and also grips GF-G Ø 43.

GF-N and GF-GPolypropylene0.088 kg/m2000 mm bar or cut to length

Why choose it

Tidy cables

No cables dangling over the workstation.

Protected cables

They stay sheltered from knocks and rubbing.

Made to measure

As long as the stretch of pipe to be fitted out.

Application example

Tidy cables along the workstation frame.

Workstations: cables for lamps, screwdrivers and instruments
Lines: power supplies along the uprights

Data and compatibility

Specification	Value
Series	GF-N / GF-G
Compatible with	GF-N Ø 28 and GF-G Ø 43 pipe
Material	Polypropylene (PP)
Weight	0.088 kg/m
Length	2000 mm bar or cut to length
Code	GFA-801

For one or two cables the GFE-010 cable clip is enough.

Compatible with

GF-N profileGF-N Ø 28 pipe

GF-G profileGF-G Ø 43 pipe

Cable clip GF-NCable clip

Any other questions?Read the 2 FAQs →

Need help choosing accessories?

Tell us what you need to fix or hang and on which pipe: we will give you codes and quantities.

Request a quote Call +39 0434 572757

Specifications

Materiale	Polypropylene (PP)
Length	2000
Weight	0.088 kg/m

Tags
Tags	SUS

Yes: the duct grips both GF-N Ø 28 pipe and GF-G Ø 43 pipe.

No, for one or two cables the GFE-010 cable clip is enough. The duct is worthwhile when there are many cables or they need protecting.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
