GF-G profile

https://leanproducts.eu/web/image/product.template/338/image_1920?unique=b5b9720

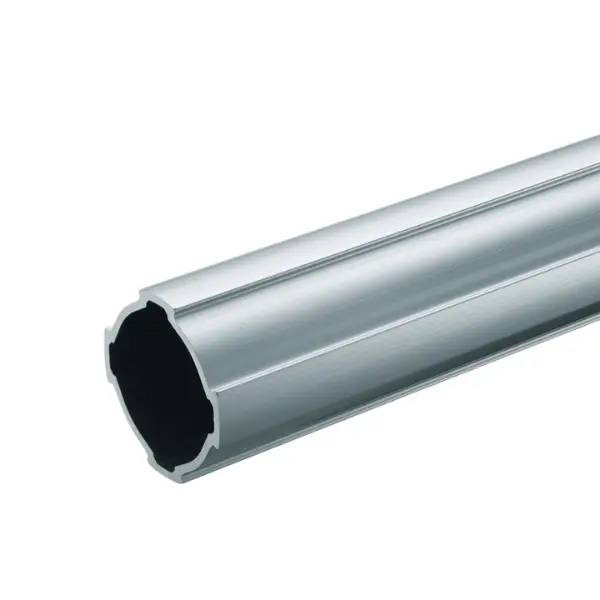

Anodised Ø 43 mm aluminium pipe from the Green Frame GF-G series: more than four times the load capacity of GF-N, for uprights, cross members and loaded structures. 0.74 kg/m, 4000 mm bar or cut to length.

Code: GFF-200
Length: 4,000
  • Length
  • Weight
  • Material

Cut dimensions

mm
Calculating price…
Full bar Full sheet From {min} to {max} mm · full bar {max} mm Up to {maxl} × {maxw} mm · minimum {min} mm Length between {min} and {max} mm. Width between {min} and {max} mm.

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
SUS
Contact Us
Download PDF data sheet

Specifications

Length 4000
Weight 0.74 kg/m
Material Anodised extruded aluminium
Tags
Tags
SUS

When the structure is large, tall or loaded: over a 1000 mm span GF-G takes 851 N at mid-span against 195 N for GF-N, at the same deflection. Connectors and feet are also sturdier. Often it is enough to use it for the uprights and keep the cross members in Ø 28.

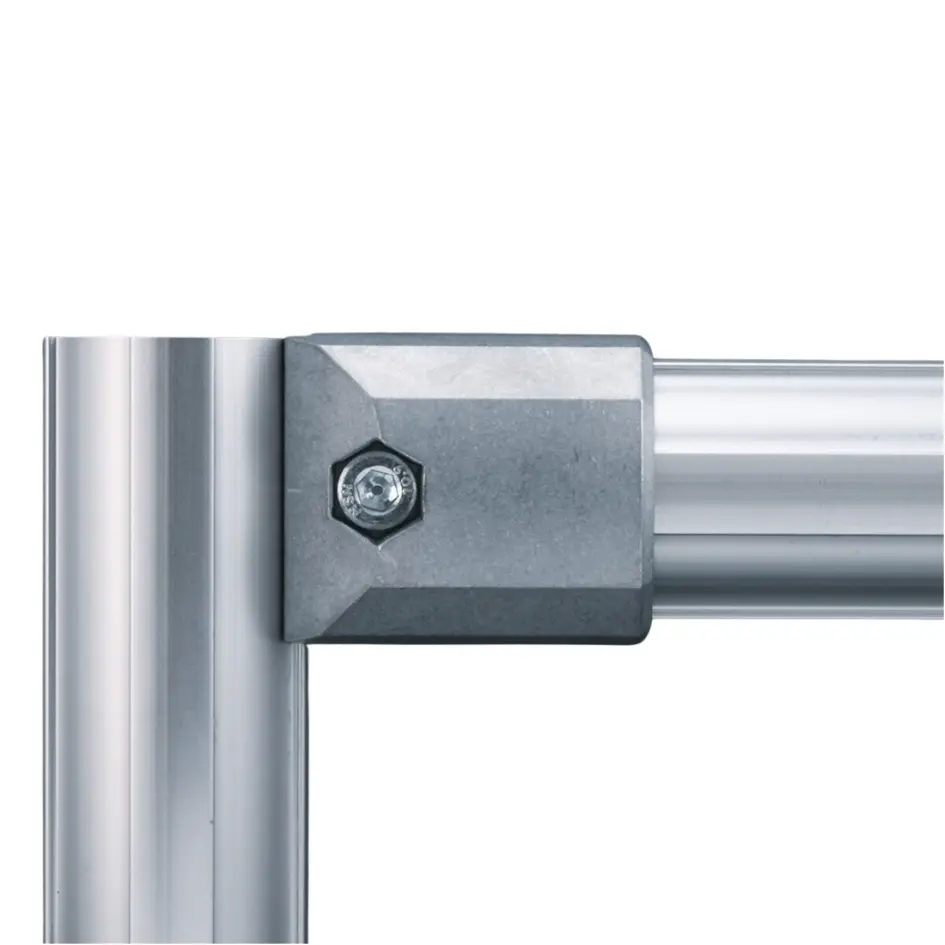

With G-N mixed connectors, outer or inner 90°: they join a Ø 43 pipe to a Ø 28 pipe. This way you put GF-G uprights and GF-N cross members in the same structure.

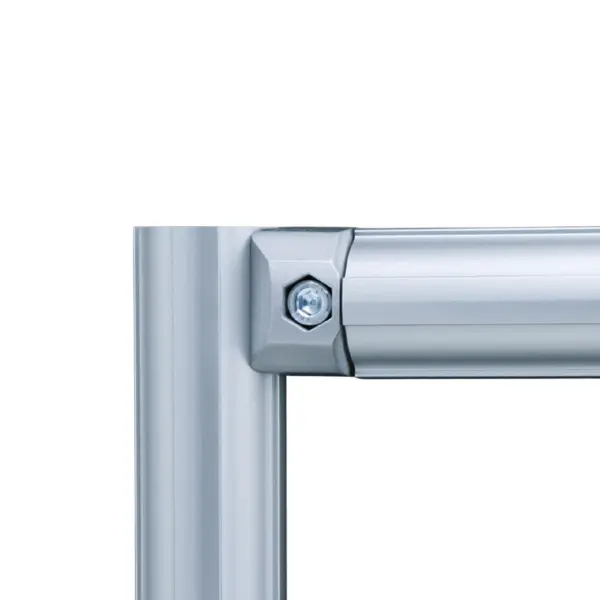

Outer and inner 90°, corner, 45°, hinged, linear and two reinforced outer connectors for joints with high moments. They are tightened with an M8 screw to 24.9 N·m; the 90° outer holds 2500 N against slipping, the inner 1700 N.

Yes, it is one of the typical uses. The normal outer connector allows 66 N·m vertically; with GF-G uprights and reinforced outer connectors an arm takes about 800 N at 300 mm from the upright. Horizontally the values are lower: the uprights must be tied together.

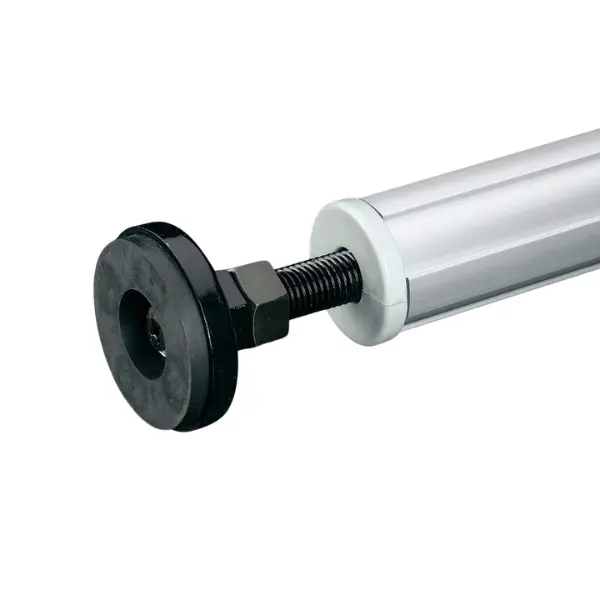

With the M16 threaded insert GFN-E05 you fit levelling feet and M16 stem castors: it takes 5800 N in compression. The conductive version for ESD areas takes 1000 N.

0.74 kg/m, twice GF-N (0.37 kg/m), with a moment of inertia more than four times greater: 5.07 against 1.16 × 10⁴ mm⁴.

The GF-G profile is the basic Ø 43 pipe. The one with C10 slot adds a slot for T-nuts and the connection to SF square profiles. The Hard has a thick wall, about twice the bending resistance, for joints that take impacts. The GF-G W joins two Ø 43 pipes and is the cross member for high loads; the P150 is a 193 mm high twin beam for large spans, work enclosures and gantries.

The GF-N Ø 28 is the standard for workstations, flow racks and trolleys. The GF-S Ø 19 weighs about half as much (0.20 kg/m versus 0.37) and is for light frames, dividers, guards and small mechanisms. The GF-G Ø 43 is for uprights and cross members that have to carry a lot: over a 1000 mm span it supports 851 N at the centre versus 195 N for the GF-N, for the same deflection. It is often worth mixing them, for example GF-G uprights and GF-N cross members joined by mixed connectors.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
