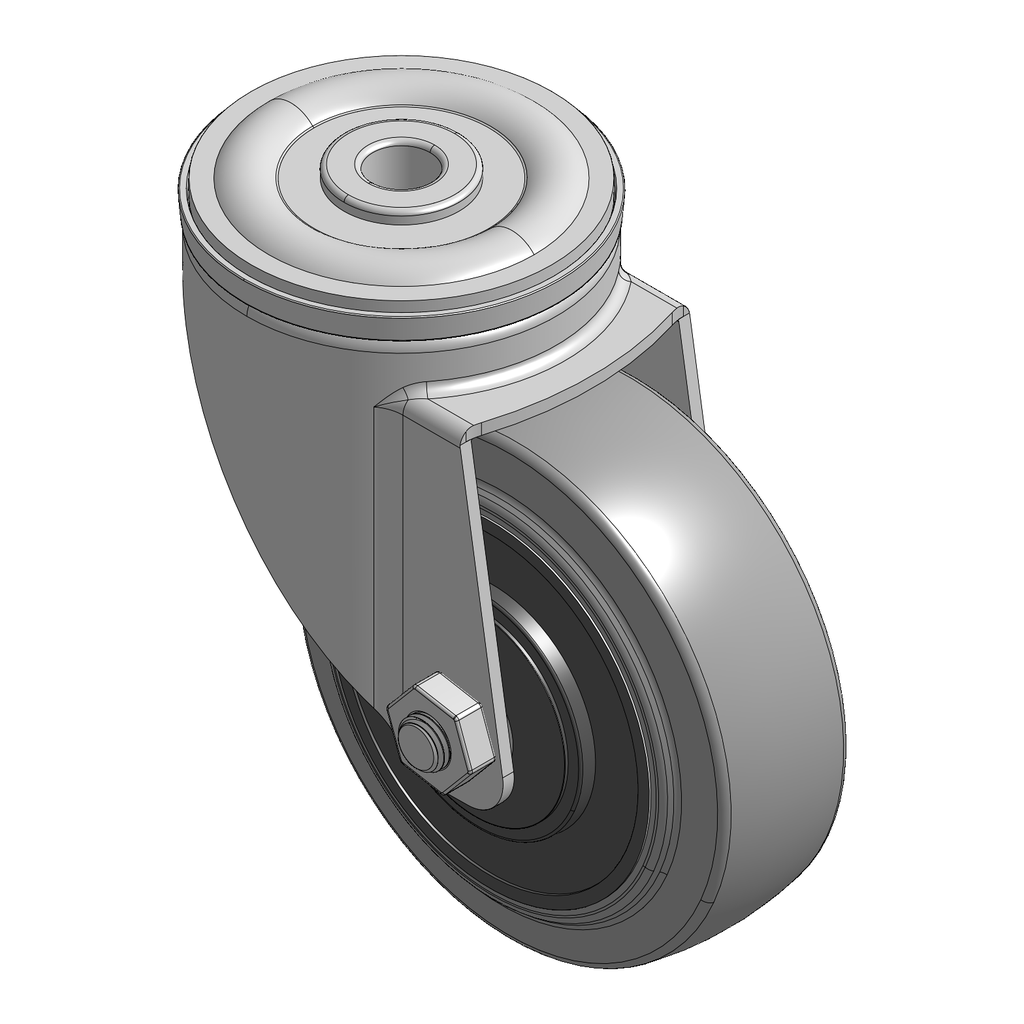

Castor with centre hole

https://leanproducts.eu/web/image/product.template/1760/image_1920?unique=480dd02

Swivel castor with centre hole, Ø 100 or 125 mm, in elastic rubber or polyamide with ball bearings, with or without brake: 150 kg. On GF-N pipe it is fixed with an M12 screw in the M12 threaded insert.

Read more ↓
Code: LP-RV001
from not with options Prices per piece + VAT Prices per pack of %s + VAT colors only of available
  • Type
  • Wheel Diameter
  • Material
  • Bearing Type
  • Capacity Kg

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Request a quote
We reply within 1 working day
Download PDF data sheet

Specifications

Type Swivelling
Wheel Diameter 100
Material Elastic Rubber
Bearing Type Ball bearings
Capacity Kg 150

On GF-N Ø 28 pipe, insert the GFN-E02 M12 threaded insert into the bottom of the upright and fix the castor with an M12 screw through the centre hole. On the reinforced GF-N T profile an M8 screw in the centre hole of the profile is enough.

No, the limit is set by the threaded insert: the GFN-E02 takes 1250 N in compression, about 125 kg. For heavy trolleys, or ones that are moved often, use plate-mounted castors on the profile with C10 slot.

At least two, on the side you push or load from. With four swivel castors the trolley manoeuvres well in tight spaces.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
