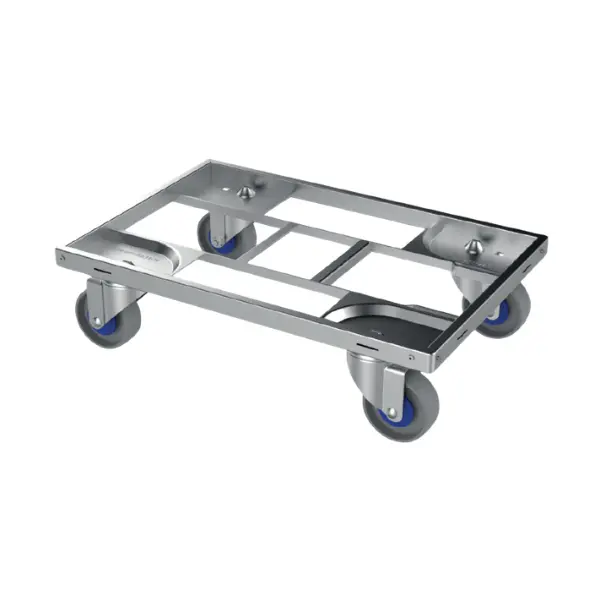

Dolly Type II

They all have a 600x400 deck (Type I, II and VII B also 600x500) and 100 mm castors. The Type I has 2 swivel and 2 fixed castors and no drawbar: it runs straight and is pushed by hand. The Type II has 4 swivel castors: it turns on the spot and is handy in tight spaces. The Type VII B is like the Type I but with a sliding drawbar and Easy Lock hook, for hitching several dollies in a convoy. The Type VII C adds the raised deck to the drawbar: containers reach the line at gripping height; it carries up to 70 kg, the others 250 kg.

On the 1200 × 800 mm format: 4 dollies 600 × 400, 2 dollies 800 × 600, 2 dollies 600 × 400 plus 1 dolly 800 × 600, or 1 dolly 1200 × 800. The maximum load is 1000 kg per Adaptor Pallet. For the ISO 1200 × 1000 mm format we confirm the combination based on your dollies.

One stack of 600x400 KLT containers, two 300x400 stacks or four 300x200 stacks. The 600x500 dolly is for containers and trays with a 600x500 base. For 800x600 stacks or two 600x400 stacks side by side there is the Dolly 800x600.

When space is tight and the dolly is moved by hand: supermarkets, aisles between racks, workstations. With 4 swivel castors you turn it on the spot and move it sideways. On long, straight routes the Type I is more convenient, as its 2 fixed castors hold the direction.

No, it has no drawbar. For tugger trains with 600x400 dollies choose the Type VII B or VII C, which have a drawbar and Easy Lock hook. The Type II travels on the Taxi Liner or the Lean Adaptor Pallet, or you pull it with the ergonomic handle.

It depends on the base of your containers. 600x400 is the most common KLT container format in Europe; 600x500 is the ISO format. Type I, Type II and VII B are available in both formats, with the same 250 kg capacity.

Polyamide (PA) is the standard castor: hard and smooth-rolling, it suits smooth industrial floors. Elastic rubber is softer and quieter and is kind to delicate floors. ESD polyamide dissipates electrostatic charges and is needed in areas where electronic components are handled. On request there are also ESD rubber, polyurethane, ESD polyurethane and Clean wheel. All have ball bearings.

The 600x400 Type I, II and VII B dollies stack up to 15 units in about 1950 mm. The Dolly 800x600 and 1200x800 also reach 15 units in 1955 mm, 2300 mm in the versions with drawbar. The Type VII C, with its raised deck, stacks up to 3 units. This way returning empties takes up little space on the train and in the warehouse.

With the Lean Adaptor Pallet, the steel pallet for dollies: it carries 4 600x400 dollies, or 2 800x600 dollies, 1 800x600 and 2 600x400 dollies, or one 1200x800 dolly, up to 1000 kg. You move it with the forklift from the long and the short side and load it onto the truck; on arrival the dollies come off the pallet without lifting them.

Not in the standard version. On request, the brake is fitted on one or two swivel castors: useful if the dolly stands at the workstation on a sloping floor or if you often load and unload it at the line side.

The retaining corner kit, riveted to the corners, holds the stack during transport. The plastic tray goes under the containers and catches drips. The ergonomic handle is for pulling the dolly by hand without bending. For storage and shipping there is the Lean Adaptor Pallet.

Yes. We start from what you move (containers, sizes and weights), the routes and the floors: we propose the type of dolly, castors, drawbar and accessories and how to build the train with the tow vehicles you have. With LeanProducts you have a single point of contact for spare parts and support too.
