ESD Neodym Magnetic Visual Pockets

https://leanproducts.eu/web/image/product.template/111/image_1920?unique=f20c9d2

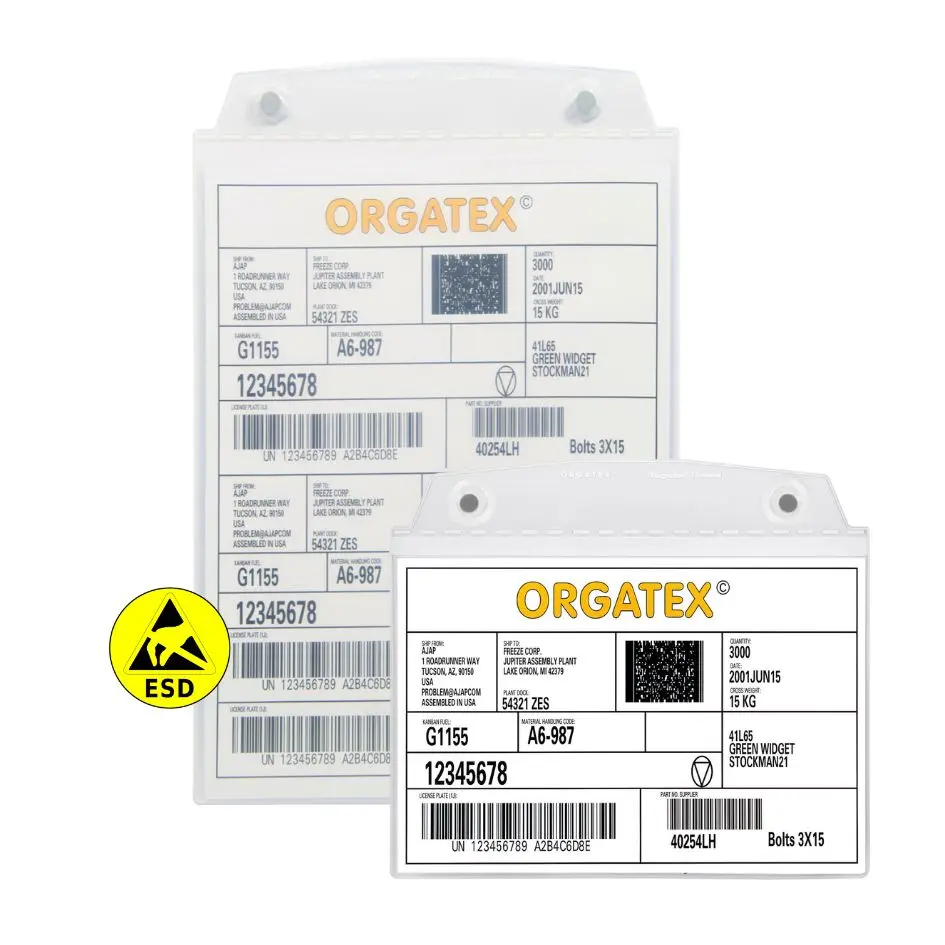

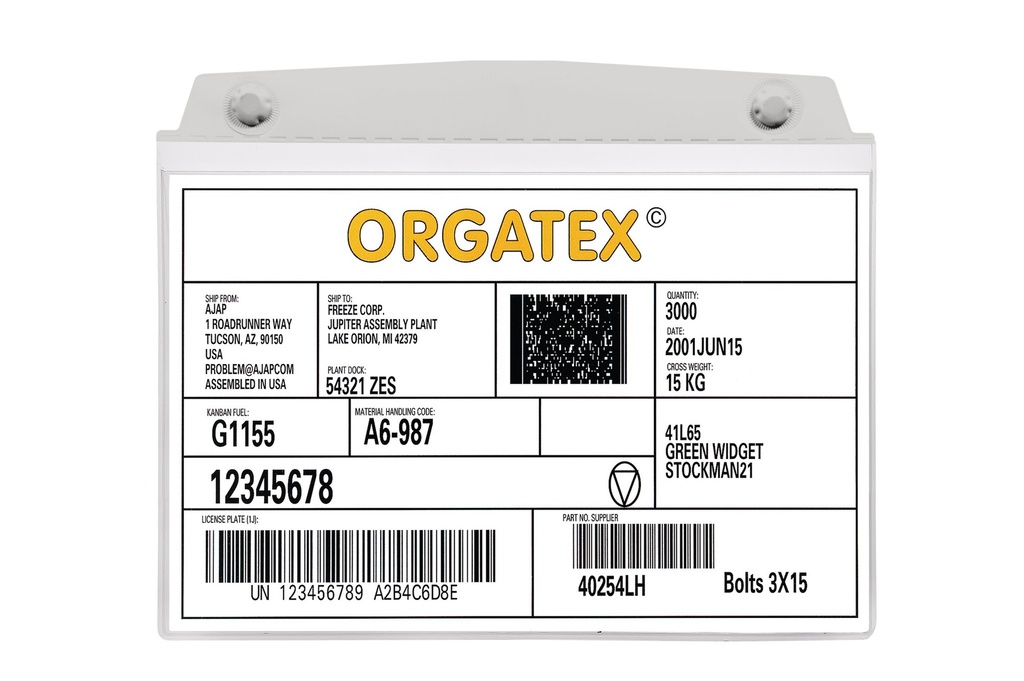

ESD Neodym Magnetic Visual Pockets are magnetic document holders made of IDP-STAT® PVC, designed for ESD-sensitive environments where visual document management must be compatible with electrostatic discharge protection. Available in A6, A5, and A4 formats (landscape and portrait) and in 9 colours for immediate colour-coding at the workstation. Sold in packs of 10 pcs.

Read more ↓
Code: MU2260-ESD-07
from
not with
options
Prices per piece + VAT
Prices per pack of %s + VAT
Prices per pack of %s pcs + VAT
colors
only
of
available
  • Colour
  • Formats
  • Pack

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Orgatex
Contact Us
Request a quote
We reply within 1 working day
Download PDF data sheet

Specifications

Colour Red
Formats A4 Landsc.
Pack 10 pcs
Tags
Tags
Orgatex

Same 2 Neodym magnets, formats and colours; the film is 0.25 mm IDP-STAT®, permanently dissipative and meeting DIN EN 61340-5-1. The ESD version does not come with an additional magnetic strip or with a flap.

Yes: as in the standard version, the strength of the two magnets lets you stack several pockets to collect them.

Typical values of 10⁹ to 10¹⁰ Ω, within a limit of 1 × 10⁵ to below 1 × 10¹¹ Ω, measured at 12 ± 3% relative humidity and 23 ± 2 °C (ORGATEX data). The film is permanently dissipative and meets the requirements of DIN EN 61340-5-1.

The standard magnetic holder has 2 mm ferrite strips (approx. 40–45 g/cm²), with 1, 2 or 4 strips or a full-surface magnetic sheet, from DIN A7 to A4 and 1/3 DIN. The Neodym has two neodymium magnets welded into the pocket: it holds even with vibration and transport and on small, uneven or curved surfaces, and comes in A6 and A5 landscape and A4 landscape and portrait, also with an extra magnetic strip. Both are available with a closing flap (the Neodym with flap is light grey); the Neodym also comes in an ESD version.

Choose the pocket by the sheet format: 1/3 DIN (99 × 210 mm, one third of A4) for narrow documents, folded A4 sheets and barcodes; A7 (74 × 105 mm) and A6 (105 × 148 mm) for cards and short information; A5 (148 × 210 mm) and A4 (210 × 297 mm), landscape or portrait, for checklists, work instructions and shift plans. Inside and outside dimensions are on each product page. Versions with closing flap come in A5 landscape and A4 landscape and portrait, the Outdoor pocket in A5 and A4 landscape.

The ESD versions are made of permanently dissipative IDP-STAT® film and meet the requirements of DIN EN 61340-5-1, so they are used in EPA protected areas. Typical surface resistance is 10⁹–10¹⁰ Ω. There are hanging and Neodym document holders, hanging Kanban-Covers, KAN-Label and KLT-Snapper for KLT containers to VDA 4902, FLIP-MAG pockets and an A4 pocket. The ESD Systembox and ESD Kanban mailbox, on the other hand, are made of low-charging ABS.
