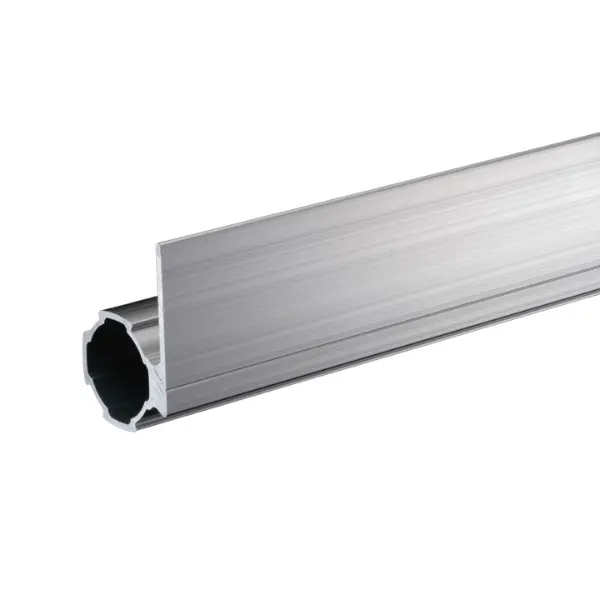

GF-N F35 profile

https://leanproducts.eu/web/image/product.template/308/image_1920?unique=b5b9720

Green Frame Ø 28 mm pipe with 35 mm flat flange: cross member, label holder and tray support in one profile. Over 1000 mm it takes 507 N at mid-span. 0.67 kg/m, 4000 mm bar or cut to length.

Code: GFF-014
Length: 4,000
  • Length
  • Weight
  • Material

Cut dimensions

mm
Calculating price…
Full bar Full sheet From {min} to {max} mm · full bar {max} mm Up to {maxl} × {maxw} mm · minimum {min} mm Length between {min} and {max} mm. Width between {min} and {max} mm.

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
SUS
Contact Us
Download PDF data sheet

Specifications

Length 4000
Weight 0.67 kg/m
Material Anodised extruded aluminium
Tags
Tags
SUS

Two things: it carries labels, tags and small-parts holders, and it acts as a support for trays and boxes. By moving the pipe on the uprights you adjust the height of the support.

Over a 1000 mm span, with the load at mid-span and 5 mm of deflection, it takes 507 N with the flange horizontal and 566 N with the flange vertical: more than twice the standard pipe, which takes 195 N.

The F35 has the narrower flange, is slightly stiffer and is also used as a support; the F50 has the wider flange, handy for signs and large small-parts holders. Pipe and connectors are the same.

Both inner and outer GF-N series connectors. When you order, tell us which way the flange should face: we will prepare cuts and joint positions accordingly.

Yes, it is one of the typical uses: the F35 flange supports the tray and you adjust its height by moving the pipe on the uprights.

Yes, the GF-S F35 profile has a similar flange on a Ø 19 mm pipe and weighs 0.40 kg/m: it suits light structures and small workstations.

The standard GF-N profile is suitable for most uprights and cross members. If a cross member is long or loaded use the GF-N W fitted upright (about 10 times stiffer), or the T (about 1.5 times) or the Hard (about 1.7 times, also for joints that take impacts), which have the same diameter. To fix plate castors, panels or rollers with T-nuts choose the profile with C10 slot; F35 and F50 have a flat flange for labels, small parts holders and supports. The sliding profile has a smooth surface for sliding parts and boxes, the round roller profile becomes a roller with the pin connectors, LS and LS with S slot carry a linear slide and the linear guide profile is the track for the linear rollers.

The GF-N Ø 28 is the standard for workstations, flow racks and trolleys. The GF-S Ø 19 weighs about half as much (0.20 kg/m versus 0.37) and is for light frames, dividers, guards and small mechanisms. The GF-G Ø 43 is for uprights and cross members that have to carry a lot: over a 1000 mm span it supports 851 N at the centre versus 195 N for the GF-N, for the same deflection. It is often worth mixing them, for example GF-G uprights and GF-N cross members joined by mixed connectors.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
