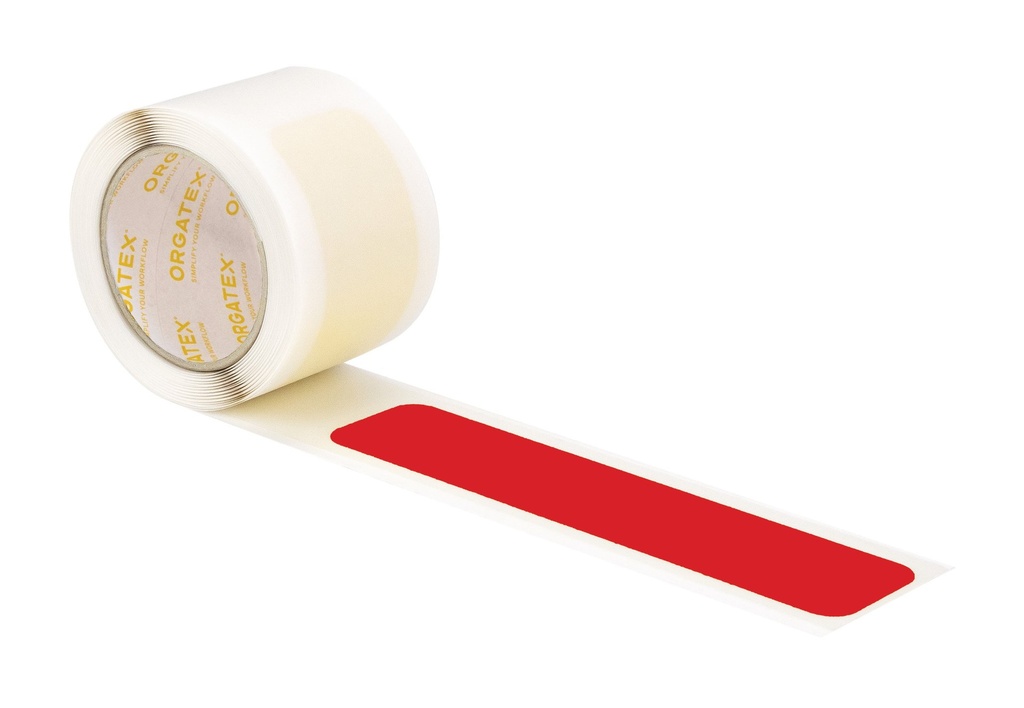

LongLife - Symbols on a Roll
https://leanproducts.eu/shop/longlife-symbols-on-a-roll-1996 https://leanproducts.eu/web/image/product.template/1996/image_1920?unique=1f76137LongLife Standard - Rounded Symbols are adhesive PVC floor marking symbols resistant to mechanical stress and machine washing. Available in 9 colors and 5 shapes (T-Shape, L-Shape, Longitudinal, Cross, Point), they feature rounded edges—unlike standard STD symbols—reducing the risk of edge lifting over time. Suitable for floor delineation and visual management in production and logistics environments. Sold in packs of 50 pcs.
Documents
ORGATEX LongLife · Strips and dots on a roll
Floor marking strips and dots on a roll: dashed and dotted lines without measuring
Pre-cut pieces already spaced on a 25 m roll: unroll and apply them straight onto the floor by removing the liner. The 50 × 220 or 75 × 220 mm strips create regular dashed lines, the 50 or 75 mm dots create dotted lines, with no measuring or cutting. For smooth indoor industrial floors.
Which traffic: LongLife (Standard) line
Thickness 0.48 mmMaterial PVC filmOperating temperature -20/+70 °CApplication temperature 18–25 °C
Compare all lines →Why choose it
Faster application
Compared with single pieces there is no need to measure and align each element: unroll, apply and move on to the next section.
Always the same spacing
Strips and dots are already correctly spaced: uniform lines even over long distances.
Lines you can cross
A dashed line marks a boundary but can be crossed: useful where vehicles and people move between areas.
Quick replacement
If a section wears, you replace just that piece without redoing the whole line; less waste than cutting from tape.
Choose it if…
- you need long dashed or dotted lines with regular spacing
- you want to mark large areas quickly without measuring each piece
- you need a line that can be crossed
- the floor is smooth and clean, indoors (concrete, epoxy, stone, metal)
Choose another solution if…
- if you need to mark corners and intersections of individual pallet locations LongLife Standard - Symbols →
- if you need a continuous line LongLife Standard - Roll →
- if forklifts turn on the spot over the marking LongLife Vector - Symbols →
- if the floor is rough or textured LongLife Rough Ground - Roll →
Not sure? Use the selection guide →
Two formats on the roll
Strips 50 × 220 or 75 × 220 mm
52 strips per roll with a 260 mm gap between them: dashed lines to separate areas, internal aisles and storage zones.
Dots Ø 50 or 75 mm
138 dots of 50 mm with a 130 mm gap, or 92 dots of 75 mm with a 195 mm gap: dotted lines and reference points on the floor.
ORGATEX recommends them for segmented marking, dashed lines in production and quick replacement of worn parts. Spacing tolerance ± 2 mm.
Technical data
| Color | Red, White, Light Blue, Yellow, Green, Black, Dark Blue, Orange, Light Grey |
| Shape | Longitudinal Marking, Point |
| Width | 50 mm, 75 mm |
| Pack | 25 m |
25 m roll. Strips 50 × 220 or 75 × 220 mm: 52 per roll, 260 mm gap between strips. Dots Ø 50 mm: 138 per roll, 130 mm gap; dots Ø 75 mm: 92 per roll, 195 mm gap (tolerance ± 2 mm). 9 colours.
Other formats in the LongLife (Standard) line
Need long dashed lines?
Tell us how many metres of line you need and at what spacing: we will calculate the rolls needed and recommend the format.
Specifications
| Color | Red |
| Shape | Longitudinal Marking |
| Width | 50 mm |
| Pack | 25 m |
| Tags | |
|---|---|
| Tags |
Orgatex
|
Each roll is 25 m long and holds 52 strips (50 × 220 or 75 × 220 mm), or 138 dots of 50 mm or 92 dots of 75 mm, already spaced.
Unroll it on the clean floor and apply the pieces directly by removing the liner: the spacing is already set, so there is no measuring.
When the line should be dashed or dotted: it marks the boundary but can be crossed, it is quicker to apply than many single pieces, and a worn section can be replaced on its own.
In Italy, Legislative Decree 81/08 (Annex XXVIII) requires that, where the use of the premises makes it necessary, vehicle traffic routes are marked with continuous lines in a clearly visible colour, preferably white or yellow depending on the floor, and that obstacles and danger points are marked with yellow/black or red/white bands angled at about 45°. Signs follow Annex XXIV: red for prohibitions, yellow for warnings, blue for mandatory actions, green for escape and first aid. Other colours (for example blue for raw materials, green for finished goods, red for scrap) are not set by law: they are an internal code to define and apply consistently.
The floor must be even, clean and free of dust, oil and grease. First clean thoroughly, then degrease the application strip with LongLife Cleaner. Remove old markings with the scraper and adhesive residue with LongLife Remover. On critical surfaces, such as porous or dusty concrete, LongLife Primer increases adhesion; outdoors it is always required.
Yes. According to ORGATEX, LongLife markings can be removed without residue using LongLife Remover. Markings are lifted with the LongLife scraper, 1200 mm long so you can work standing up, with a 125 mm blade and 3 spare blades; adhesive residue is dissolved with the Remover. On delicate floors test it in a hidden spot first.
Adhesive marking has no drying time: tapes and symbols are applied without chalk lines or special equipment and the area can be used straight away (the adhesive bonds fully in about 12 hours). When the layout changes it is removed without residue with LongLife Remover, and colours stay standard and consistent in repeat orders. Choose the line by traffic and floor: if in doubt, we will recommend it.
Yes: LongLife tapes and symbols are stated to be resistant to abrasion and washing; for the symbols machine washing is explicitly declared too. After application it is best to wait the roughly 12 hours the adhesive needs to bond before the first machine wash.
Yes, on request. ORGATEX makes LongLife Individuell tape in 50, 75 or 100 mm with custom colours, symbols or QR codes, and custom shapes in any form, size, colour and material: also with anti-slip surfaces, adhesives for rough floors or photoluminescent materials. Send us the drawing and quantities: we will prepare a quote with delivery times.
Yes. Send us a floor plan or a few photos of the areas to be marked or made safe and tell us how they are used (traffic, vehicles, floor, stairs, exits): we will recommend the right products, with colours, formats and quantities. For larger sites or special situations we can consider a site visit on request.
