LongLife Vector™ floor marking shapes

ORGATEX LongLife Vector™ · Shapes for manoeuvring areas

Vector™ floor marking shapes: T, L, straight and square pieces that withstand forklifts turning on the spot

LongLife shapes in the Vector™ line, developed for the most demanding areas: where forklifts steer and turn on the spot, high shear and torsional forces fray and lift ordinary floor marking. For pallet locations, intersections and manoeuvring areas on smooth industrial floors.

For forklifts turning on the spot4 shapes, 3 widths9 colours50 pieces per packManoeuvring areas and intersections

Vector™ floor marking shapes: T, L, straight and square pieces that withstand forklifts turning on the spot

4shapes

50–100 mmwidths

9colours

50pieces per pack

30–50 mmgap between pallet and shapes

Which traffic: Vector™ line

Pedestrians

Manual and electric pallet trucks

Forklifts

Heavy forklifts

Forklifts turning on the spot

Thickness 0.2 mmMaterial polyesterOperating temperature 0/+90 °CApplication temperature ≥ 12 °C

Compare all lines →

Why choose it

Withstand turning forklifts

Designed for the shear and torsional forces of wheels steering on the spot, where ordinary marking frays or lifts.

Intersections and manoeuvring areas

For areas with frequent forklift movements: intersections, manoeuvring zones, busy aisles.

Pre-cut, no waste

T, L, straight and square pieces ready to apply: precise corners and intersections without cutting tape.

Combine with Standard

Same shapes and sizes as LongLife Standard: use Vector™ in critical zones and Standard in the rest of the warehouse.

Choose it if…

forklifts steer or turn on the spot over the marking
you need to mark intersections, manoeuvring areas and aisles with frequent forklift movements
the floor is smooth, indoors (concrete, epoxy)
you need T, L, straight and square pieces from 50 to 100 mm

Choose another solution if…

if heavy forklifts or very high loads pass LongLife Heavy Duty - Symbols →
if traffic is normal and you want the most economical solution LongLife Standard - Symbols →
if the marking goes into a cold store, below 0 °C LongLife Cold Performance - Symbols →
if you need 90 mm rounded edges, dots and crosses LongLife Vector - Rounded Symbols →

Not sure? Use the selection guide →

Which piece goes where

Four shapes, the same as Standard, in the same 9 colours:

L piece

Corners of pallet locations in zones with the most forklift manoeuvring. 50 or 75 mm wide.

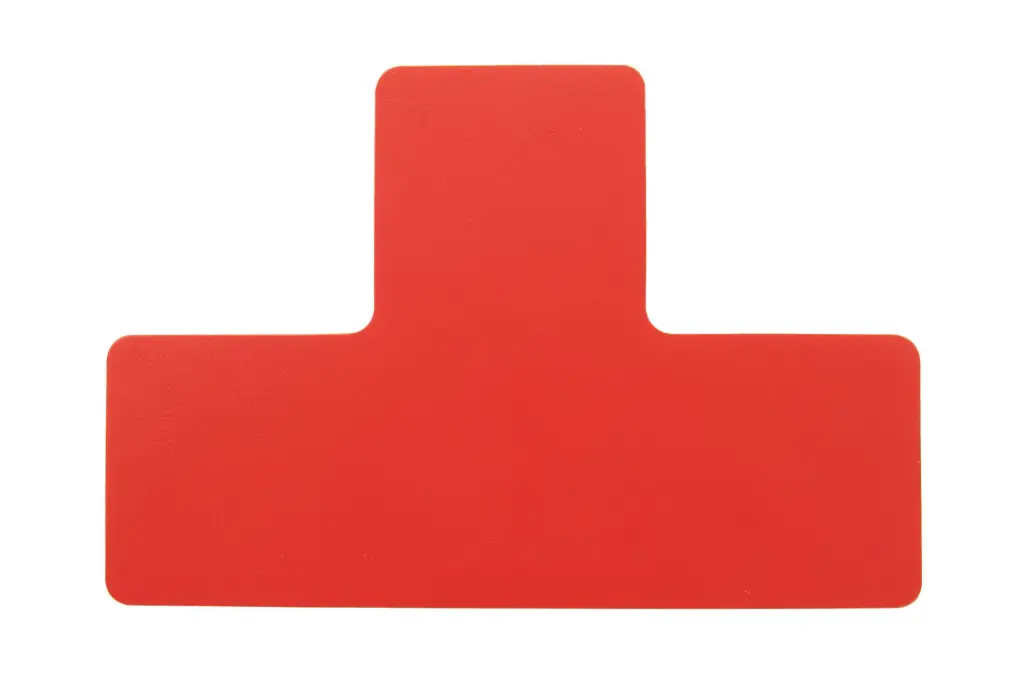

T piece

Shared sides between adjacent locations and line junctions at intersections. 50 or 75 mm.

Straight piece

Long sides and dashed lines in manoeuvring areas. 50 × 250, 75 × 350 or 100 × 500 mm.

Square

A precise point on the floor, for example the position of a container or equipment. 50, 75 or 100 mm.

ORGATEX recommends Standard shapes for normal to increased loads and Vector™ for areas with high shear and torsional forces: manoeuvring areas and intersections.

Technical data

Pack	50 pcs
Color	Red, White, Light Blue, Yellow, Green, Black, Dark Blue, Orange, Light Grey
Width	50 mm, 75 mm, 100 mm
Shape	T-Shape, L-Shape, Longitudinal Marking, Squared Shape

T and L pieces: 50 or 75 mm wide. Straight piece: 50 × 250, 75 × 350 or 100 × 500 mm. Square: 50, 75 or 100 mm. Pack of 50 pieces per shape, size and colour. For smooth, clean indoor industrial floors.

Other formats in the Vector™ line

LongLife Vector - Roll

LongLife Vector - Rounded Symbols

Accessories and related products

LongLife Standard - Protective screensFloor location code, scanner-readable

LongLife - Pressure RollerEven pressure when applying

LongLife - Remover, Cleaner, Primer & Edge SealingClean floor before application

Any other questions?Read the 11 frequently asked questions →

Is your floor marking wearing out fast?

Send us a few photos of the damaged marking and the traffic in the area: we will tell you whether you need Vector™, Heavy Duty or whether Standard is enough.

Request a quote Call +39 0434 572757

Specifications

Pack	50 pcs
Color	Red
Width	100 mm
Shape	Squared Shape

Where forklifts turn on the spot or steer over the marking: intersections, manoeuvring areas, busy aisles. There, shear and torsional forces quickly damage ordinary shapes. For normal loads, Standard is enough.

Yes: T and L pieces in 50 and 75 mm, straight pieces 50 × 250, 75 × 350 and 100 × 500 mm, squares in 50, 75 and 100 mm, in 9 colours and packs of 50. You can combine them with Standard shapes in the same layout.

In the ORGATEX table the Vector™ line is rated for pedestrians, pallet trucks, forklifts and turning on the spot, not for heavy forklifts: for those there is the Heavy Duty line.

No: the Vector™ line works from 0 to +90 °C. Below freezing, use Cold Performance shapes, which can be applied down to -20 °C.

In Italy, Legislative Decree 81/08 (Annex XXVIII) requires that, where the use of the premises makes it necessary, vehicle traffic routes are marked with continuous lines in a clearly visible colour, preferably white or yellow depending on the floor, and that obstacles and danger points are marked with yellow/black or red/white bands angled at about 45°. Signs follow Annex XXIV: red for prohibitions, yellow for warnings, blue for mandatory actions, green for escape and first aid. Other colours (for example blue for raw materials, green for finished goods, red for scrap) are not set by law: they are an internal code to define and apply consistently.

The floor must be even, clean and free of dust, oil and grease. First clean thoroughly, then degrease the application strip with LongLife Cleaner. Remove old markings with the scraper and adhesive residue with LongLife Remover. On critical surfaces, such as porous or dusty concrete, LongLife Primer increases adhesion; outdoors it is always required.

Yes. According to ORGATEX, LongLife markings can be removed without residue using LongLife Remover. Markings are lifted with the LongLife scraper, 1200 mm long so you can work standing up, with a 125 mm blade and 3 spare blades; adhesive residue is dissolved with the Remover. On delicate floors test it in a hidden spot first.

Adhesive marking has no drying time: tapes and symbols are applied without chalk lines or special equipment and the area can be used straight away (the adhesive bonds fully in about 12 hours). When the layout changes it is removed without residue with LongLife Remover, and colours stay standard and consistent in repeat orders. Choose the line by traffic and floor: if in doubt, we will recommend it.

Yes, on request. ORGATEX makes LongLife Individuell tape in 50, 75 or 100 mm with custom colours, symbols or QR codes, and custom shapes in any form, size, colour and material: also with anti-slip surfaces, adhesives for rough floors or photoluminescent materials. Send us the drawing and quantities: we will prepare a quote with delivery times.

Yes. Send us a floor plan or a few photos of the areas to be marked or made safe and tell us how they are used (traffic, vehicles, floor, stairs, exits): we will recommend the right products, with colours, formats and quantities. For larger sites or special situations we can consider a site visit on request.

You can use pre-cut pieces – 45° and 90° corners (Standard), T and L pieces (Standard, Vector™, Heavy Duty, Cold Performance), crosses (Standard and Vector™ Rounded) – or cut the tape with the stainless steel LongLife cutting template, which guides 90° and 45° cuts on 50, 75 and 100 mm widths. For 10 pallet locations there is the marking kit (L corners, straight pieces and A4 windows); on uneven floors or outdoors, LongLife Modul L corners fixed with anchors. ORGATEX recommends not overlapping markings.
