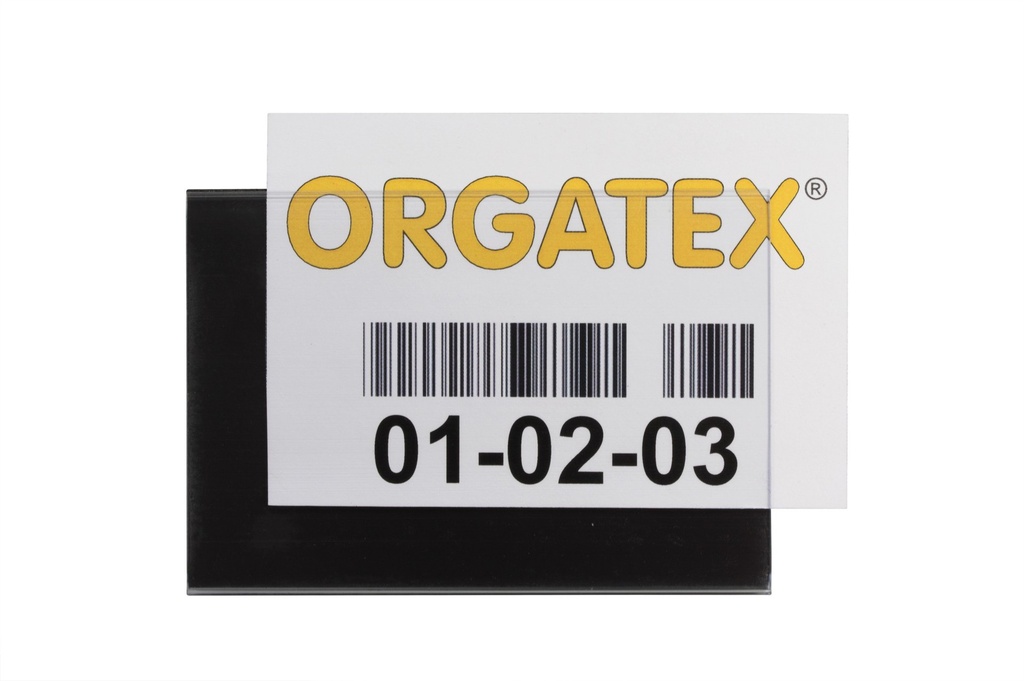

Standard magnetic label holder: transparent, open on 3 sides

The simplest magnetic label holder for shelving: a transparent PVC profile with a fully magnetic back that sticks to metal racks, shelves and containers and moves when the location changes. The insert slides in from the top, right or left, and the barcode is read through the cover. Formats from 20 × 75 to 67 × 200 mm, with matching pre-cut ET inserts.

Fully magnetic backOpen on 3 sidesScanner-readableUV-resistant20 × 75 to 67 × 200 mm

Standard magnetic label holder: transparent, open on 3 sides

20–67 mmheights

75–200 mmwidths

3open sides for the insert

100%magnetic surface on the back

Why choose it

Sticks and moves in seconds

The back is fully magnetic: it holds on flat ferrous surfaces and is repositioned without tools when the location changes.

Insert from 3 sides

The insert slides in from the top, right or left; even inserts larger than the standard size can be used.

Protected and readable

The transparent PVC shields the label from dust and dirt; barcodes and QR codes are read without removing it.

An insert for every format

Every format in the ORGATEX catalogue has its own pre-cut ET insert, printed on an ordinary printer.

Choose it if…

you identify locations on metal racks or containers
items change and the label is moved or replaced often
you need a transparent label holder, without colour
you print barcode labels on card inserts

Choose another solution if…

if the surface is not metal or the location is fixed: adhesive version Self-Adhesive Label Holder Quick Label →
if you want to tell zones or item groups apart with a coloured edge Magnetic Label Holder Color →
if the label must be seen from afar or be up to 600 mm long Label Holder Mega →
if you apply printed adhesive labels directly and want to remove them without residue Magnetic anti-stick labels →

Not sure which one to choose? Use the Visual Management guide →

Technical data

Formats	20x75, 20x150, 38x100, 27x150, 38x150, 27x100, 38x75, 27x75, 20x100, 47x100, 47x75, 67x150, 47x150, 67x100, 67x200, 25x75, 25x100, 25x150, 50x100, 50x150
Pack	100 pcs

Choose the format (height × width in mm). Each format in the ORGATEX catalogue has its own ET insert: for example 20 × 100 → ET210, 27 × 100 → ET100, 38 × 100 → ET300, 47 × 100 → ET400, 67 × 100 → ET600. The magnet requires a flat ferrous surface.

Accessories and related products

Card InsertsPre-cut ET inserts to print

Magnetic Adhesive TapeSelf-adhesive magnetic base for wood, plastic and painted surfaces

Adhesive Metal TapeMetal tape: makes non-metal surfaces magnet-receptive

Magnetic "C" shape insert labelMagnetic C-profile on a roll, cut to length

Any other questions?Read the 9 frequently asked questions →

Relabelling a warehouse?

Tell us what you need to identify and on which surface: we will recommend the right label holder, format and inserts. For large quantities or recurring supplies we prepare a dedicated quote.

Request a quote Call +39 0434 572757

Specifications

Formats	20x100
Pack	100 pcs

Tags
Tags	Orgatex

Each format has its own pre-cut ET insert, the same size as the holder: 20 × 75 → ET190, 20 × 100 → ET210, 20 × 150 → ET220, 27 × 100 → ET100, 38 × 100 → ET300, 47 × 100 → ET400, 67 × 100 → ET600, 67 × 200 → ET670. They are printed on A4 sheets with an ordinary printer.

The holder is open on three sides: the insert slides in from the top, right or left and is changed without removing the holder from the rack. Inserts larger than the standard size can also be used.

In the ORGATEX catalogue they share the same formats and ET inserts. Standard has a fully magnetic back and moves on metal racks; Quick Label has a foam adhesive strip and is designed for fixed locations, also on non-metal surfaces.

The magnetic holder sticks to all iron and steel surfaces – shelves, cabinets, machines, metal mesh boxes and containers – does not slip and can be moved without tools. The self-adhesive holder is fixed with foam strips on metal, wood, plastic and glass, even if the surface is not perfectly flat, and holds even under strong vibration: it is the choice for positions that do not change. If the container has no suitable surface, use the hanging pocket with brackets or hooks. On non-metal surfaces you can also stick on the self-adhesive metal tape or magnetic tape and then use magnetic products.

For label holders, Kanban-Covers and Kanban sleeves there are pre-cut cards on A4 sheets with micro-perforation: they print on any printer and separate without scissors. On the Cardboard product page you will find Word and Excel templates for the formats. Magnetic Windows® and repositionable adhesive windows are written on with non-permanent markers; on writable magnetic labels, writing done with a water-based marker is wiped off with a damp cloth. Anti-Stick label holders serve as a base for printed adhesive labels, which then come off without residue.

It depends on the product. Repositionable adhesive windows have an adhesive frame that comes off without residue and can be reapplied many times on smooth surfaces such as glass, metal and plastic. On Anti-Stick label holders, with their siliconised surface, adhesive labels come off without residue and can be applied again and again. For pockets, Label Covers and label holders with foam adhesive ORGATEX does not state residue-free removal: if the position changes often, choose the magnetic versions, which move without leaving adhesive behind.

Quantities are ordered in packs: the number of pieces is shown in the «Pack» attribute of each product. Document pockets come in packs of 10; previously packs of 50 were shown, so for the same quantity order 5 packs. Label holders usually come in 50 or 100 pieces, KAN-Label and KLT-Snapper Kanban sleeves in 50; for Mega label holders and insert cards the number depends on the format.

First choose the look: clear label holders, or white ones such as Anti-Stick, have no colour coding; coloured ones distinguish zones, departments or product families. Then the fixing. If the location does not change, choose self-adhesive, for permanent identification: Quick Label, 40° angled, Anti-Stick, Flexschild and the self-adhesive Label Top, Label Plus and Mega stay on the shelf, and when the item changes only the insert is changed. If locations move or are reorganised, choose magnetic, for temporary identification: magnetic Standard, Color, Anti-Stick, «C» profile, Label Top, Label Plus and Mega or writable magnetic labels, which are moved without tools and without leaving adhesive; on non-metal shelving first stick on the BMS35 self-adhesive metal tape or the self-adhesive magnetic tape.

The price depends on format and quantity: request a quote and we will send you a tailored proposal, also for recurring supplies.
