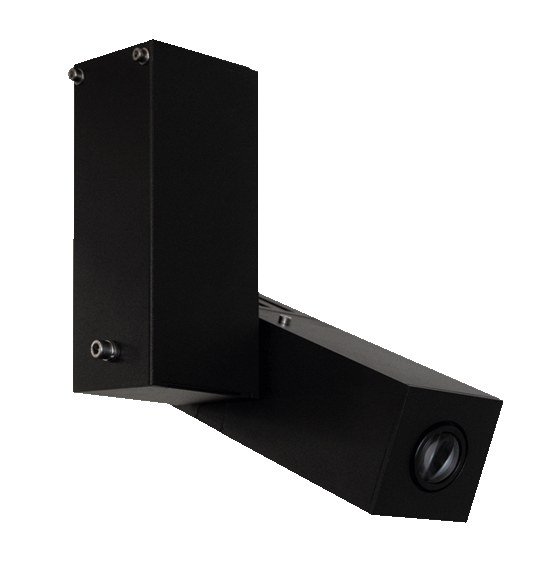

OX-Spot - LED Floor Sign Projector
LED projector that projects warning, information and wayfinding signs directly onto the hall floor. The projection does not wear, stays visible even in poor lighting and is changed by swapping the motif disc.
- OX-Spot 40: 40 W, 1,150 lm, for small areas and low to medium mounting heights; OX-Spot 80: 80 W, 4,730 lm, for large halls and high ceiling mounting
- Projection size: OX-Spot 40 from 0.2 m (at 1 m) to 3.5 m (at 15 m); OX-Spot 80 from 0.3 m (at 1 m) to 4.4 m (at 15 m)
- Color temperature 6300-6700 K, LED life approx. 35,000 h, active cooling
- Power supply 220-240 V AC, 50/60 Hz via IEC socket: a standard power outlet is enough, no electrician or IT infrastructure needed
- Powder-coated steel/aluminium housing; for dry indoor areas from -30 °C to +35 °C, protection class I, IP20, photobiological risk group RG-2 (IEC/EN 62471-5:2015)
- Focusing lens and screw-on motif holder; expandable with OX-Spot Control to activate the projection only when vehicles approach
