Light L40 roller kit for C10 slot GF-N

https://leanproducts.eu/web/image/product.template/665/image_1920?unique=e198dfe

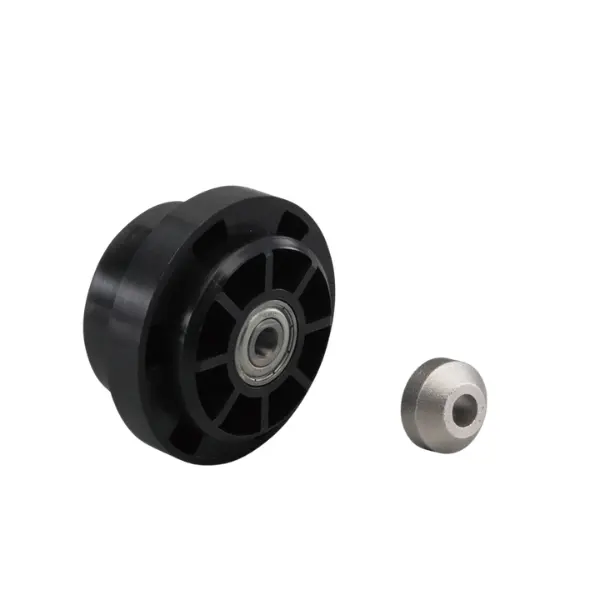

L40 polyamide roller on steel bearing, with stainless steel spacer, for the C10 slot of the GF-N pipe system: carries 150 N and is tightened to 6 N·m. For guides, slides and sliding tops. Screw and nut to be ordered separately.

Code: SFK-809
  • Material
  • Weight
  • Load Capacity
  • Tightening Torque

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
SUS
Contact Us
Download PDF data sheet

Specifications

Material Polyamide (PA), steel bearing, stainless steel spacer
Weight 69 g
Load Capacity 150 N/piece
Tightening Torque 6.0 N·m
Tags
Tags
SUS

Because the screw length depends on what you fix to the roller. Tell us which profile or plate you fit it on and we will tell you the right screw and nut.

The slot roller kit has a resin roller and already includes the M6 × 40 screw and T-nut. The light L40 kit has a polyamide roller, carries 150 N, is tightened to 6 N·m and leaves you free to choose the fasteners.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
