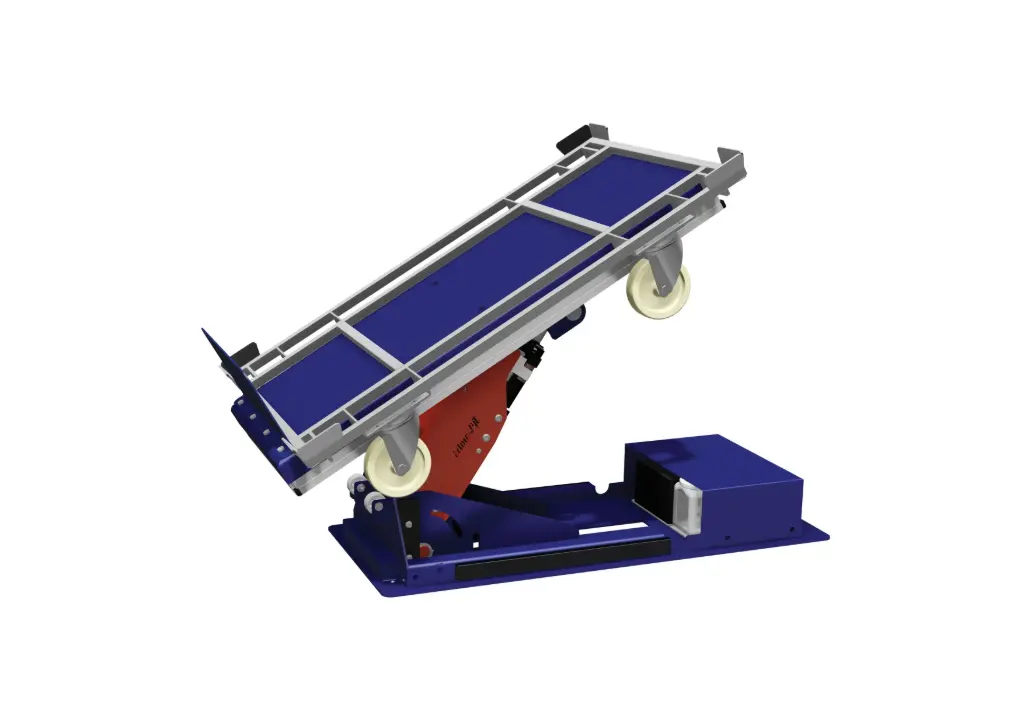

ARZ 750 Armlift for Logistic Train
The ARZ 750 is an armlift for logistic trains with a capacity of 750 kg, a lifting stroke of 550 mm and a minimum height of 220 mm, designed for direct integration into lineside flows. The 1300×550 mm work surface tilts on the short side with a range of +5°/-40°, making ergonomic unloading of containers easier. The internal power pack (0.55 kW in S3, 400V three-phase supply) and the 4-button control unit ensure a 15-second lifting cycle with no external infrastructure. CE certified to EN 1570-1.
Documents
Edmolift · Armlift for logistic trains
ARZ 750 Armlift for logistic trains: lifts and tilts up to 750 kg
Edmolift lifting arm developed with a major automotive manufacturer to handle materials without forklifts: the trolley arrives with the logistic train, the ARZ lifts it and tilts it from +5° to −40° towards the operator. Height and angle are adjusted manually or automatically.
Why choose it
Made for the milk run
The logistic train trolleys are unloaded at the workstation and go onto the ARZ, with no forklifts in the department.
Lifts and tilts
Height and tilt are adjusted continuously, manually or automatically, for each operator.
Compact
The compact design works with most standard logistic trains.
Two loading directions
The trolley goes onto the ARZ from two directions, depending on the load retention system; the modular design adapts to different needs.
Choose it if…
- you supply workstations with a logistic train (milk run) instead of forklifts
- the operator picks from the trolley and you want the load at the right height and tilt
- the load stays within 750 kg
Choose another solution if…

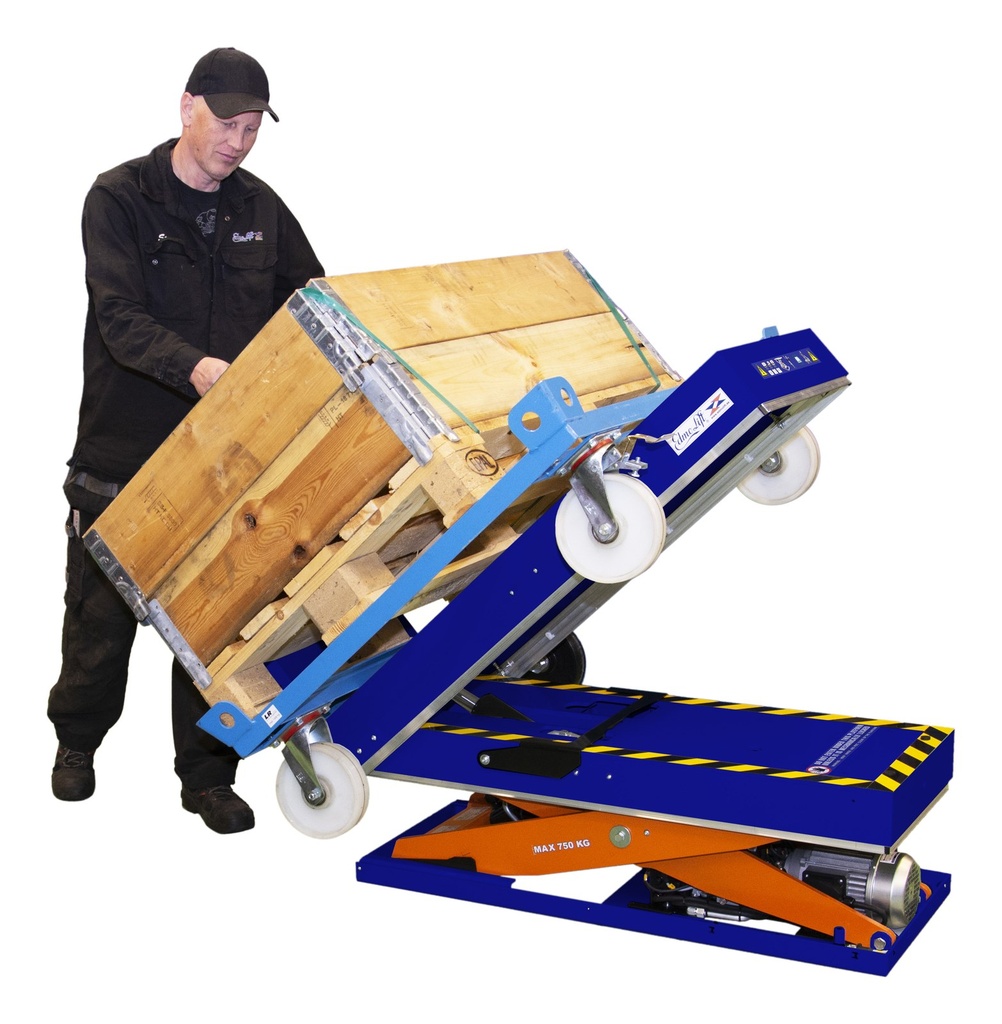

- if you need to lift vertically, with minimal footprint LTT 750 Logistic Train Arm →
- if you load pallets with a pallet truck or forklift ALT 750 ArmLift →
- if you want to load from the floor with a manual pallet truck ALT 1500U ArmLift →
- if you only need to lift the pallet, with access from three sides TSL 750 Pallet Lifter →
Not sure which one to choose? Use the lift table selection guide →
See it at work
Logistic train and Armlift
For logistic trains
Technical data
| Capacity Kg | 750 |
| Lift Stroke mm | 550 |
| Lowest Height mm | 220 |
| Max Height mm | 770 |
| Lift Table Length mm | 1300 |
| Lift Table Width mm | 550 |
| Tilt Side | Short Side |
| Tilt | +5° -40° |
| Load Restraint | Load Restraint H=230 |
| Lift Time sec. | 15 |
| Weight Kg | 260 |
| Control Unit | Standard Control Unit 4 Buttons |
| Power Pack | Internal |
| Power kW (S3) | 0.55 |
| Power Supply | Three-phase 400 V |
| Certificate | CE - EN 1570-1 |
Loaded by forklift or trolley.
Accessories and related products
Foot Control UC-60Foot control: hands free while pickingNeed help choosing?
Tell us the load weight, working heights and how the pallet arrives: we will recommend the model and accessories and prepare the quote with Edmolift data.
