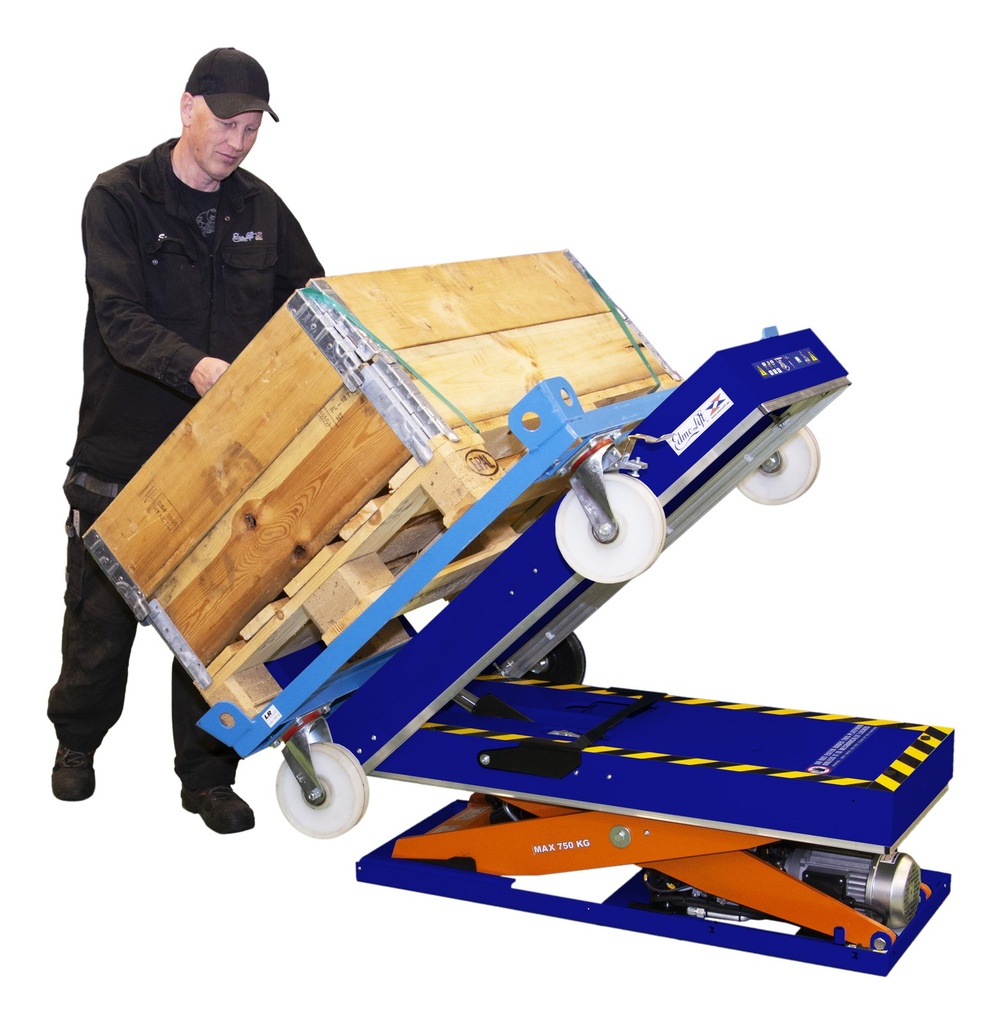

LTT 750 Logistic Train Arm
The LTT 750 Logistic Train Arm is a lift and tilt table designed for integration into logistic trains, with a capacity of 750 kg, a lifting stroke of 650 mm and a minimum height of 190 mm to make picking at floor level easier. The work surface (1200 × 550 mm) tilts up to -40° on the short side, with an H=230 mm load restraint system to ensure safety during handling. The hydraulic unit is internal, powered by 400V three-phase supply (0.95 kW in S3), and the lifting cycle is completed in 14 seconds via a standard 4-button control unit. CE certified to EN 1570-1.
Edmolift · Armlift for logistic trains

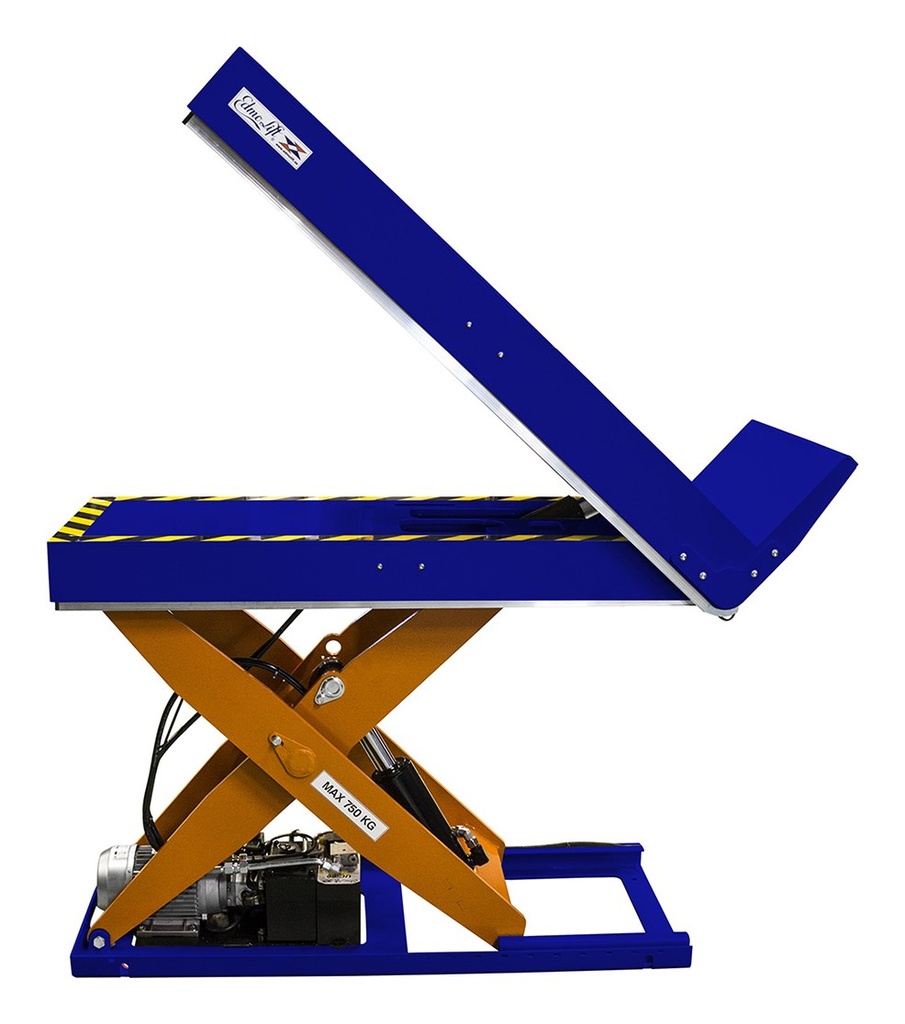

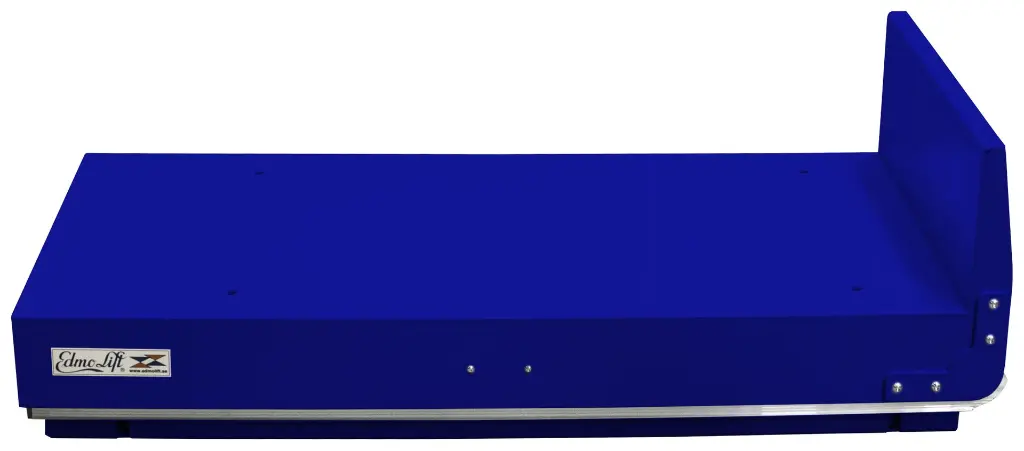

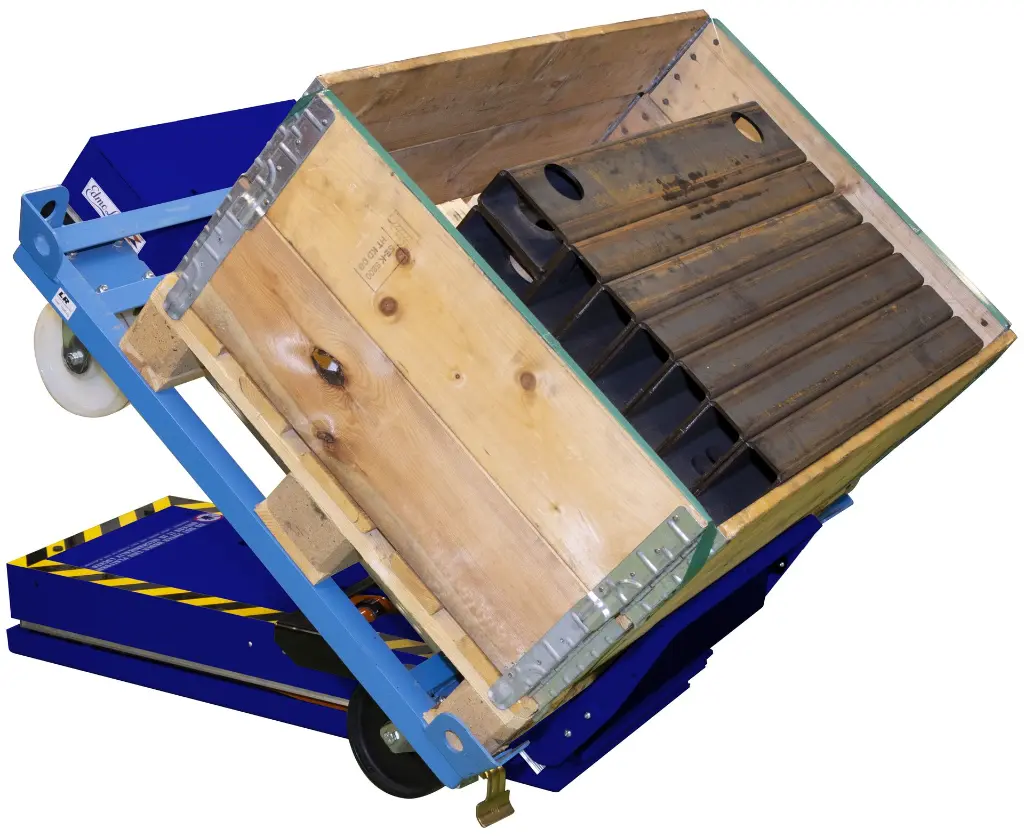

LTT 750: lifts and tilts the trolleys of the logistic train, up to 750 kg
Edmolift lifting arm for the milk run: it takes the trolley unloaded from the logistic train, lifts it vertically and tilts it up to −40° towards the operator. Only 190 mm high when closed, with a 550 mm wide platform, it works with almost all trolleys; power unit and control panel sit under the scissor mechanism.
Why choose it
Made for the milk run
Ergonomic tool for loading and unloading goods from trolleys, where logistic trains replace forklifts.
Rises vertically
No horizontal movement: it takes up minimal space in the line.
Compact
Hydraulic power unit and control panel are under the scissor mechanism: nothing in the way beside the workstation.
Ergonomic window
The operator adjusts height and tilt to suit the part and works without bending.
Choose it if…
- you supply workstations with a logistic train (milk run) instead of forklifts
- the operator picks from the trolley and you want the load at the right height and tilt
- the load stays within 750 kg
Choose another solution if…

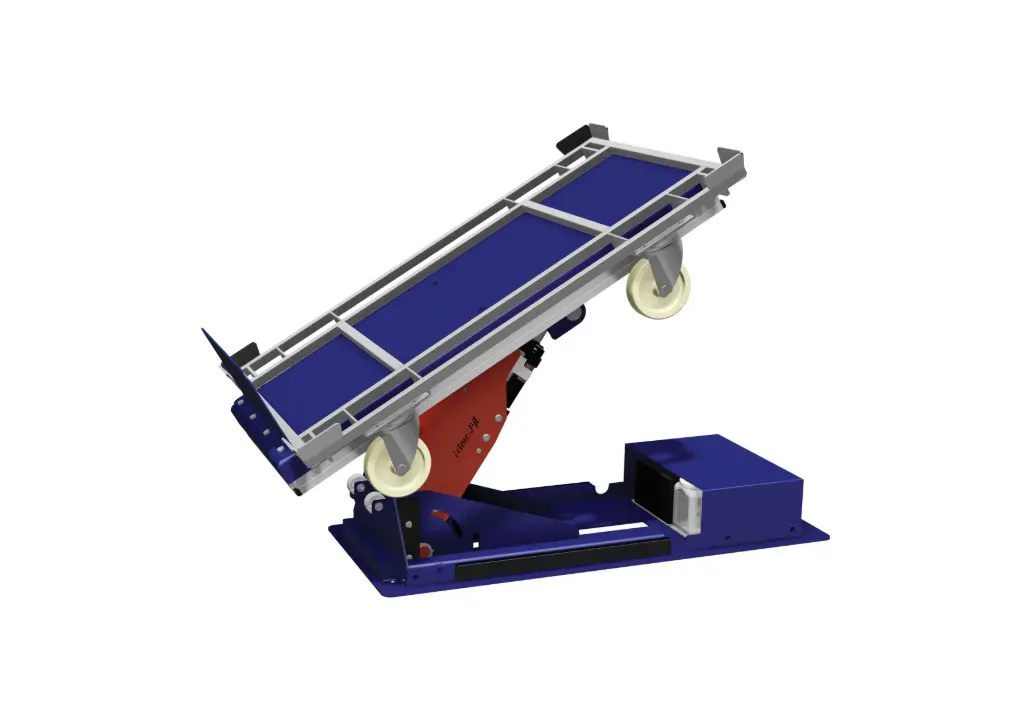

- if you also want +5° forward tilt ARZ 750 Armlift for Logistic Train →
- if you load pallets with a pallet truck or forklift ALT 750 ArmLift →
- if you want to load from the floor with a manual pallet truck ALT 1500U ArmLift →
- if you only need to lift the pallet, with access from three sides TSL 750 Pallet Lifter →
Not sure which one to choose? Use the lift table selection guide →
For logistic trains
Technical data
| Capacity Kg | 750 |
| Lift Stroke mm | 650 |
| Lowest Height mm | 190 |
| Max Height mm | 840 |
| Lift Table Length mm | 1200 |
| Lift Table Width mm | 550 |
| Tilt Side | Short Side |
| Tilt | -40° |
| Load Restraint | Load Restraint H=230 |
| Lift Time sec. | 14 |
| Weight Kg | 315 |
| Control Unit | Standard Control Unit 4 Buttons |
| Power Pack | Internal |
| Power kW (S3) | 0.95 |
| Power Supply | Three-phase 400 V |
| Certificate | CE - EN 1570-1 |
Loaded by forklift or trolley.
Images and applications
Accessories and related products

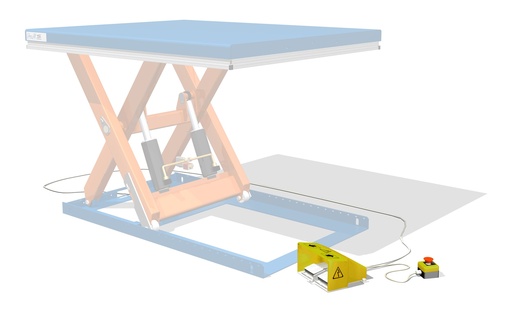

Foot Control UC-60Foot control: hands free while pickingNeed help choosing?
Tell us the load weight, working heights and how the pallet arrives: we will recommend the model and accessories and prepare the quote with Edmolift data.
