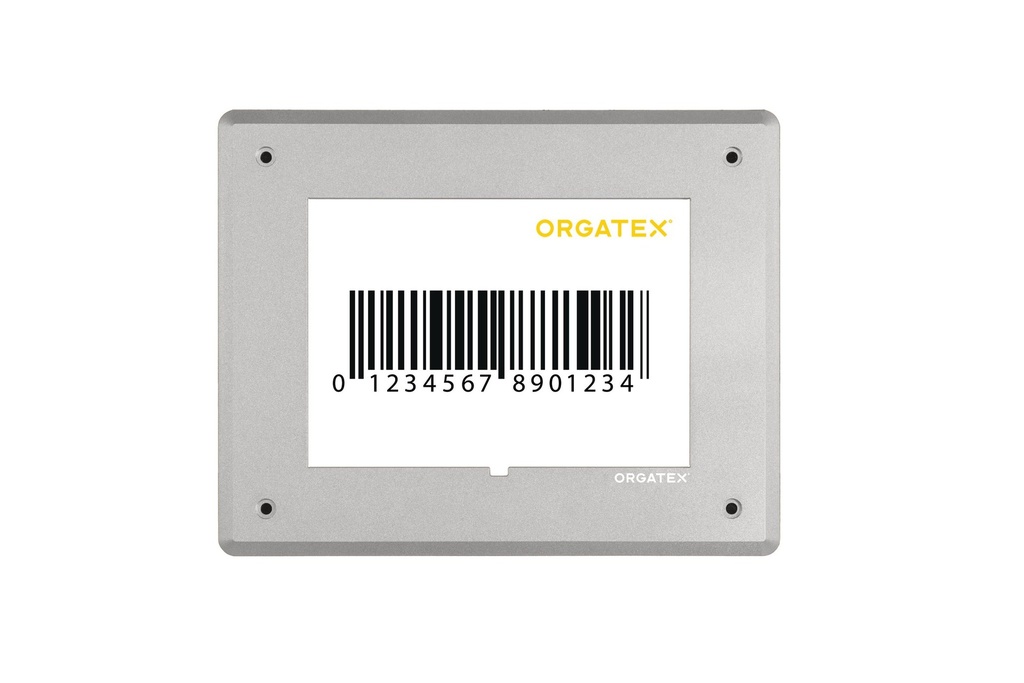

LongLife Heavy Duty - Aluminium Protective Screen
Floor document window for pallet locations with heavy forklift traffic: the document is protected by a rounded anodised aluminium frame and a removable acrylic glass pane. Designed for load-bearing concrete floors indoors, it is screwed down and withstands high mechanical loads.
- DIN A5 format, 250 x 310 x 3 mm (W x H x D)
- Robust anodised aluminium frame
- Removable acrylic glass pane
- High adhesive strength
- Hammer-in anchors included
ORGATEX LongLife Klarsicht Heavy Duty · Floor documents
Klarsicht Heavy Duty: aluminium protective window for heavily used pallet locations
At heavily used pallet locations, conventional floor windows are soon damaged. The LongLife Klarsicht Heavy Duty window protects the DIN A5 document with a rounded anodised aluminium frame and a removable acrylic glass pane; it is bonded with a high-strength adhesive and fixed with the hammer-in anchors supplied. Designed for load-bearing concrete floors indoors.
Why choose it
Built for heavy traffic
The aluminium frame and acrylic glass pane withstand high mechanical loads: floor information stays readable even with frequent forklift traffic.
Replaceable document
The acrylic pane can be removed even when the window is bonded: change the document without removing the window.
Bonded and anchored
High-strength acrylic adhesive plus hammer-in anchors included: the window stays in place on load-bearing concrete floors.
Anodised aluminium
A robust, rounded anodised aluminium frame, 3 mm thick, for DIN A5 documents.
Choose it if…
- heavily used pallet locations with intensive forklift traffic
- conventional adhesive windows wear out too quickly
- you need to change the document without removing the window
- load-bearing concrete floor, indoors
Choose another solution if…
- if traffic is normal and you need other formats, circles or arrows, with 14 border colours LongLife Standard - Protective screens →
- if the area is dusty or washed often LongLife Standard - Dirt-Repellent Protective Screens →
- if you work in a cold store LongLife Cold Performance - Protective Screens →
- if the floor is rough or textured (on request)
Not sure? Use the selection guide →
Where it is needed
Wherever floor documents must stay readable under high loads:
- Heavily used pallet locations: where conventional floor windows are soon damaged
- Intensive forklift traffic: floor information stays readable despite constant traffic
- Logistics with high loads: robust materials, aluminium and acrylic glass
- Changing documents: remove the pane and replace the A5 sheet
- Load-bearing concrete floors: bonded and fixed with anchors, indoors
DIN A5 document; outer size 310 × 250 mm, 3 mm thick.
How to apply it, in 3 steps
Prepare the floor
The floor must be dry, clean and free of dust, oil, grease and solvents; loose paint or coatings must be removed or consolidated.
View product →Bond and fix
Apply the window between 18 and 25 °C, press it straight away and fix it with the hammer-in anchors supplied.
Insert the document
Remove the acrylic glass pane, insert the A5 sheet and put the pane back; repeat to update it.
Technical data
| Pack | 2 pcs |
| Formats | A5 |
ORGATEX data: anodised aluminium and acrylic glass, acrylic adhesive, 3 mm thick, outer size 310 × 250 mm, for DIN A5 documents. Application between 18 and 25 °C. Pack of 2 pieces with hammer-in anchors.
