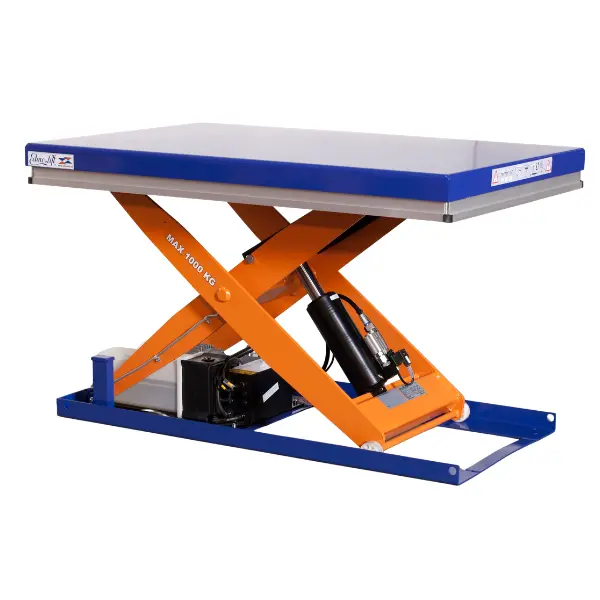

CL 1001 Single Scissor Lift Table

https://leanproducts.eu/web/image/product.template/11/image_1920?unique=ee41b60

The CL 1001 Single Scissor Lift Table is an industrial single-scissor lifting platform with a 1,000 kg capacity and an 820 mm lift stroke, designed to support ergonomic load handling in production environments. The 1,200 × 800 mm worktop reaches a minimum height of 180 mm, with a 15-second lift time delivered by an internal power pack rated at 0.95 kW (S3) on a three-phase 400V supply. Operation is managed via a standard 2-button control unit integrated into the internal power pack. The unit is CE certified in compliance with EN 1570-1.

2,416.80 € 2416.8 EUR 2,544.00 € 5.00 % OFF

Cod.: 36045
  • Lowest Height mm
  • Max Height mm
  • Scissor lift
  • Lift Time sec.
  • Peso Kg
  • Control Unit
  • Power Pack
  • Power kW (S3)
  • Power Supply
  • Certificate

This combination does not exist.

You have already submitted a query for this product today.
Prezzi Pubblici
Contact Us
Scarica scheda PDF

Specifications

Capacity Kg 1000
Lift Stroke mm 820
Lowest Height mm 180
Max Height mm 1000
Lift Table Lenght mm 1200
Lift Table Width mm 800
Scissor lift Single Scissor
Lift Time sec. 15
Peso Kg 180
Control Unit Standard Control Unit 2 Buttons
Power Pack Internal
Power kW (S3) 0,95
Power Supply Triphase 400V
Certificate CE - EN 1570-1
