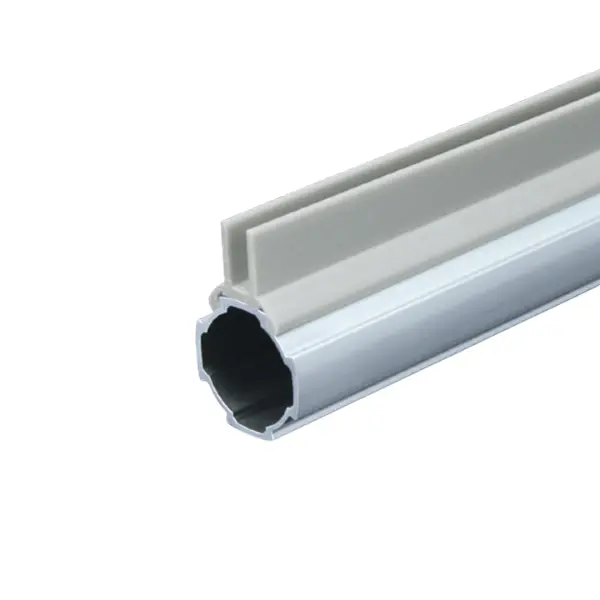

Panel holder profile for 5 mm panels GF-N/G

https://leanproducts.eu/web/image/product.template/274/image_1920?unique=2e4831c

Polypropylene profile that fixes 5 mm panels to the Green Frame pipe along the whole edge: close the sides, bases and backs of shelving and trolleys. 2000 mm bar or cut to length, 0.083 kg/m.

Read more ↓
Code: GFA-802G
Length: 2,000
  • Materiale
  • Length
  • Weight

Cut dimensions

mm
0Full bar 2000 mm
Calculating price…
Full bar Full sheet of the sheet From {min} to {max} mm · full bar {max} mm Up to {maxl} × {maxw} mm · minimum {min} mm Length between {min} and {max} mm. Width between {min} and {max} mm.

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
SUS
Contact Us
Request a quote
We reply within 1 working day
Download PDF data sheet

Specifications

Materiale Polypropylene (PP)
Length 2000
Weight 0.083 kg/m
Tags
Tags
SUS

No, it is made for 5 mm panels. For 3 mm panels use the GFA-803G; for other thicknesses ask us for the right solution.

Add up the sides of the panel you want to fix to the pipe. We prepare the pieces already cut to the length of each side, so you have no offcuts.

Yes. Green Frame profiles can be ordered as 4000 mm bars or cut to the length you need: we do the cutting ourselves, in our workshop. Give us the dimensions of the pieces or send us a sketch of the structure and we will prepare the cutting list.

Yes. The standard series is GF-N (Ø 28 mm pipe); GF-S (Ø 19 mm) is lighter and more compact, GF-G (Ø 43 mm) is for stiffer structures. There are mixed connectors that join pipes from different series, for example a Ø 19 or Ø 43 pipe to a Ø 28 pipe, so you use the right diameter at every point of the structure.

No. The connectors are fixed to the pipe with hex socket screws: a hex key is all you need. Loosen the screw, insert the pipe, bring it into position and tighten. No welding, drilling or painting.

Yes, it is the strength of the pipe system: loosen the connectors, move or replace the pipes and retighten. You can raise a shelf, extend a workbench or reuse the components in another structure when the process changes, with continuous improvement in mind.

Yes. We can design the structure (workstation, flow rack, trolley, line-side supermarket) with the load calculation and deliver it to you assembled or as a kit with the parts already cut and the list of components.

No. Profiles and connectors are in anodised aluminium: the surface resists corrosion and wear without painting and is easy to clean.

Yes. The range includes conductive components such as ESD inner end caps, ESD clips for electrical continuity between pipe and connector, and ESD inserts for levelling feet and castors. Tell us which EPA area you work in and we will tell you the components to use.
