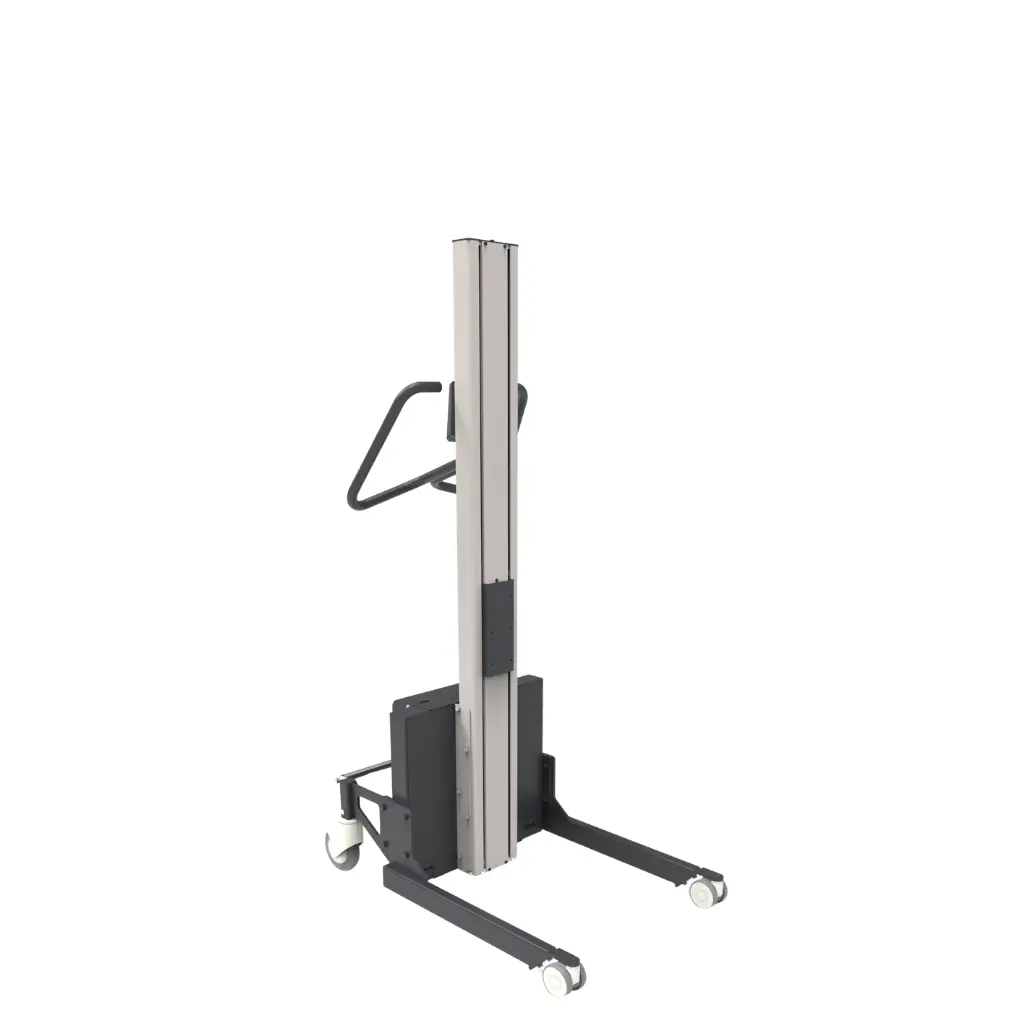

Edmolift WP 125 Electric Work Positioner 125 kg

Work Positioner

Edmolift WP 125 Electric Work Positioner 125 kg

The WP 125 lifts reels, containers and parts up to 125 kg in production, logistics, automotive and aerospace. Compact and easy to manoeuvre, it has an overload limiter, safety clutch and soft start. It is the smallest model that takes the electric grippers. The Edmolift WP 125 is a battery electric work positioner, used as a reel lifter and drum lifter.

Capacity 125 kg at 400 mmStroke up to 2050 mmElectric grippersSteel IP44 or stainless steel IP65

125 kgcapacity at 400 mm (110 kg with L mast)

2050 mmmaximum stroke

7.5 hfull charge

IP65stainless steel version

Why choose it

Safe

Overload limiter, safety clutch and soft start.

Electric tools

Electric grippers for reels and drums, with remote controls that clamp, tilt or rotate.

Many tools

Platforms, forks, booms, grippers and crane arms for reels, containers and parts.

Steel or stainless steel

Painted steel IP44 or 304L stainless steel IP65 for food and pharmaceutical use.

Choose it if…

the load reaches 125 kg (110 kg with L mast)
you want to use electric grippers with clamping, tilting or rotation
you need 500 or 650 mm legs and a central brake
you work in production, automotive, aerospace or logistics

Choose another model if…

if the load does not exceed 85 kg and manual tools are enough WP 85 →
if the load reaches 205 kg or you work several shifts WP 205 →

Not sure which one to choose? Use the Work Positioner guide →

Where it is used

For small and medium loads, with manual or electric tools:

Production and assembly: parts and components at the bench
Automotive and aerospace: loads to position in machines
Logistics: containers to and from the shelves
Reels: booms and grippers for 76 mm cores

See it at work

WP 125 with double boom

WP 125 with adjustable fork

WP 125 SS with swivel core gripper for reels

WP 125 SS with electric clamp

The base: choose the legs

Standard legs

500 or 650 mm long, 530 mm wide.

Central legs

500 mm long, narrow 146 mm base.

Technical data

Version	Steel, Stainless Steel
Max Load Kg	125
Lift Stroke mm	1220, 1600, 2050
Lifting Speed	120 mm/s
Legs	Central, Standard 500, Standard 650
Front Wheels	Ø 75 Double Swivelling
Rear Wheels	Ø 125 with Central Brake
Handle and Control Type	WPR-R1 Ergonomic Handle with remote control
Number of Cycles	80-150
Battery	2 AGM (24 V - 9 Ah)
Battery Charger	External 230 V 50-60Hz

Masts S, M and L: overall height 1560, 1940 or 2390 mm, stroke 1220, 1600 or 2050 mm; with the L mast the capacity drops to 110 kg. Trolley weight from 58 to 64 kg. With electric tools, 2 additional AGM batteries are required (WPR-O-0003 option). Capacity measured with the load’s centre of gravity at 400 mm from the mast.

Compatible tools and accessories

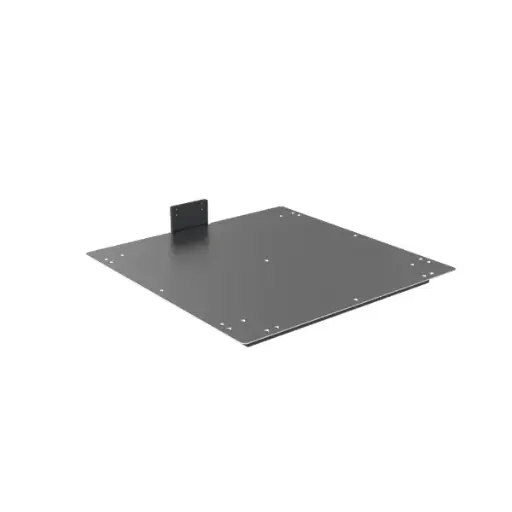

Steel Platform 85 kgUsable capacity 85 kg

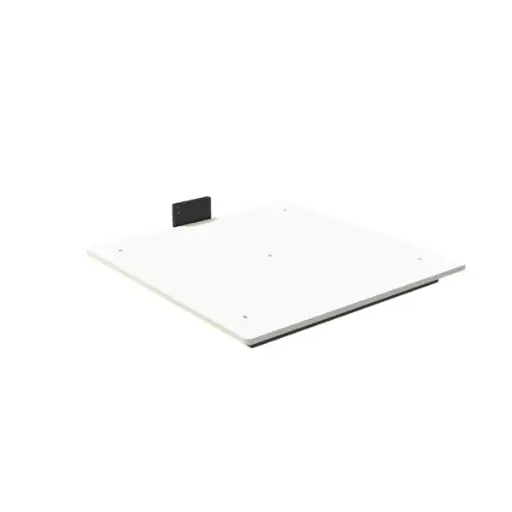

HDPE Platform 85 kgUsable capacity 85 kg

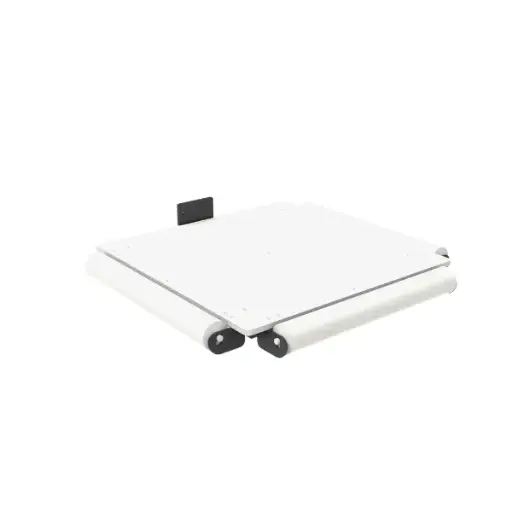

HDPE Platform with Rollers 85 kgUsable capacity 85 kg

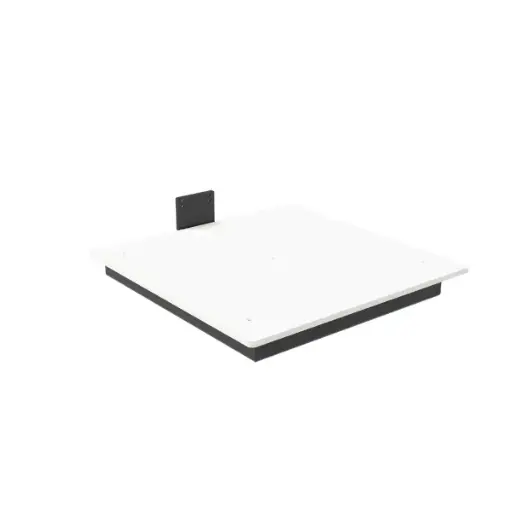

HDPE Platform 200 kgUsable capacity 110 kg

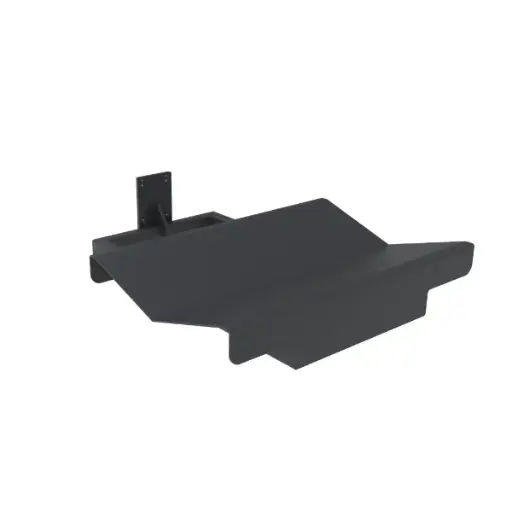

Wave platformUsable capacity 80 kg

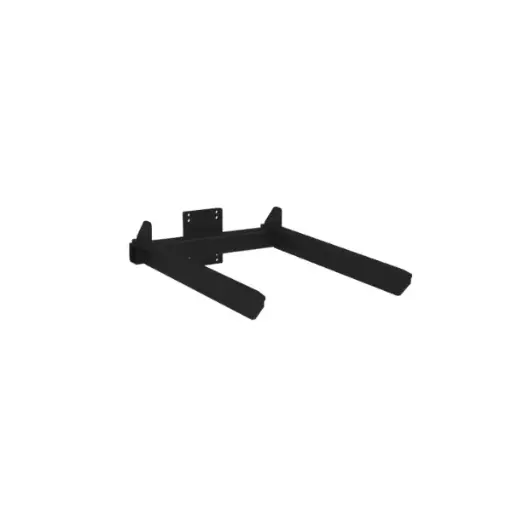

ForkUsable capacity 115 kg

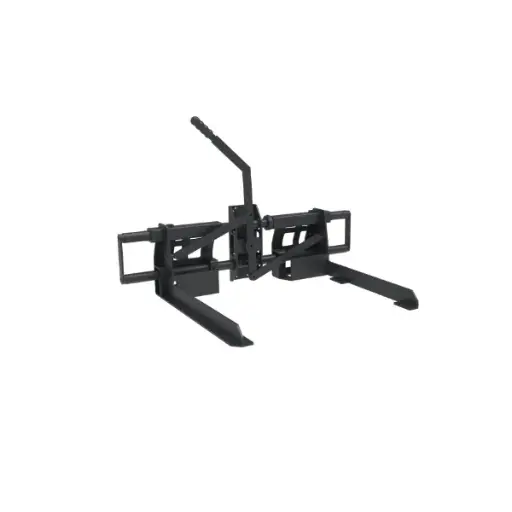

Symmetric adjustable fork 180 KgUsable capacity 110 kg

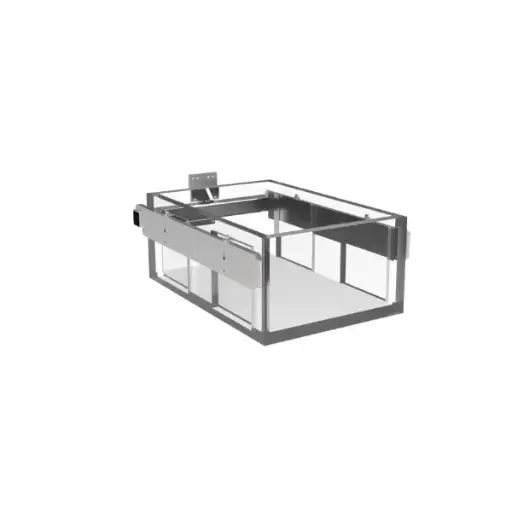

4 Cleat forksUsable capacity 100 kg

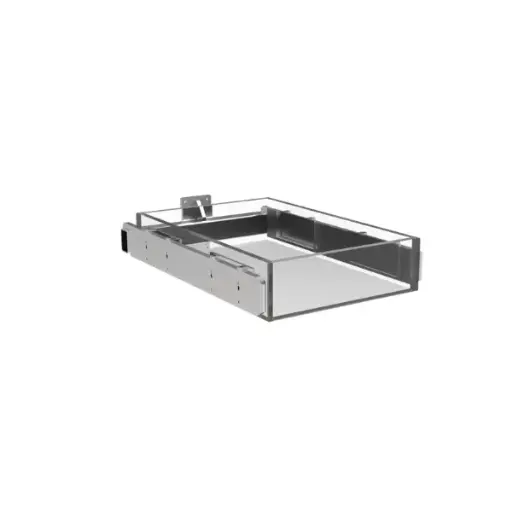

8 Cleat forksUsable capacity 100 kg

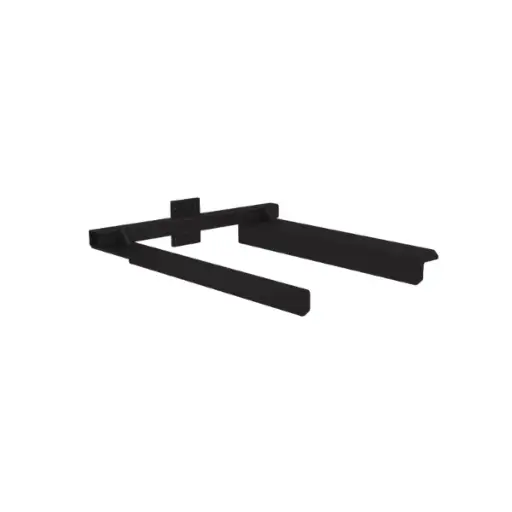

Legs covering forkUsable capacity 100 kg

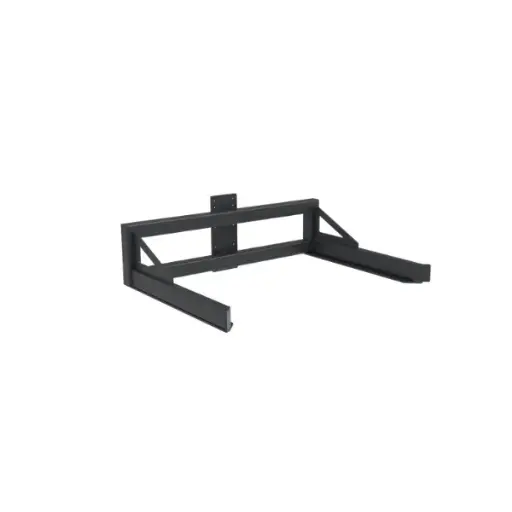

Fork for rolling tray for Eu std binsUsable capacity 110 kg

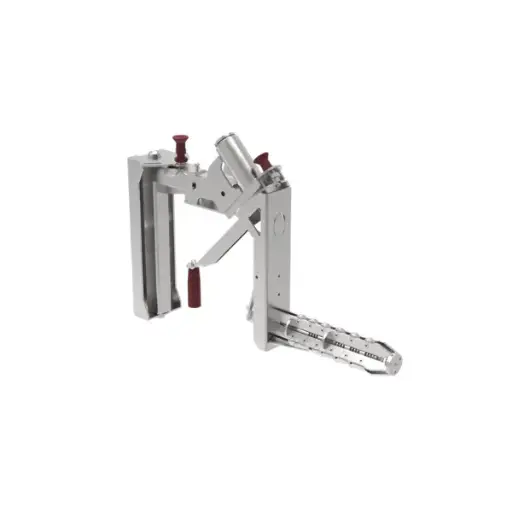

Manual core gripper with tilting 90° - 80 KgUsable capacity 80 kg

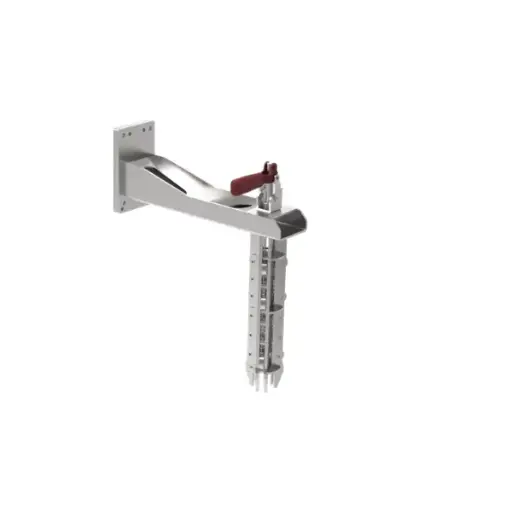

Vertical core gripper 80 kgUsable capacity 80 kg

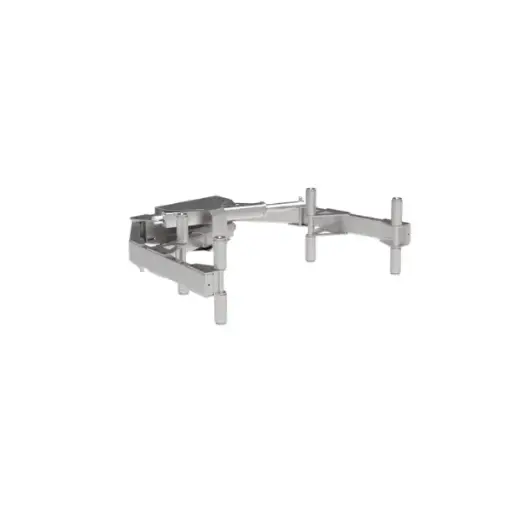

Electric clamp 100 KgUsable capacity 80 kg

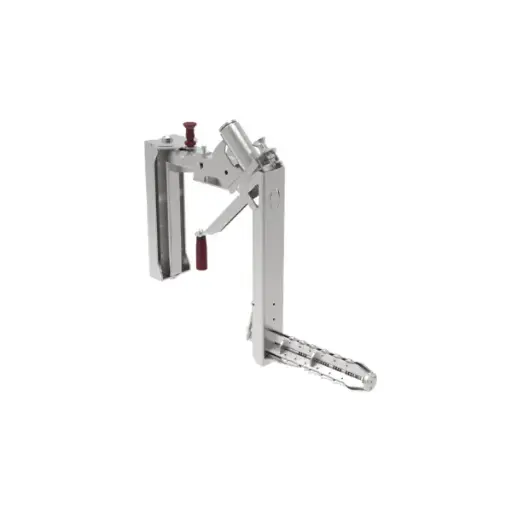

Manual core gripper with tilting 90° - 80 Kg - ExtendedUsable capacity 80 kg

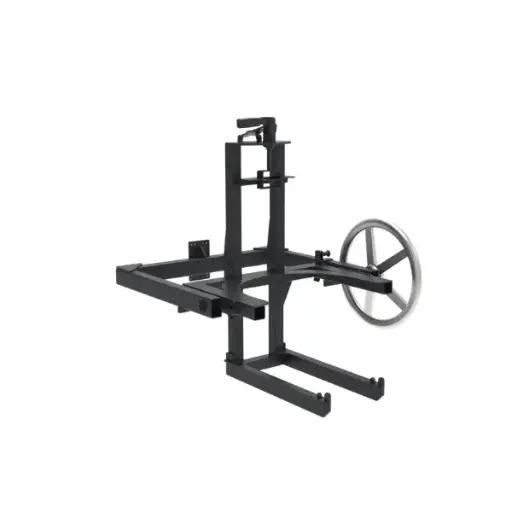

Manual front tilting gripper for drumsUsable capacity 80 kg

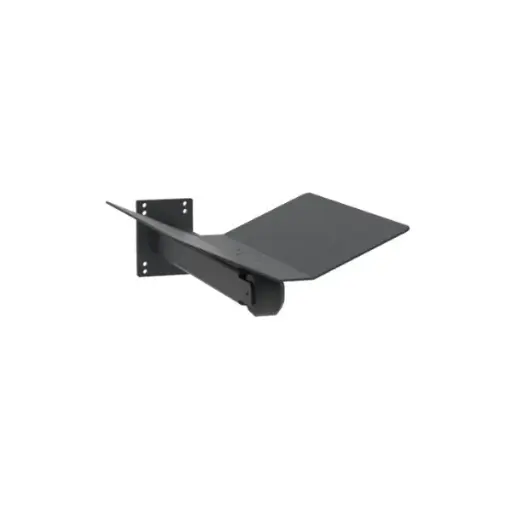

Boom with wheel + V-support 360°Usable capacity 80 kg

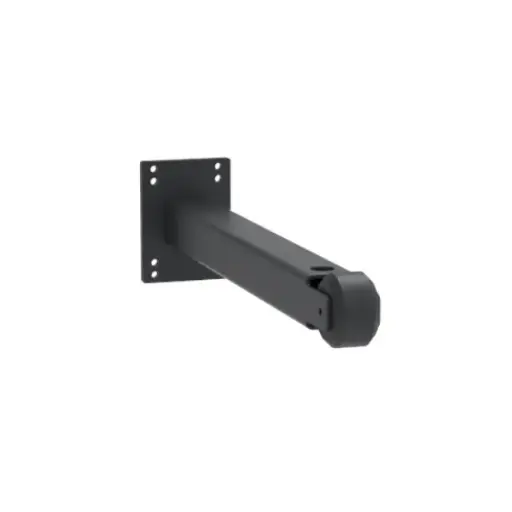

Boom with wheel for V supportUsable capacity 80 kg

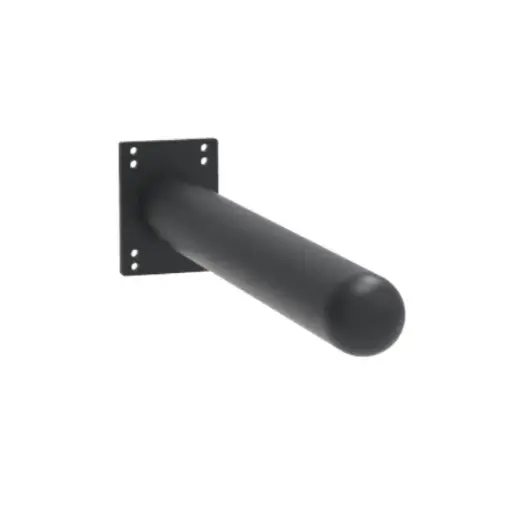

Boom tube Ø 60Usable capacity 120 kg

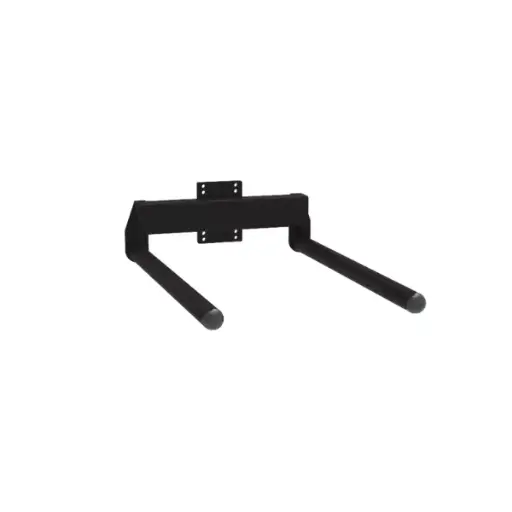

Double boom tube Ø 35Usable capacity 110 kg

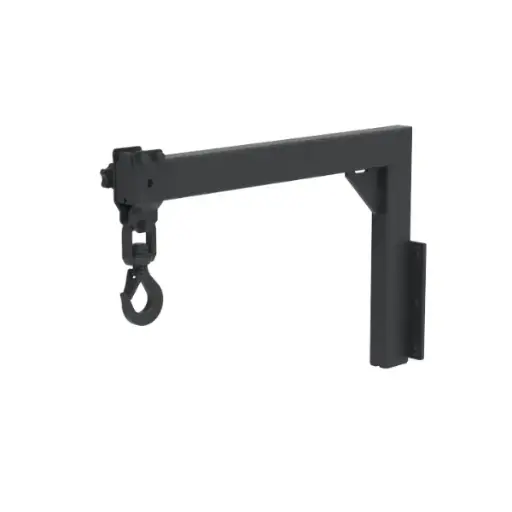

Crane armUsable capacity 115 kg

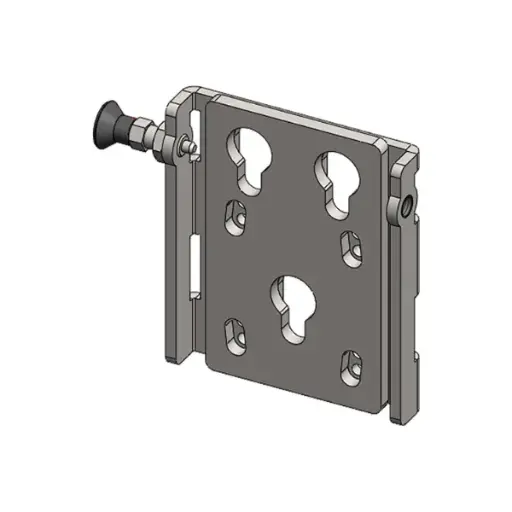

Quick change tooling light 125 KgQuick change of manual tools, without screws

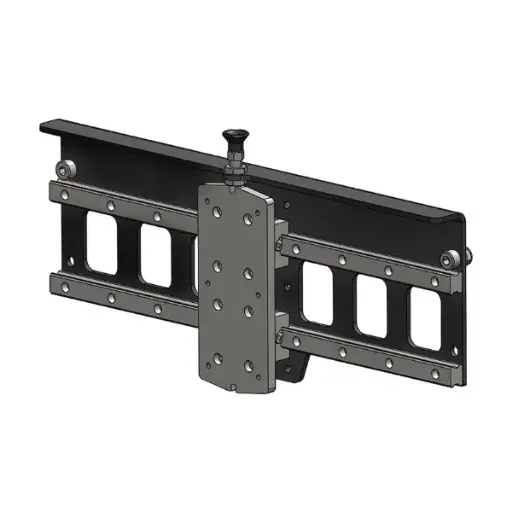

Lateral translatorMoves the tool sideways by ±200 mm

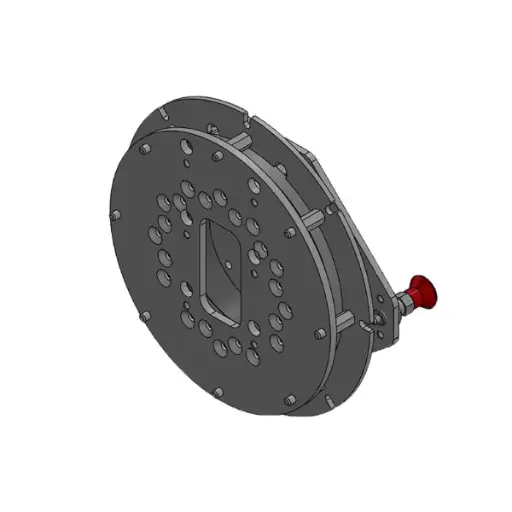

Manual rotation system 100 KgManual rotation of the tool, up to 100 kg

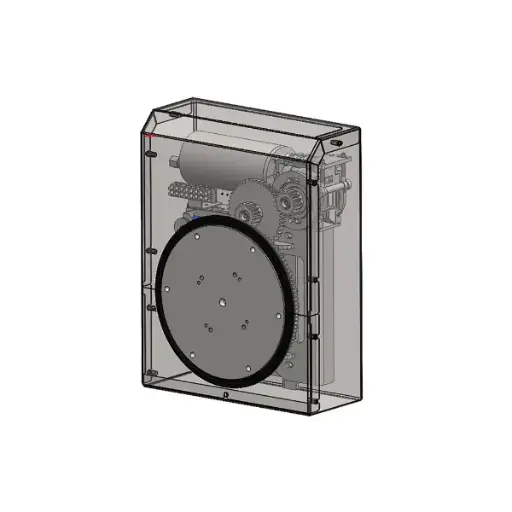

Electric rotation system 150 Kg360° electric rotation with 3 positions

Any other questions?Read the 12 frequently asked questions →

Which Work Positioner do you need?

Send us the weight, shape and heights of the load: we will recommend the model, mast, legs and tool.

Request a quote Call +39 0434 572757

Specifications

Model	WP 125S-S-500
Version	Steel
Max Load Kg	125
Lift Stroke mm	1220
Total Height mm	1560
Lifting Speed	120 mm/s
Legs	Standard 500
Legs Length mm	500
Legs Width mm	530
Front Wheels	Ø 75 Double Swivelling
Rear Wheels	Ø 125 with Central Brake
Handle and Control Type	WPR-R1 Ergonomic Handle with remote control
Number of Cycles	80-150
Battery	2 AGM (24 V - 9 Ah)
Battery Charger	External 230 V 50-60Hz
Weight Kg	58

125 kg with the S or M mast and 110 kg with the L mast, with the load’s centre of gravity 400 mm from the mast; the stroke is 1220, 1600 or 2050 mm. If the load reaches 205 kg or you work several shifts, there is the WP 205; if 85 kg and manual tools are enough, the WP 85.

The 2 standard AGM batteries (24 V – 9 Ah) charge to 100% in 7.5 hours with the external charger; the trolley must not be used while charging. Electric tools need 2 additional AGM batteries (WPR-O-0003); on request there are lithium batteries (WPR-O-0004), which charge faster, or a removable battery pack with charging station (WPR-O-0039).

Yes. Manual tools are changed in a few seconds with the quick change (WPR-A-0001-SS or WPR-A-0003-SS), without unscrewing them. For electric grippers the trolley must be ordered with the 1 or 2 additional electric functions option (WPR-O-0007 or WPR-O-0008), 650 mm legs, 2 additional AGM batteries and the remote control with the gripper functions: clamping, rotation or tilting.

There are two bases: standard legs 500 or 650 mm long and 530 mm wide, or central legs 500 mm long with a narrow 146 mm base, which let you get closer to benches and shelves. Electric grippers need the 650 mm legs.

It is pushed by hand using the ErgoControl handle: at the front it has double Ø 75 mm swivel wheels, at the rear Ø 125 mm wheels with a central brake, to be applied while lifting and loading. With a load it must be moved slowly and in the low position, on a level floor: the maximum slope is 5% fully loaded and 15% unloaded.

Among the documents you can download from this page: the user manual in Italian and English and the technical drawing. The wiring diagram is on page 24 of the manual, right after the spare parts list.

A work positioner: the battery-powered electric lifter that lifts, carries and positions the part at the push of a button, with the right tool for the load: platform, forks, boom, gripper or crane arm. Capacities range from 55 to 285 kg.

With a work positioner and the right tool: the boom goes into the core of the reel, the gripper clamps it from the outside, and there is also an electric gripper that turns it through 90°. For drums there is the manual front tilting gripper, which lifts and tilts them with a handwheel.

From four things: part weight, how you pick it up (which tool you need), stroke and working environment. The capacity applies with the centre of gravity 400 mm from the mast, tool included; the work positioner buying guide, with its 4-question selector, shows you the suitable models and tools.

Yes, in the stainless steel version: work positioner and tools in 304L stainless steel with IP 65 protection, from WP 55 to WP 285, for the food, pharmaceutical and chemical industries. Stainless units take tools in the SS version; the WP ONE comes in IP 44 steel only.

Overload protection stops lifting if the load is too heavy and the anti-crush system stops lowering if it meets an obstacle; there is also a reinforced toothed belt, shielded moving parts, soft start and stop and an emergency stop on the control unit. It must not be used to lift people.

Every 6 months the belt, fixing screws and batteries are checked; once a year the mechanical and electrical parts, by authorised staff. Charge the battery at least once or twice a week, even with occasional use, and every 6 months if the work positioner is not used.
