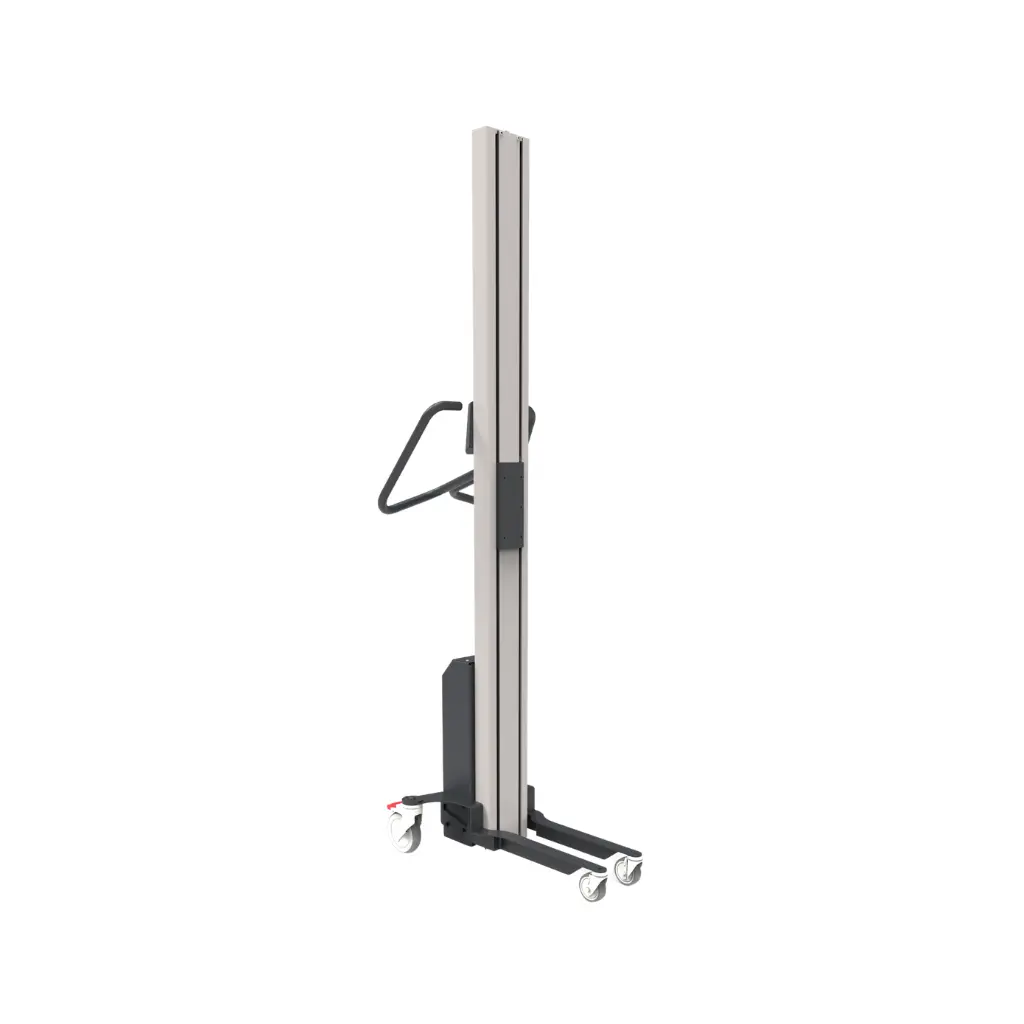

Edmolift WP 85 Electric Work Positioner 85 kg

The WP 85 lifts, moves and picks up reels, boxes and cartons up to 85 kg. Quiet and easy to manoeuvre, it has 3 mast heights and 500 or 650 mm legs; many tools fit on the carriage, from the platform to the drum gripper. The Edmolift WP 85 is a battery electric work positioner, used as a reel lifter and drum lifter.

Capacity 85 kg at 400 mmStroke up to 2050 mmErgoControl handleSteel IP44 or stainless steel IP65

85 kgcapacity at 400 mm from the mast

2050 mmmaximum stroke

7.5 hfull charge

IP65stainless steel version

Why choose it

Quiet and easy to manoeuvre

It moves easily between machines, benches and shelves.

Many tools

Platforms, forks, booms, grippers for reels and drums, crane arm.

Steel or stainless steel

304L stainless steel IP65 for food, pharmaceutical and chemical use, easy to clean.

Charge indicator

AGM batteries with external charger and indicator on the remote control.

Choose it if…

you move reels, boxes or cartons up to 85 kg
you need to lift high: stroke up to 2050 mm
you need a quiet, easy-to-manoeuvre trolley
you use manual tools: platforms, forks, grippers, booms

Choose another model if…

if the load does not exceed 65 kg and a 1600 mm stroke is enough WP 65 →
if you need electric grippers or capacities up to 125 kg WP 125 →

Not sure which one to choose? Use the Work Positioner guide →

Where it is used

For loads up to 85 kg in production and warehouses:

Reels: loading and unloading machines
Containers: lifting and tipping with dedicated tools
Food, pharmaceutical, chemical: stainless steel IP65 version
Warehouse: boxes and cartons to and from the shelves

See it at work

WP 85 SS with roller platform

WP 85 SS with rotating fork

The base: choose the legs

Standard legs

500 or 650 mm long, 486 mm wide.

Central legs

500 mm long, narrow 146 mm base.

Technical data

Version	Steel, Stainless Steel
Max Load Kg	85
Lift Stroke mm	1220, 1600, 2050
Lifting Speed	120 mm/s
Legs	Central, Standard 500, Standard 650
Front Wheels	Ø 50
Rear Wheels	Ø 125 with Brake
Handle and Control Type	WPR-R1 Ergonomic Handle with remote control
Number of Cycles	100-200
Battery	2 AGM (24 V - 9 Ah)
Battery Charger	External 230 V 50-60Hz

Masts S, M and L: overall height 1560, 1940 or 2390 mm, stroke 1220, 1600 or 2050 mm. Trolley weight from 45 to 61 kg. Capacity measured with the load’s centre of gravity at 400 mm from the mast. On request: lithium batteries, automatic levelling, central brake, ESD rear wheels.

Compatible tools and accessories

Steel Platform 85 kgUsable capacity 75 kg

HDPE Platform 60 kgUsable capacity 60 kg

HDPE Platform 85 kgUsable capacity 80 kg

HDPE Platform with Rollers 85 kgUsable capacity 75 kg

Wave platformUsable capacity 70 kg

Adjustable fork 85 kgUsable capacity 70 kg

ForkUsable capacity 75 kg

Symmetric adjustable fork 180 KgUsable capacity 70 kg

4 Cleat forksUsable capacity 75 kg

8 Cleat forksUsable capacity 70 kg

Fork for rolling tray for Eu std binsUsable capacity 70 kg

Manual core gripper with tilting 90° - 80 KgUsable capacity 70 kg

Vertical core gripper 80 kgUsable capacity 80 kg

Manual front tilting gripper for drumsUsable capacity 80 kg

Boom with wheel + V-support 360°Usable capacity 80 kg

Boom with wheel for V supportUsable capacity 80 kg

Boom tube Ø 60Usable capacity 80 kg

Double boom tube Ø 35Usable capacity 80 kg

Boom tube Ø 35Usable capacity 80 kg

Crane armUsable capacity 75 kg

Quick change tooling light 125 KgQuick change of manual tools, without screws

Lateral translatorMoves the tool sideways by ±200 mm

Height position marking6 markers on the mast to find the height again

Manual rotation system 100 KgManual rotation of the tool, up to 100 kg

Electric rotation system 150 Kg360° electric rotation with 3 positions

Any other questions?Read the 12 frequently asked questions →

Which Work Positioner do you need?

Send us the weight, shape and heights of the load: we will recommend the model, mast, legs and tool.

Request a quote Call +39 0434 572757

Specifications

Model	WP 85S-S-500
Version	Steel
Max Load Kg	85
Lift Stroke mm	1220
Total Height mm	1560
Lifting Speed	120 mm/s
Legs	Standard 500
Legs Length mm	505
Legs Width mm	486
Front Wheels	Ø 50
Rear Wheels	Ø 125 with Brake
Handle and Control Type	WPR-R1 Ergonomic Handle with remote control
Number of Cycles	100-200
Battery	2 AGM (24 V - 9 Ah)
Battery Charger	External 230 V 50-60Hz
Weight Kg	45

Up to 85 kg, with the load’s centre of gravity 400 mm from the mast. The stroke is 1220, 1600 or 2050 mm depending on the mast (S, M or L). If the load reaches 125 kg or you need electric grippers, there is the WP 125; if 65 kg and a 1600 mm stroke are enough, the WP 65.

The 2 standard AGM batteries (24 V – 9 Ah) charge to 100% in 7.5 hours with the external charger; the trolley must not be used while charging. On request there are lithium batteries (WPR-O-0004), which charge faster, or a removable battery pack with charging station (WPR-O-0039) and extra packs to swap.

Yes: platforms, forks, booms, reel and drum grippers and the crane arm are fixed to the tool carriage with M6 screws. With the WPR-A-0001-SS quick change you swap them in a few seconds, on your own, without unscrewing them; to line up the load without moving the trolley there is the ±200 mm lateral translator (WPR-A-0006).

There are two bases: standard legs 500 or 650 mm long and 486 mm wide, or central legs 500 mm long with a narrow 146 mm base, which let you get closer to benches and shelves.

It is pushed by hand using the ErgoControl handle, with Ø 125 mm rear wheels with brakes; a central brake is available on request (WPR-O-0021). With a load it must be moved slowly and in the low position, on a level floor: the maximum slope is 5% fully loaded and 15% unloaded.

Among the documents you can download from this page: the user manual in Italian and English and the technical drawing. The wiring diagram is on page 24 of the manual, right after the spare parts list.

A work positioner: the battery-powered electric lifter that lifts, carries and positions the part at the push of a button, with the right tool for the load: platform, forks, boom, gripper or crane arm. Capacities range from 55 to 285 kg.

With a work positioner and the right tool: the boom goes into the core of the reel, the gripper clamps it from the outside, and there is also an electric gripper that turns it through 90°. For drums there is the manual front tilting gripper, which lifts and tilts them with a handwheel.

From four things: part weight, how you pick it up (which tool you need), stroke and working environment. The capacity applies with the centre of gravity 400 mm from the mast, tool included; the work positioner buying guide, with its 4-question selector, shows you the suitable models and tools.

Yes, in the stainless steel version: work positioner and tools in 304L stainless steel with IP 65 protection, from WP 55 to WP 285, for the food, pharmaceutical and chemical industries. Stainless units take tools in the SS version; the WP ONE comes in IP 44 steel only.

Overload protection stops lifting if the load is too heavy and the anti-crush system stops lowering if it meets an obstacle; there is also a reinforced toothed belt, shielded moving parts, soft start and stop and an emergency stop on the control unit. It must not be used to lift people.

Every 6 months the belt, fixing screws and batteries are checked; once a year the mechanical and electrical parts, by authorised staff. Charge the battery at least once or twice a week, even with occasional use, and every 6 months if the work positioner is not used.
