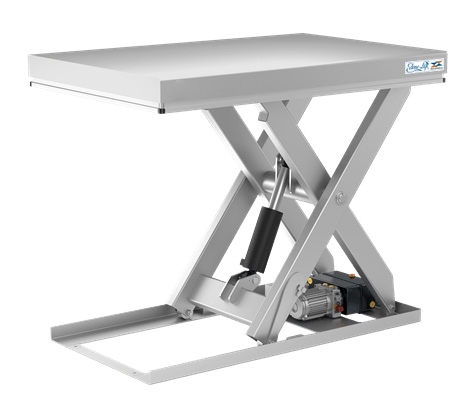

TR 500 SS Stainless Steel Single Scissor Lift Table
TR 500 SS is a single scissor lift table in AISI 304 stainless steel for the food, chemical and pharmaceutical industries: capacity 500 kg, stroke 550 mm, platform 900 x 650 mm, minimum height 160 mm.
Documents
Edmolift · Stainless steel platforms
TR 500 SS: 500 kg stainless steel lifting platform
For the food, chemical and pharmaceutical industries: platform, frame and scissor in AISI 304 stainless steel. It carries containers, crates and components, up to 500 kg: it brings the load to working height, with no bending.
Why choose it
AISI 304 stainless steel
Platform, base frame and scissor in AISI 304 (EN 1.4301); wheels, axles and bolts in AISI 303.
Protected electrics
Control panel and switches IP65, motor IP54, 24 V DC controls.
Smooth, quiet lowering
Pressure-compensating valve for lowering; noise level 50–52 dB.
Standard
Choose it if…
- you work where hygiene matters: food, chemical, pharmaceutical
- you lift containers, crates and components, up to 500 kg
- you work between 160 and 710 mm: the part comes to the right height and nobody has to bend
Choose another solution if…
- you do not need stainless steel TR 501 Single Scissor Lift Table →
- the load is up to 1000 kg TL 1000 SS Stainless Steel Single Scissor Lift Table →
- you need 1100 mm of stroke (on request)
Not sure which one to choose? Use the lifting platform guide →
Stainless steel platforms
Technical data
| Capacity Kg | 500 |
| Lift Stroke mm | 550 |
| Lowest Height mm | 160 |
| Max Height mm | 710 |
| Lift Table Length mm | 900 |
| Lift Table Width mm | 650 |
| Scissor lift | Single Scissor |
| Version | Stainless Steel |
| Lift Time sec. | 11 |
| Power kW (S3) | 0,37 |
| Power Supply | Three-phase 415 V |
| Certificate | CE - EN 1570-1 |
Power supply 3 × 415 V/50 Hz, 24 V DC controls. Type 2 cylinders with extra treatment as standard; type 1 or type 3 in AISI 316 on request. Weight including packaging 115 kg.
Need help choosing?
Tell us the weight and size of the load, the working heights and the cycles per hour: we will recommend the right model and accessories.
