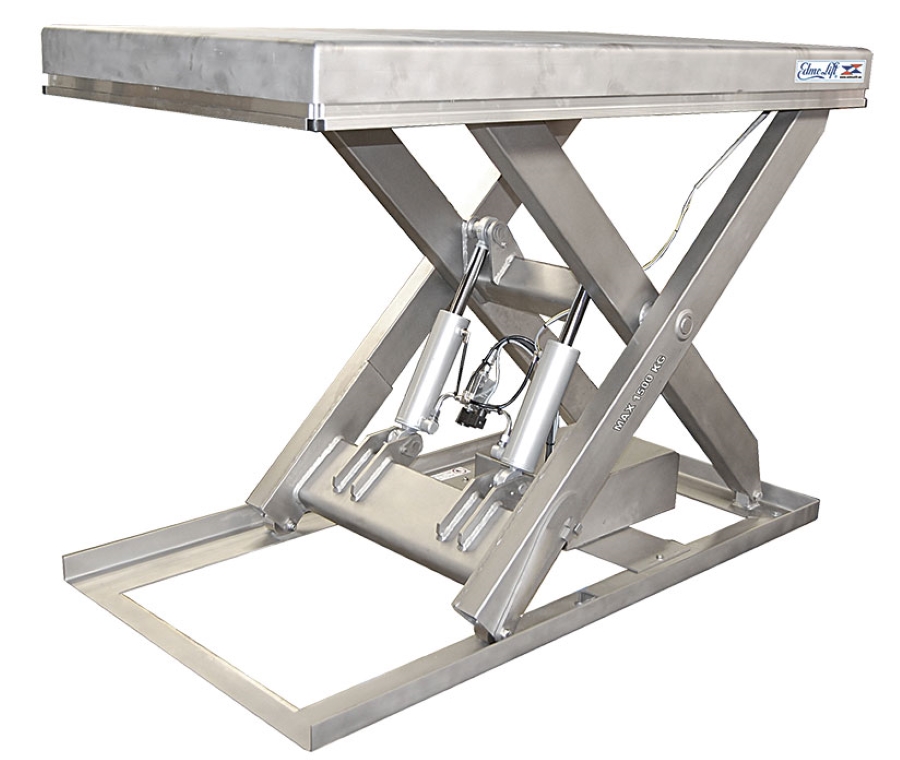

TM 1500 SS Stainless Steel Single Scissor Lift Table
TM 1500 SS is a single scissor lift table in AISI 304 stainless steel for the food, chemical and pharmaceutical industries: capacity 1500 kg, stroke 1100 mm, platform 1700 x 900 mm, minimum height 230 mm.
Documents
Edmolift · Stainless steel platforms
TM 1500 SS: 1500 kg stainless steel lifting platform
For the food, chemical and pharmaceutical industries: platform, frame and scissor in AISI 304 stainless steel. It carries 1700 mm long loads, up to 1500 kg: the long stroke is for working on tall loads or bridging a difference in level.
Why choose it
AISI 304 stainless steel
Platform, base frame and scissor in AISI 304 (EN 1.4301); wheels, axles and bolts in AISI 303.
Protected electrics
Control panel and switches IP65, motor IP54, 24 V DC controls.
Smooth, quiet lowering
Pressure-compensating valve for lowering; noise level 50–52 dB.
Standard
Choose it if…
- you work where hygiene matters: food, chemical, pharmaceutical
- you lift 1700 mm long loads, up to 1500 kg
- you need 1100 mm of stroke, up to 1330 mm from the floor: to work on tall loads or bridge a difference in level
Choose another solution if…
- you do not need stainless steel TM 1500 Single Scissor Lift Table →
- a 1300 mm platform is enough TL 1000 SS Stainless Steel Single Scissor Lift Table →
- you need 1600 mm of stroke TLD 1000 SS Stainless Steel Vertical Lift Table →
Not sure which one to choose? Use the lifting platform guide →
Stainless steel platforms
Technical data
| Capacity Kg | 1500 |
| Lift Stroke mm | 1100 |
| Lowest Height mm | 230 |
| Max Height mm | 1330 |
| Lift Table Length mm | 1700 |
| Lift Table Width mm | 900 |
| Scissor lift | Single Scissor |
| Version | Stainless Steel |
| Lift Time sec. | 27 |
| Power kW (S3) | 0,75 |
| Power Supply | Three-phase 415 V |
| Certificate | CE - EN 1570-1 |
Power supply 3 × 415 V/50 Hz, 24 V DC controls. Type 2 cylinders with extra treatment as standard; type 1 or type 3 in AISI 316 on request. Weight including packaging 315 kg.
Need help choosing?
Tell us the weight and size of the load, the working heights and the cycles per hour: we will recommend the right model and accessories.
