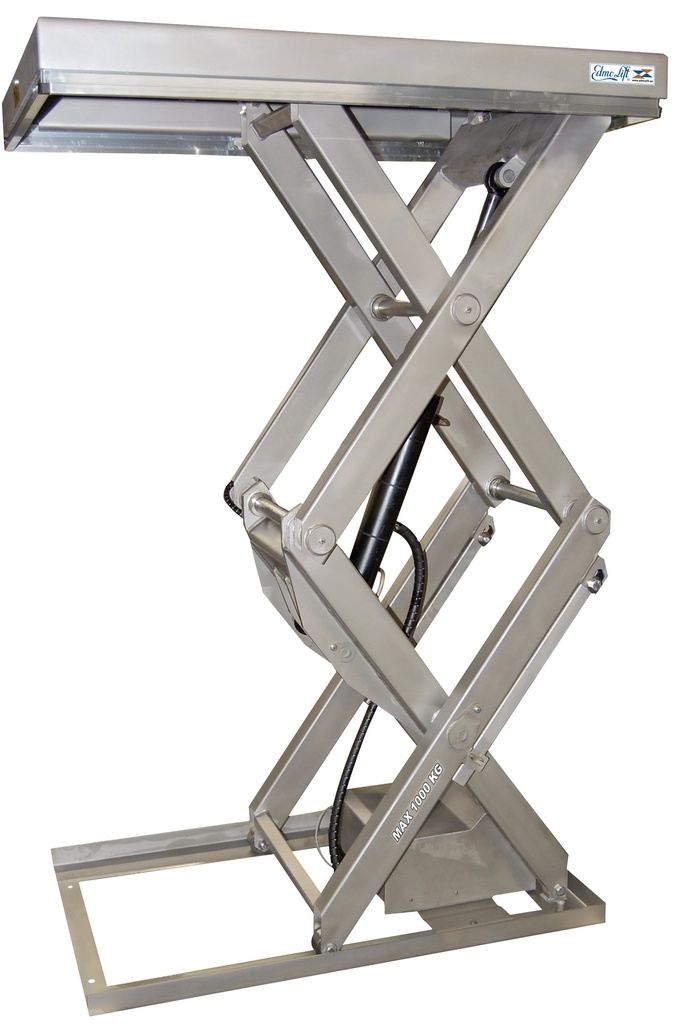

TLD 1000 SS Stainless Steel Vertical Lift Table
TLD 1000 SS is a double vertical scissor lift table in AISI 304 stainless steel for the food, chemical and pharmaceutical industries: capacity 1000 kg, stroke 1600 mm, platform 1300 x 800 mm, minimum height 375 mm.
Documents
Edmolift · Stainless steel platforms
TLD 1000 SS: 1000 kg stainless steel vertical platform
For the food, chemical and pharmaceutical industries: platform, frame and scissor in AISI 304 stainless steel. It carries a Euro pallet, up to 1000 kg: the long stroke connects two levels, such as the yard and a loading dock.
Why choose it
AISI 304 stainless steel
Platform, base frame and scissor in AISI 304 (EN 1.4301); wheels, axles and bolts in AISI 303.
Protected electrics
Control panel and switches IP65, motor IP54, 24 V DC controls.
Smooth, quiet lowering
Pressure-compensating valve for lowering; noise level 50–52 dB.
Standard
Choose it if…
- you work where hygiene matters: food, chemical, pharmaceutical
- you lift a Euro pallet, up to 1000 kg
- you need to connect two levels, such as the yard and a loading dock: 1600 mm of stroke, up to 1975 mm
Choose another solution if…
- you do not need stainless steel TLD 1000 Vertical Lift Table →
- 820 mm of stroke is enough TL 1000 SS Stainless Steel Single Scissor Lift Table →
- 500 kg on a smaller platform is enough (on request)
Not sure which one to choose? Use the lifting platform guide →
Stainless steel platforms
Technical data
| Capacity Kg | 1000 |
| Lift Stroke mm | 1600 |
| Lowest Height mm | 375 |
| Max Height mm | 1975 |
| Lift Table Length mm | 1300 |
| Lift Table Width mm | 800 |
| Scissor lift | Vertical Double Scissors |
| Version | Stainless Steel |
| Lift Time sec. | 30 |
| Power kW (S3) | 0,75 |
| Power Supply | Three-phase 415 V |
| Certificate | CE - EN 1570-1 |
Power supply 3 × 415 V/50 Hz, 24 V DC controls. Type 2 cylinders with extra treatment as standard; type 1 or type 3 in AISI 316 on request. Weight including packaging 310 kg.
Need help choosing?
Tell us the weight and size of the load, the working heights and the cycles per hour: we will recommend the right model and accessories.
