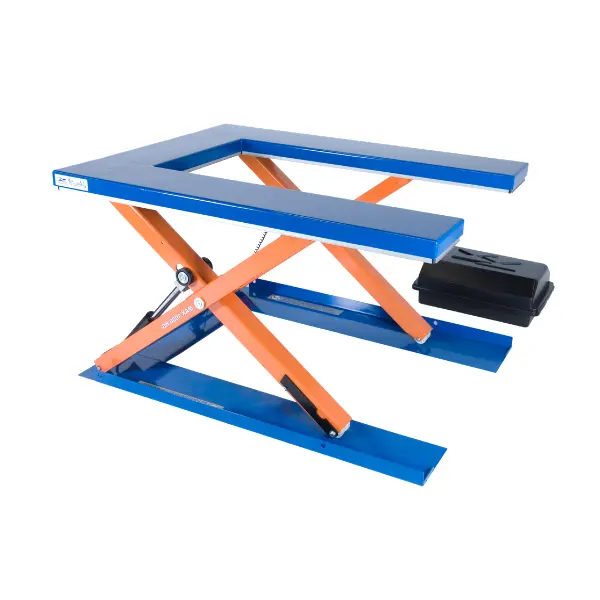

CUB 1000 low-profile lift table

https://leanproducts.eu/web/image/product.template/1645/image_1920?unique=0d864a6

The CUB 1000 is an extra-low scissor lift table with a capacity of 1000 kg and a lowered height of only 85 mm, designed for integration into workstations with limited vertical space. The lifting stroke of 715 mm and the 1450×1085 mm platform make it suitable for handling, assembly and line-feeding operations in industrial environments. Driven by a 400V three-phase motor unit (0.95 kW, S3) with external power pack and 2-button control, it reaches maximum height in 13 seconds. CE marked to EN 1570-1.

Read more ↓
Code: 34858
  • Lowered height mm
  • Max height mm
  • Scissor mechanism
  • Lifting time (s)
  • Weight (kg)
  • Control unit
  • Power pack
  • Power kW (S3)
  • Power supply
  • Certification

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Request a quote
We reply within 1 working day
Download PDF data sheet

Specifications

Load capacity (kg) 1000
Lifting stroke mm 715
Lowered height mm 85
Max height mm 800
Platform length mm 1450
Platform width mm 1085
Scissor mechanism Low-profile
Lifting time (s) 13
Weight (kg) 240
Control unit Standard push-button pendant, 2 buttons
Power pack External with plastic cover L=3m
Power kW (S3) 0.95
Power supply Three-phase 400 V
Certification CE - EN 1570-1

No. Closed, it is 85 mm high and stands on the floor: the U-shaped platform is made to receive the pallet brought by the pallet truck.

Yes: the platform top can be drilled to fix equipment or guides, avoiding the area where the scissor mechanism moves.

Only in the fixed colours orange and blue: the C series cannot be customised.

The T series is made entirely in Sweden and is configured with accessories, controls and colours. The C series is the lighter, more economical version: the hydraulics and many components are the same as on the T series, but it cannot be customised, takes only a few accessories and has fixed colours, orange and blue.

A lift table brings the load to the right working height at the push of a button: people work without bending and without lifting by hand. If the load also has to move between workstations there is the scissor lift trolley; for picking from pallets and bins, the pallet lifters and tilters.

Start from three things: the weight of the load and how it rests, the lowest and highest working height (the difference is the stroke) and the platform size you really need. Then consider cycles per hour, environment and safety. The lift table buying guide, with its 4-question selector, shows you the suitable models.

For long or heavy loads there is the double horizontal scissor: two synchronised scissors in tandem lift a platform up to 6000 mm long, with capacities up to 10,000 kg. For long strokes without a bigger footprint, also to connect two levels, the double, triple or quadruple vertical scissor reaches a 6000 mm stroke.

Yes: it is CE marked to EN 1570-1, tested with a load 30% above the rated capacity and supplied with the declaration of conformity. As standard it has the anti-crush safety bar on all 4 sides, the double non-return valve against sudden lowering and maintenance props.

A flat, level concrete base of at least C12/15, anchoring with at least four expansion bolts and the electrical connection made by an authorised electrician. The CEE plug, motor protection and main switch are normally not included in the supply.

About 4 times a year or every 1000 cycles, whichever comes first: check the hydraulic oil (ISO 32) for leaks and level, hoses and cables, emergency stops, safety bar and labels. To work under the platform, raise it unloaded, engage the maintenance props and switch off the power; use only original spare parts.

In the “Documents” section of the product page: the user manual covers installation, maintenance, troubleshooting and the UC-60 wiring and hydraulic diagrams. To order spare parts you need the machine type and serial number shown on the rating plate.
