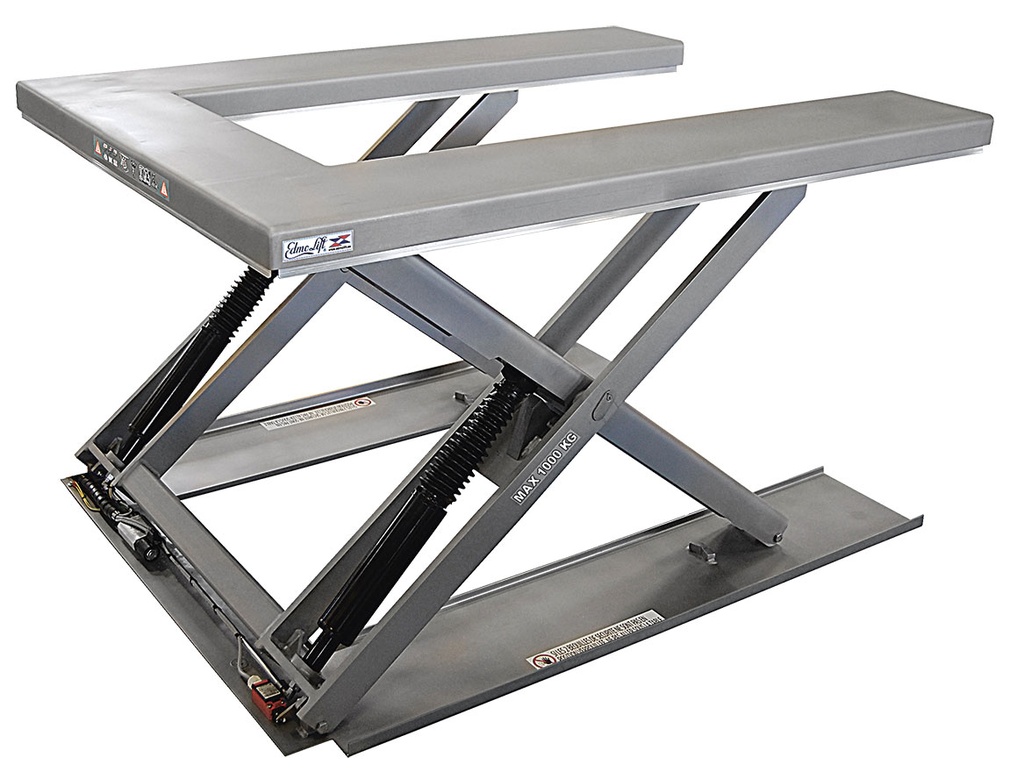

TUB 1000 SS Stainless Steel Low Profile Lift Table
TUB 1000 SS is a low-profile lift table in AISI 304 stainless steel for the food, chemical and pharmaceutical industries: capacity 1000 kg, stroke 715 mm, platform 1450 x 1085 mm, minimum height 85 mm.
Documents
Edmolift · Stainless steel platforms
TUB 1000 SS: stainless steel U-shaped low-profile platform
For the food, chemical and pharmaceutical industries: platform, frame and scissor in AISI 304 stainless steel. 85 mm high when closed, it stands on the floor with no pit and receives the pallet from the pallet truck.
Why choose it
AISI 304 stainless steel
Platform, base frame and scissor in AISI 304 (EN 1.4301); wheels, axles and bolts in AISI 303.
Protected electrics
Control panel and switches IP65, motor IP54, 24 V DC controls.
Smooth, quiet lowering
Pressure-compensating valve for lowering; noise level 50–52 dB.
Standard
Choose it if…
- you work where hygiene matters: food, chemical, pharmaceutical
- you bring the pallet to the platform with the pallet truck
- you cannot or do not want to make a pit
Choose another solution if…
- you do not need stainless steel CUB 1000 Low Profile Lift Table →
- you need a solid platform TCB 1000 SS Stainless Steel Low Profile Lift Table →
Not sure which one to choose? Use the lifting platform guide →
Stainless steel platforms
Technical data
| Capacity Kg | 1000 |
| Lift Stroke mm | 715 |
| Lowest Height mm | 85 |
| Max Height mm | 800 |
| Lift Table Length mm | 1450 |
| Lift Table Width mm | 1085 |
| Scissor lift | Low Profile |
| Version | Stainless Steel |
| Lift Time sec. | 12 |
| Power kW (S3) | 0,75 |
| Power Supply | Three-phase 415 V |
| Certificate | CE - EN 1570-1 |
Power supply 3 × 415 V/50 Hz, 24 V DC controls. Type 2 cylinders with extra treatment as standard; type 1 or type 3 in AISI 316 on request. Weight including packaging 235 kg.
Need help choosing?
Tell us the weight and size of the load, the working heights and the cycles per hour: we will recommend the right model and accessories.
