Pudu T300

An AGV follows fixed paths (magnetic tape, wires or markers) and stops in front of an obstacle. An AMR like the T300 maps the environment, plans its own route and drives around obstacles: it is installed without floor works and reprogrammed in minutes when the layout changes.

Introducing the PUDU T300 in your warehouse brings measurable benefits, including:

• Productivity up to 200% higher: it drastically cuts the time operators spend walking, increasing units picked per hour (UPH).

• Lower operating costs: it minimizes low-value manual work and optimizes staff deployment.

• Greater safety: it eliminates the risks of manually handling heavy loads and reduces pedestrian traffic.

• Flexibility and scalability: the robot fleet can easily be expanded or reconfigured to adapt to layout changes or work peaks.

Up to 300 kg on the loading deck, through 60 cm gaps. With the towing device it pulls your existing carts up to 400 kg; the T300L drives under carts and racks and lifts them by 60 mm.

It measures 835 × 500 × 1350 mm and weighs 65 kg (81 kg the lifting version); it passes through 60 cm gaps.

Up to 12 hours without load and about 8 hours fully loaded. Charging from 0 to 90% takes 2 hours; with the automatic station or a spare battery it works across several shifts.

Yes. It complies with ISO 3691-4 for driverless industrial trucks: 360° LiDAR, depth cameras, collision sensors and emergency stop buttons. It detects people and obstacles, including low or overhanging ones, slows down or stops, and respects yellow safety lines on the floor.

No: the T300 finds its way with cameras and LiDAR, without tape or magnets. Markers are optional, for very repetitive environments. Elevators and automatic doors connect through PUDU IoT modules.

In four ways: with the one-button pager, from the touchscreen or the press-to-go button on the robot, from the Pudu Link app on a smartphone, or automatically from your system via API. Calls sent via API can have a priority and, if the robot is busy, they are queued until it is free.

Yes. The LoRa elevator kit lets the robot call the elevator and change floor without interfering with the elevator’s internal systems; it is installed by the maintenance company and requires a data SIM. For automatic doors and turnstiles there is the 2-relay Bluetooth gateway module.

A network connection is needed for the app, calls from your systems, the APIs and coordinating several robots. During the analysis we check coverage along the routes and at loading and unloading points with you.

Yes: with the PUDU Open Platform your WMS, MES or ERP calls the robots, sends missions and receives mission status, position and errors in real time (callbacks); multi-stop lifting missions and historical data on missions, charging and faults are also available. API keys are obtained through the distributor: we activate them and support your integrator; PUDU provides code samples in Python, Java, JavaScript, Go and C#.

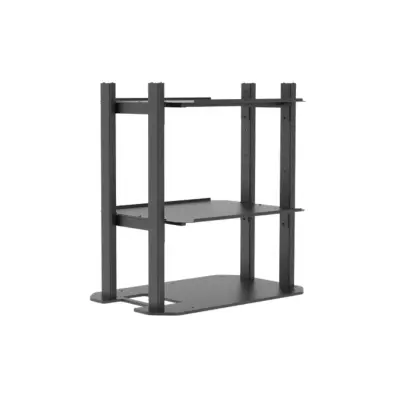

Yes, it has a flexible modular structure that allows different accessories to be fitted on top, such as the towing device or the frame with two trays.

Yes, with the T series towing device: the robot recognises the cart, hitching is manual and unhitching automatic on arrival, with no modifications to the cart. It tows up to 400 kg on resin floors, with a 200 kg counterweight; when towing it travels at 0.8 m/s, climbs thresholds up to 5 mm and works about 6 hours at full load. If you want it to pick up and drop off the load without an operator, consider the T300L with lifting or the T600 Underride.

Yes, with the T series roller conveyor module, with one or two levels of 80 kg each. It docks alongside the conveyor with an accuracy of ±10 mm and ±1°, transfers containers without an operator and notifies the PLC of pick-up and delivery: from person to line, between two lines or from line to person. Adjustable width from 120 to 540 mm, depth 650 mm; with the roller conveyor the robot requires 75 cm of passage.

The T300 carries up to 300 kg on its deck, on the tray frame, when towing or with the roller conveyor, and fits through 60 cm. The T300L is the version with lifting: it slides under dedicated racks and carts and loads and unloads them on its own, again up to 300 kg. The T600 carries up to 600 kg, needs 70 cm corridors and thresholds up to 10 mm and adds VDA 5050 for mixed fleets, floor projection and the emergency module. For pallets up to 2,000 kg there is the MP2000.

The map is created by moving the robot along the routes in power-assist mode, then loading and unloading points are defined: no floor works are needed. Timing depends on the area and the number of points; for order picking PUDU states less than a week.

It depends on trips per hour, distances, loads and loading and unloading times: we calculate it with you during the analysis. You can start with one robot and add more: the PUDU Scheduler coordinates up to 20 robots on the same site.

LeanProducts, official PUDU distributor in Italy, handles flow analysis, installation, mapping and operator training. On request we arrange a demo at your site.

LeanProducts provides direct support throughout Italy through its own technicians. Types of support offered:

• phone support and remote access for questions or analysis;
• on-site repair or, preferably, shipment to our premises;
• specific training so you can work independently.

The price depends on the configuration (trays, lifting, towing, charging station) and on analysis, mapping and start-up services: request a quote and we will send you a tailored proposal.

Yes. The manufacturer has signed a GDPR compliance declaration for T300, T600, PuduBot 2, KettyBot Pro and BellaBot Pro. The robot does not record images of the surroundings and does not recognise faces. The depth sensors are used to plan the route: the data is continuously overwritten and is neither saved nor sent to the cloud. The ceiling-facing VSLAM camera is used only for localisation: the images are converted on the robot into geometric points and then deleted. Only operating data (routes, completed tasks, status and faults) goes to the PUDU cloud, no personal data. We provide the declaration with the quote.

Yes. With PUDU Cloud Veil the data runs locally or on your private cloud and does not pass through PUDU servers: no data leakage at source and full control over the information, as required in environments with high confidentiality requirements. To connect the robot to your systems there is the PUDU Cloud Open API. We define the configuration and functions available for your model in the quote.

PUDU is certified ISO/IEC 27001:2022 for information security and ISO/IEC 27701:2019 for privacy, verified by the certification body DNV. Data is encrypted and stored encrypted, access is limited to authorised personnel and a dedicated department oversees information security. Vulnerabilities are reported through an official channel. On the robot, settings and working modes are password-protected and the software is updated remotely.

Yes, every robot comes with CE marking and an EU declaration of conformity. The T300 has CE certification (Machinery Directive and RED Directive) issued by TÜV SÜD, according to EN ISO 3691-4 (driverless industrial trucks) and EN 1175 (electrical safety of industrial trucks). The T600 series complies with ISO 3691-4. For the MP2000 we provide the declaration and the standards applied with the quote.
