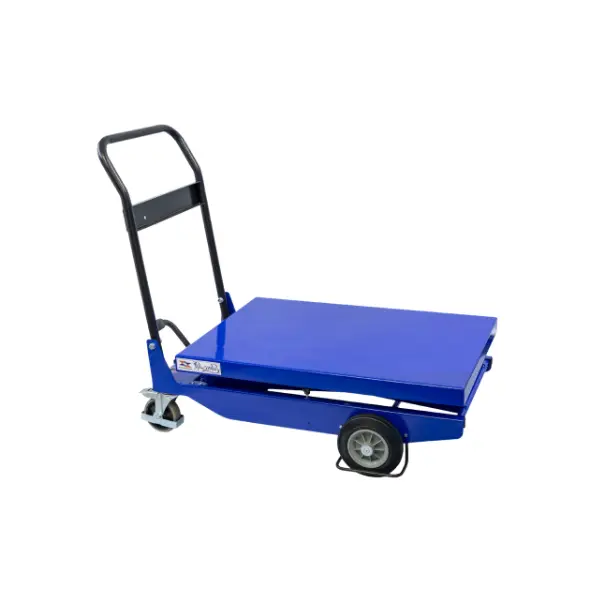

CZ 203 Scissor Lift Trolley
The CZ 203 is a scissor lift trolley with a load capacity of up to 200 kg, a 900×600 mm work platform and a lifting stroke of 600 mm, with a minimum height of 330 mm. It is operated by a foot pump, with no need for an electrical supply, making it suitable for flexible workstations in production and logistics environments. CE certified to EN 1570-1, it ensures compliance with European standards for lift tables. Ideal for ergonomic handling, component positioning and adjusting the working height along assembly lines.
Documents
Edmolift · Series C, scissor lift trolley
CZ 203: scissor lift trolley with foot pump, 200 kg
Single scissor trolley: you raise the load with the foot pump, from 330 to 930 mm, and take it where it is needed. Large wheels, double brake on the swivel castors.
Why choose it
Lifts and carries
It raises the load and moves it between workstations: a mobile work surface at the right height.
No power needed
It is raised with the foot pump: no batteries to charge.
Large wheels
Large wheels, with a double brake on the swivel castors.
Series C
Standard version, CE certified to EN 1570-1.
Choose it if…
- you move loads up to 200 kg by hand between workstations
- you need a work surface from 330 to 930 mm
- you want a simple trolley without batteries
Choose another solution if…
- the load is up to 500 kg CZ 503 Scissor Lift Trolley →
- you need 1170 mm of stroke CZD 203 Scissor Lift Trolley →
- you prefer to lift by battery, with a control pendant TZ 503B Scissor Lift Trolley →
Not sure which one to choose? Use the lifting platform guide →
Technical data
| Capacity Kg | 200 |
| Lift Stroke mm | 600 |
| Lowest Height mm | 330 |
| Max Height mm | 930 |
| Lift Table Length mm | 900 |
| Lift Table Width mm | 600 |
| Lift Drive | Foot Pump |
| Weight Kg | 65 |
| Certificate | CE - EN 1570-1 |
Overall dimensions 1180 × 650 mm.
Images and applications
Need help choosing?
Tell us the weight and size of the load, the working heights and the cycles per hour: we will recommend the right model and accessories.
