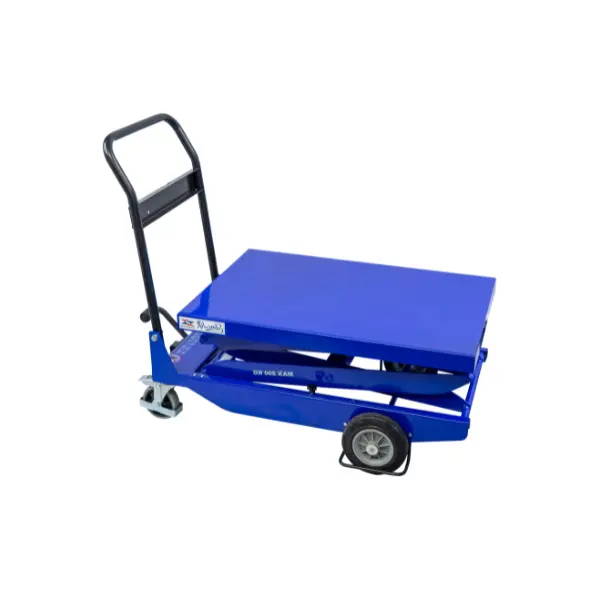

CZ 503 Scissor Lift Trolley
The CZ 503 is a scissor lift trolley with a load capacity of up to 500 kg and a lifting stroke of 600 mm, operated by a foot pump for use independent of any electrical supply. The work platform (900 × 600 mm) starts from a minimum height of 330 mm, making it suitable for line feeding, ergonomic component positioning and handling operations in industrial environments. CE certified to EN 1570-1, it ensures compliance with European safety standards for lift tables.
Documents
Edmolift · Series C, scissor lift trolley
CZ 503: scissor lift trolley with foot pump, 500 kg
Single scissor trolley: you raise the load with the foot pump, from 330 to 930 mm, and take it where it is needed. Large wheels, double brake on the swivel castors.
Why choose it
Lifts and carries
It raises the load and moves it between workstations: a mobile work surface at the right height.
No power needed
It is raised with the foot pump: no batteries to charge.
Large wheels
Large wheels, with a double brake on the swivel castors.
Series C
Standard version, CE certified to EN 1570-1.
Choose it if…
- you move loads up to 500 kg by hand between workstations
- you need a work surface from 330 to 930 mm
- you want a simple trolley without batteries
Choose another solution if…
- 200 kg is enough CZ 203 Scissor Lift Trolley →
- you need 1170 mm of stroke CZD 203 Scissor Lift Trolley →
- you prefer to lift by battery, with a control pendant TZ 503B Scissor Lift Trolley →
Not sure which one to choose? Use the lifting platform guide →
Technical data
| Capacity Kg | 500 |
| Lift Stroke mm | 600 |
| Lowest Height mm | 330 |
| Max Height mm | 930 |
| Lift Table Length mm | 900 |
| Lift Table Width mm | 600 |
| Lift Drive | Foot Pump |
| Weight Kg | 85 |
| Certificate | CE - EN 1570-1 |
Overall dimensions 1180 × 650 mm.
