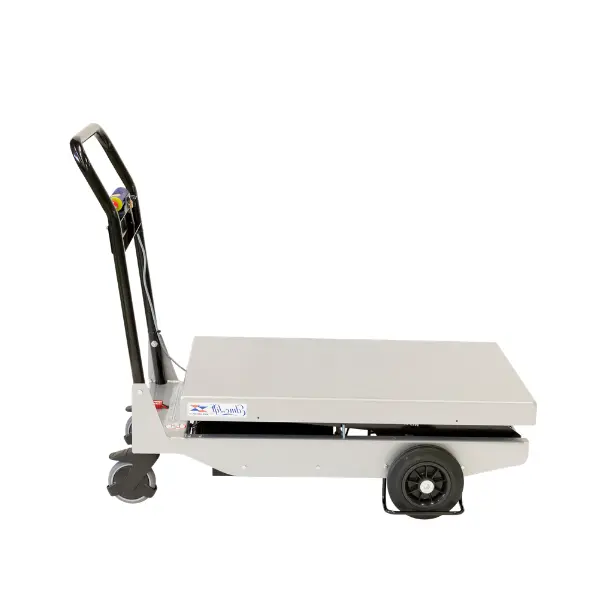

TZ 503B Scissor Lift Trolley
The TZ 503B is a scissor lift trolley with electric drive powered by a 12V 24Ah battery, designed for production environments where manual load handling is not practicable. Capacity 500 kg, platform 900×600 mm, lifting stroke 600 mm with a minimum height of 330 mm: parameters suited to ergonomic positioning of components and materials along the line. CE certified to EN ISO 3691-5, it ensures compliance with European safety standards.
Documents
Edmolift · Scissor lift trolley
TZ 503B: battery scissor lift trolley
A mobile work surface: you lift the load, take it where it is needed and keep it at the right height for assembly or work. Large wheels, with a double brake on the swivel castors. It is raised by battery, charger included.
Why choose it
Lifts and carries
For lifting, assembling or transporting goods, or wherever a work surface at a stable height is needed.
Easy to manoeuvre
Large wheels and a double brake on the swivel castors: you move it and stop it where you work.
Battery-powered
Sealed, maintenance-free gel battery and charger included. 12 V controls with emergency stop.
Safe
Safety clearance between moving parts and overload protection.
Right for you if…
- the load has to be lifted and also moved between workstations
- you need a mobile work surface at a stable height
- you prefer electric lifting, without pumping
Choose another solution if…
- you want to work without a battery, with the foot pump TZ 503 Scissor Lift Trolley →
- you need more stroke TZD 203B Scissor Lift Trolley →
- you need 1000 kg or a larger platform EZ 1001B Scissor Lift Trolley →
- the platform must not move TR 501 Single Scissor Lift Table →
Not sure which one to choose? Use the lift table selection guide →
Other scissor lift trolleys
Technical data
| Capacity Kg | 500 |
| Lift Stroke mm | 600 |
| Lowest Height mm | 330 |
| Max Height mm | 930 |
| Lift Table Length mm | 900 |
| Lift Table Width mm | 600 |
| Lift Drive | Battery 12V 24Ah |
| Weight Kg | 90 |
| Certificate | CE - EN ISO 3691-5 |
On request the front wheels can be moved forward for more stability.
Images and applications
Accessories and related products
Turntable for Lifting PlatformsRotates the load on the platform, Ø 650 to 1150 mmNeed help choosing?
Tell us the load, dimensions, stroke and work cycles: we will recommend the model and accessories.
