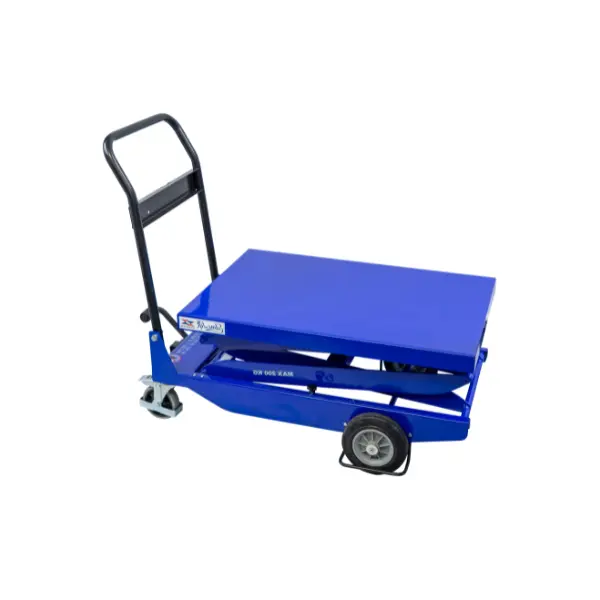

CZD 203 Scissor Lift Trolley
The CZD 203 is a scissor lift trolley with a load capacity of up to 200 kg, a lifting stroke of 1170 mm and a minimum height of 450 mm, operated by a foot pump. The work platform (900 × 600 mm) allows ergonomic handling of components and materials in industrial and logistics settings. CE certified to EN 1570-1, it ensures compliance with European safety standards for lifting equipment.
Documents
Edmolift · Series C, scissor lift trolley
CZD 203: scissor lift trolley with foot pump, 200 kg
Double scissor trolley: you raise the load with the foot pump, from 450 to 1620 mm, and take it where it is needed. Large wheels, double brake on the swivel castors.
Why choose it
Lifts and carries
It raises the load and moves it between workstations: a mobile work surface at the right height.
No power needed
It is raised with the foot pump: no batteries to charge.
Large wheels
Large wheels, with a double brake on the swivel castors.
Series C
Standard version, CE certified to EN 1570-1.
Choose it if…
- you move loads up to 200 kg by hand between workstations
- you need a work surface from 450 to 1620 mm
- you want a simple trolley without batteries
Choose another solution if…
- 600 mm of stroke is enough CZ 203 Scissor Lift Trolley →
- the load is up to 500 kg CZ 503 Scissor Lift Trolley →
- you prefer to lift by battery, with a control pendant TZD 203B Scissor Lift Trolley →
Not sure which one to choose? Use the lifting platform guide →
Technical data
| Capacity Kg | 200 |
| Lift Stroke mm | 1170 |
| Lowest Height mm | 450 |
| Max Height mm | 1620 |
| Lift Table Length mm | 900 |
| Lift Table Width mm | 600 |
| Lift Drive | Foot Pump |
| Weight Kg | 75 |
| Certificate | CE - EN 1570-1 |
Overall dimensions 1180 × 650 mm.
Images and applications
Need help choosing?
Tell us the weight and size of the load, the working heights and the cycles per hour: we will recommend the right model and accessories.
