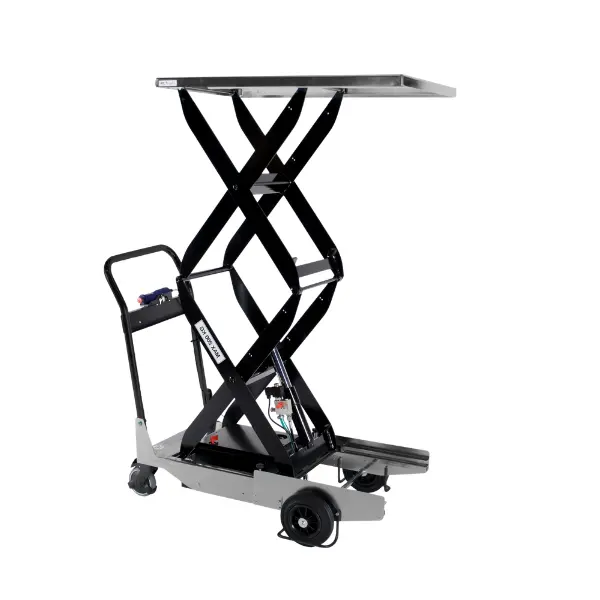

TZD 203B Scissor Lift Trolley
The TZD 203B is a scissor lift trolley with electric drive powered by a 12V 24Ah battery, designed for lifting loads up to 200 kg in production and logistics environments. The lifting stroke of 1170 mm, the minimum height of 450 mm and the 900×600 mm platform ensure great operating versatility and correct ergonomic positioning of material. The B version differs from the foot pump variant in its motorised drive, which reduces operator effort in frequent work cycles. CE certified to EN ISO 3691-5.
Documents
Edmolift · Scissor lift trolley
TZD 203B: battery double scissor lift trolley
A mobile work surface: you lift the load, take it where it is needed and keep it at the right height for assembly or work. Large wheels, with a double brake on the swivel castors. It is raised by battery, charger included.
Why choose it
Lifts and carries
For lifting, assembling or transporting goods, or wherever a work surface at a stable height is needed.
Easy to manoeuvre
Large wheels and a double brake on the swivel castors: you move it and stop it where you work.
Battery-powered
Sealed, maintenance-free gel battery and charger included. 12 V controls with emergency stop.
Safe
Safety clearance between moving parts and overload protection.
Right for you if…
- the load has to be lifted and also moved between workstations
- you need a mobile work surface at a stable height
- you prefer electric lifting, without pumping
Choose another solution if…
- you want to work without a battery, with the foot pump TZD 203 Scissor Lift Trolley →
- you need more capacity and a larger platform EZD 500B Scissor Lift Trolley →
- a lower stroke with more capacity is enough TZ 503B Scissor Lift Trolley →
- the platform must not move TRD 500 Vertical Lift Table →
Not sure which one to choose? Use the lift table selection guide →
Other scissor lift trolleys
Technical data
| Capacity Kg | 200 |
| Lift Stroke mm | 1170 |
| Lowest Height mm | 450 |
| Max Height mm | 1620 |
| Lift Table Length mm | 900 |
| Lift Table Width mm | 600 |
| Lift Drive | Battery 12V 24Ah |
| Weight Kg | 100 |
| Certificate | CE - EN ISO 3691-5 |
On request the front wheels can be moved forward for more stability.
Accessories and related products
Turntable for Lifting PlatformsRotates the load on the platform, Ø 650 to 1150 mmNeed help choosing?
Tell us the load, dimensions, stroke and work cycles: we will recommend the model and accessories.
