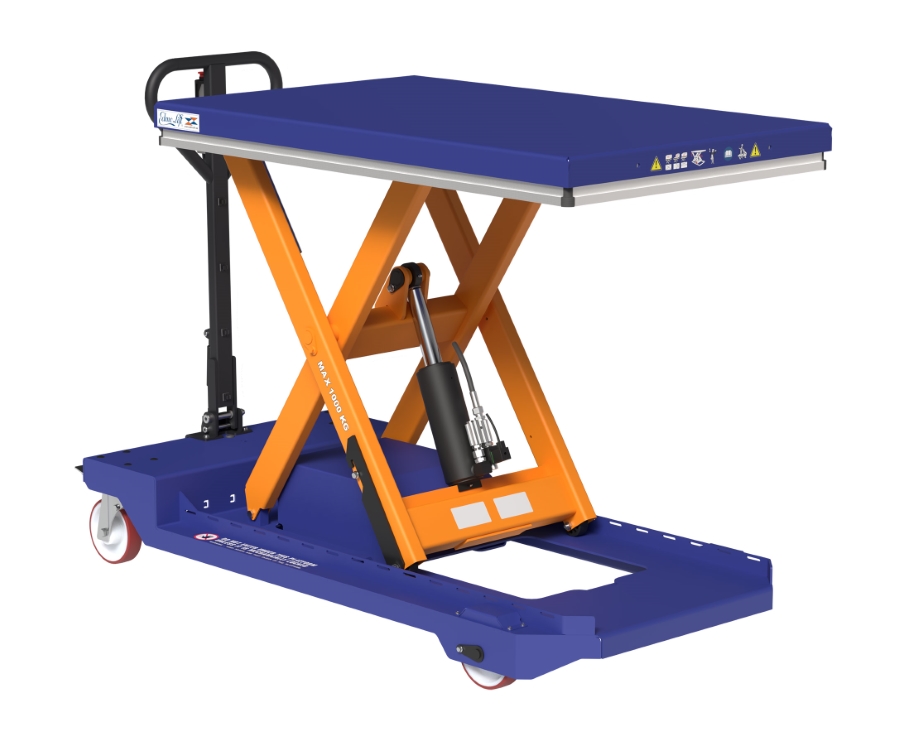

EZL 1000B Scissor Lift Trolley

https://leanproducts.eu/web/image/product.template/1684/image_1920?unique=b613c67

The EZL 1000B scissor lift trolley is designed for electric lifting of loads up to 1,000 kg in production and logistics environments. The 12V 40Ah battery drive ensures independent operation; the lifting stroke of 820 mm (from a minimum height of 320 mm) on a 1,300 × 800 mm platform covers a wide range of ergonomic handling applications. CE certified to EN 1570-1.

Code: 615900
  • Lowest Height mm
  • Max Height mm
  • Lift Drive
  • Weight Kg
  • Certificate

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Download PDF data sheet

Specifications

Capacity Kg 1000
Lift Stroke mm 820
Lowest Height mm 320
Max Height mm 1140
Lift Table Length mm 1300
Lift Table Width mm 800
Lift Drive Battery 12V 40Ah
Weight Kg 290
Certificate CE - EN 1570-1

With the foot pump the platform rises without power. Models with B in the name are battery-powered: sealed, maintenance-free gel battery, charger included, 12 V controls with emergency stop.

Yes: the swivel castors have a double brake. The lowering of the platform is also adjustable.

Yes: the platform top can be drilled to fix equipment or guides, avoiding the area where the scissor runs.

Orange RAL 2009 and blue RAL 5002 as standard. Anthracite grey RAL 7024 and black RAL 9005 at no extra charge; other RAL colours, over 200, on request at an extra charge.

The Series T is made entirely in Sweden and is configured with accessories, controls and colours. The Series C is the lighter, more economical version: the hydraulics and many components are the same as on the T, but it cannot be customised, takes only a few accessories and has fixed colours orange and blue.
