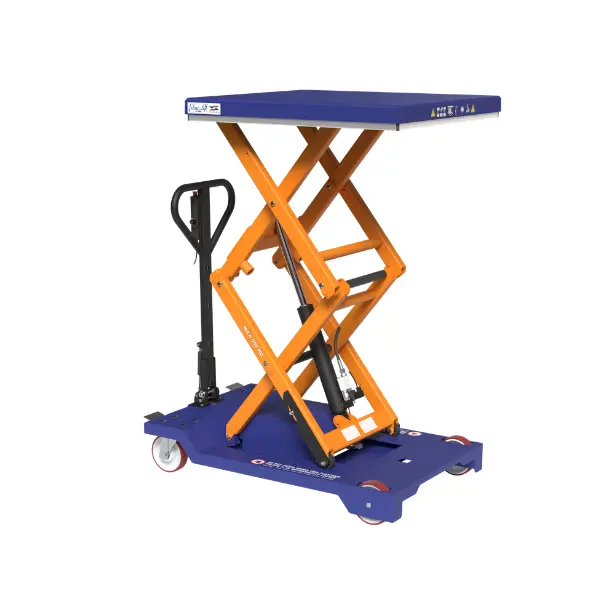

EZD 500B Scissor Lift Trolley
The EZD 500B scissor lift trolley is designed for lifting operations in industrial environments that require mobility independent of the mains: the 12V 28Ah battery drive ensures full operating autonomy. With a capacity of 500 kg, a 900×800 mm platform and a lifting stroke of 1100 mm (minimum height 410 mm), it covers a wide ergonomic range for load positioning. CE certified to EN 1570-1, it complies with European standards for lift tables.
Edmolift · Scissor lift trolley
EZD 500B: battery double scissor lift trolley
A mobile work surface: you lift the load, take it where it is needed and keep it at the right height for assembly or work. Large wheels, with a double brake on the swivel castors. It is raised by battery, charger included.
Why choose it
Lifts and carries
For lifting, assembling or transporting goods, or wherever a work surface at a stable height is needed.
Easy to manoeuvre
Large wheels and a double brake on the swivel castors: you move it and stop it where you work.
Battery-powered
Sealed, maintenance-free gel battery and charger included. 12 V controls with emergency stop.
Overload protected
Overload protection devices and adjustable lowering.
Standard
Right for you if…
- the load has to be lifted and also moved between workstations
- you need a mobile work surface at a stable height
- you prefer electric lifting, without pumping
Choose another solution if…
- you need 1000 kg EZ 1001B Scissor Lift Trolley →
- you need a longer platform EZL 1000B Scissor Lift Trolley →
- 200 kg on a more compact trolley is enough TZD 203B Scissor Lift Trolley →
- the platform must not move TRD 500 Vertical Lift Table →
Not sure which one to choose? Use the lift table selection guide →
Other scissor lift trolleys
Technical data
| Capacity Kg | 500 |
| Lift Stroke mm | 1100 |
| Lowest Height mm | 410 |
| Max Height mm | 1510 |
| Lift Table Length mm | 900 |
| Lift Table Width mm | 800 |
| Lift Drive | Battery 12V 28Ah |
| Weight Kg | 235 |
| Certificate | CE - EN 1570-1 |
Accessories and related products
Turntable for Lifting PlatformsRotates the load on the platform, Ø 650 to 1150 mmNeed help choosing?
Tell us the load, dimensions, stroke and work cycles: we will recommend the model and accessories.
