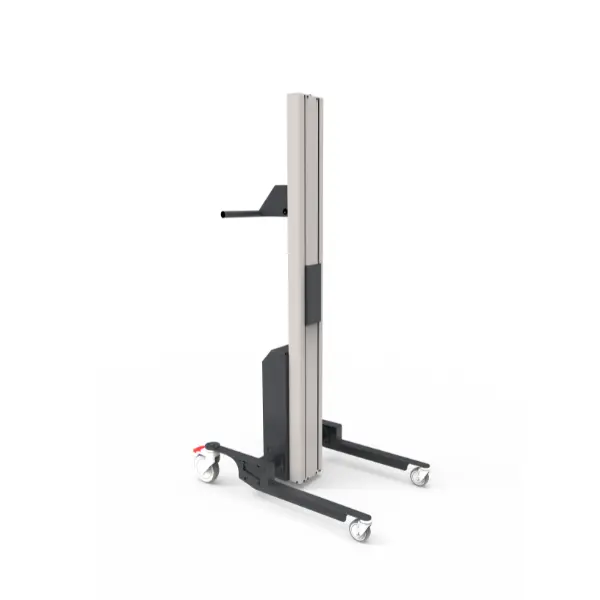

Edmolift WP 55 Electric Work Positioner 55 kg

Work Positioner

Edmolift WP 55 Electric Work Positioner 55 kg

The WP 55 lifts boxes, crates of drinks and paper reels up to 55 kg and brings them to the right height, with no bending and no carrying of weights by hand. It is pushed by hand, goes up and down at the press of a button and takes platforms, forks, booms, grippers and crane arms. The Edmolift WP 55 is a battery electric work positioner: an ergonomic lifting device for reels and boxes.

Capacity 55 kg at 400 mmStroke up to 1600 mmSteel IP44 or stainless steel IP65Push-button control

55 kgcapacity at 400 mm from the mast

1600 mmmaximum stroke

7.5 hfull charge

IP65stainless steel version

Why choose it

The load at the right height

The motor lifts at 120 mm/s: the operator does not bend over or carry the weight.

One trolley, many tools

Platforms, forks, booms, grippers and crane arms on the tool carriage.

Steel or stainless steel

Painted steel IP44 or 304L stainless steel IP65 for food and pharmaceutical use.

Easy to use

Handle with up and down button, soft start and charge indicator.

Choose it if…

you move boxes, crates or reels up to 55 kg
an up and down control is all you need
you need a narrow or angled base to get close to benches and shelves
a stroke of up to 1600 mm is enough

Choose another model if…

if you want the ErgoControl handle with remote control WP 65 →
if the load exceeds 55 kg or you need a stroke of up to 2050 mm WP 85 →
if you need a compact trolley with top included for a shop or office WP ONE →

Not sure which one to choose? Use the Work Positioner guide →

Where it is used

For light loads to carry, stack or take off shelves:

Food: crates and containers in production
Workshops and laboratories: parts and components at the bench
Warehouse: boxes to and from the shelves
Offices, pharmacies, libraries, shops: paper reams, books, boxes

See it at work

WP 55 with HDPE platform

WP 55 with HDPE roller platform

WP 55 with boom

The base: choose the legs

Standard legs

430 mm long, 476 mm wide.

Central legs

Narrow base: 422 × 144 mm.

Angled legs

400 × 380 mm.

More examples

With crane arm

Bags and loads hanging from the hook.

View product →

In the kitchen

Tool that picks up and tilts cooking trays.

Technical data

Version	Steel, Stainless Steel
Max Load Kg	55
Lift Stroke mm	965, 1200, 1600
Lifting Speed	120 mm/s
Legs	Standard, Corner, Central
Front Wheels	Ø 75 Swivelling
Rear Wheels	Ø 125 with Brake
Handle and Control Type	WPR-R55 Standard Handle with Soft-Start Button
Number of Cycles	150-250
Battery	2 AGM (24 V - 9 Ah)
Battery Charger	External 230 V 50-60Hz

Masts XS, S and M: overall height 1290, 1530 or 1940 mm, stroke 965, 1200 or 1600 mm. Trolley weight from 30 to 37 kg depending on mast and legs. Capacity measured with the load’s centre of gravity at 400 mm from the mast. On request: lithium batteries, central brake, ESD rear wheels.

Compatible tools and accessories

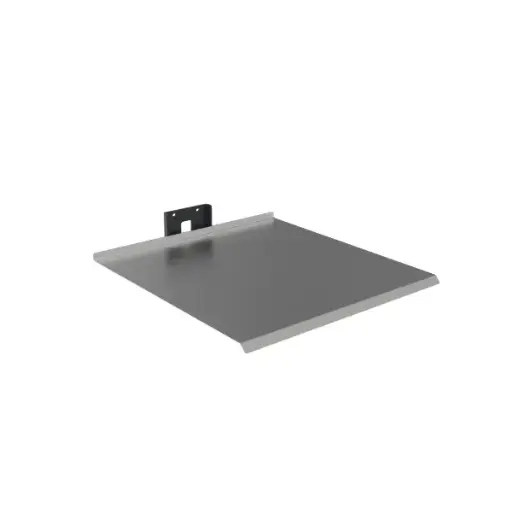

Steel Platform 60 kgUsable capacity 50 kg

Steel Platform 85 kgUsable capacity 45 kg

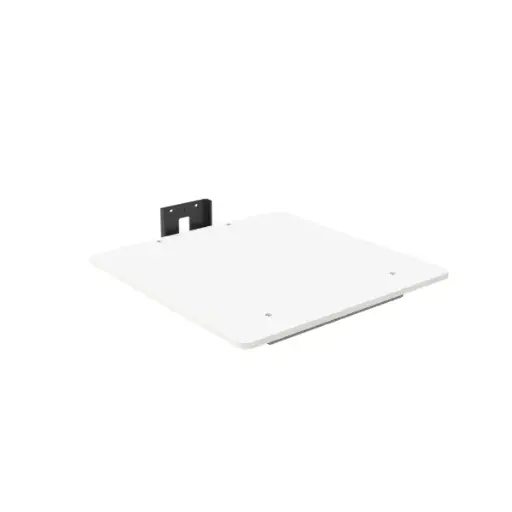

HDPE Platform 60 kgUsable capacity 50 kg

HDPE Platform 85 kgUsable capacity 50 kg

HDPE Platform with Rollers 85 kgUsable capacity 45 kg

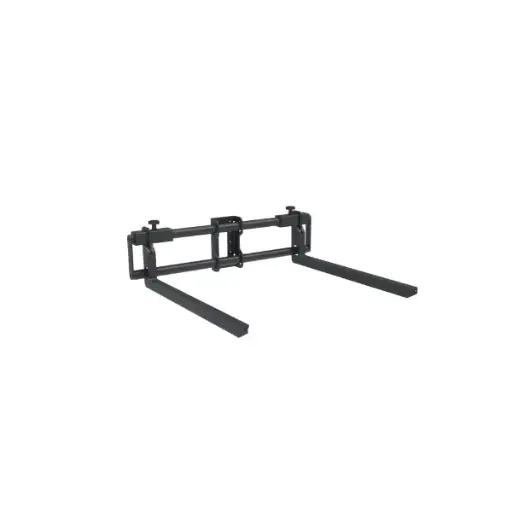

Adjustable fork 85 kgUsable capacity 40 kg

ForkUsable capacity 45 kg

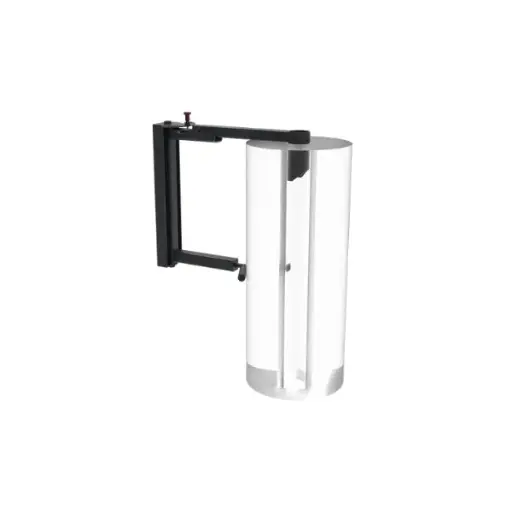

Articulated Core Gripper for Film Reels Ø 76 mmUsable capacity 45 kg

Manual core gripper with tilting 90° - 80 KgUsable capacity 40 kg

Vertical core gripper 80 kgUsable capacity 50 kg

Manual core gripper with tilting 90° - 80 Kg - ExtendedUsable capacity 40 kg

Boom with wheel + V-support 360°Usable capacity 50 kg

Boom with wheel for V supportUsable capacity 50 kg

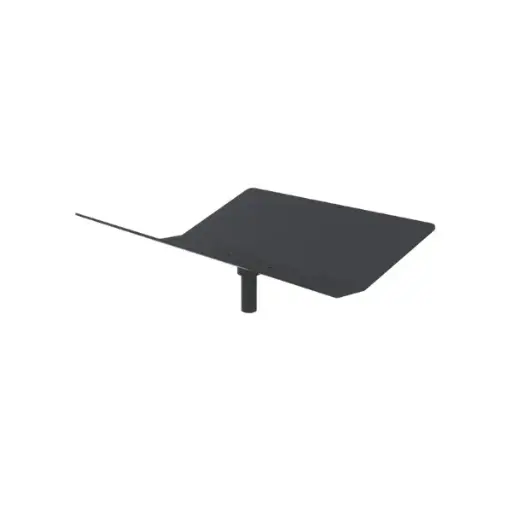

V supportUsable capacity 50 kg

Boom tube Ø 60Usable capacity 50 kg

Double boom tube Ø 35Usable capacity 50 kg

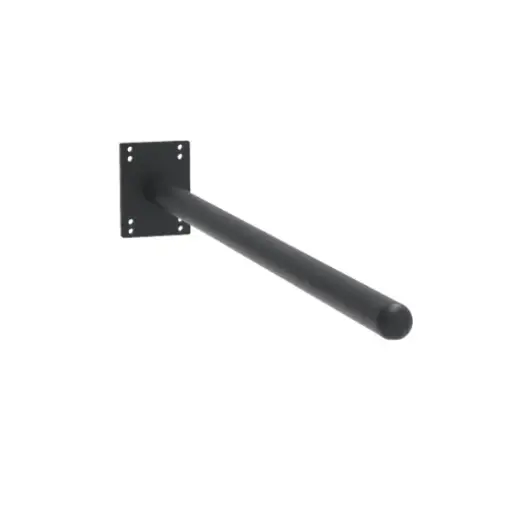

Boom tube Ø 35Usable capacity 50 kg

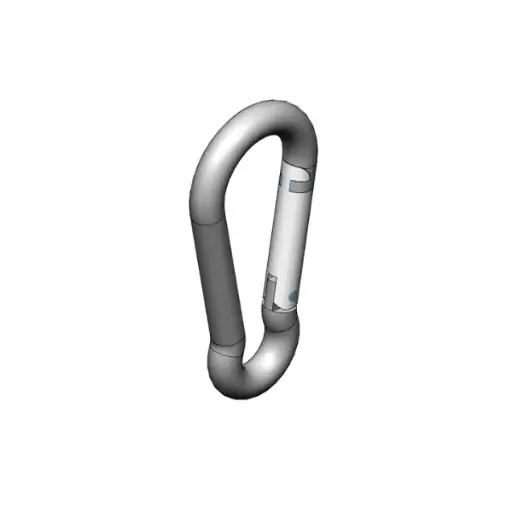

Snap hook 300 Kg Ø 6300 kg stainless steel snap hook for the crane arm

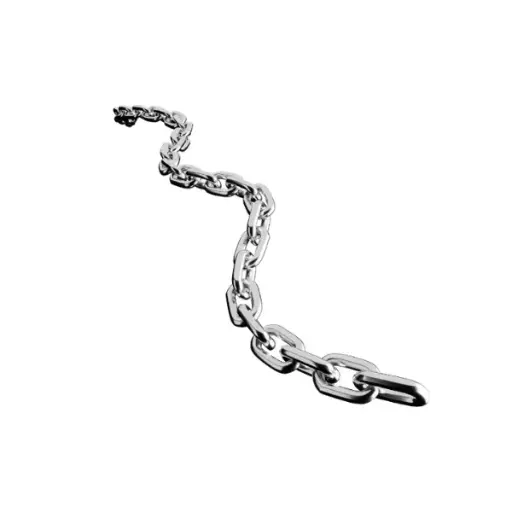

Lifting chain 1 mStainless steel chain by the metre for the crane arm

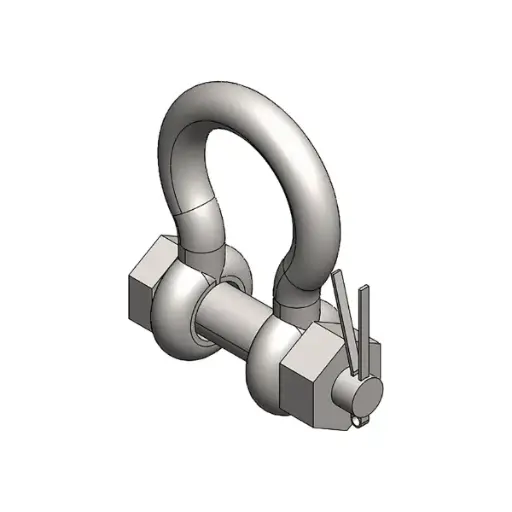

Safety shackle500 kg shackle for the crane arm

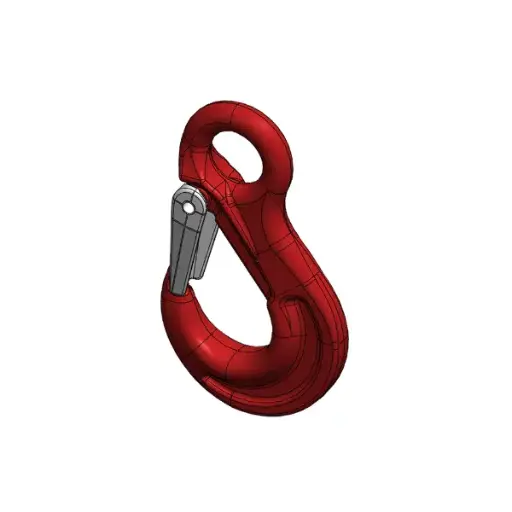

Latch hookLatch hook for the crane arm, also swivelling

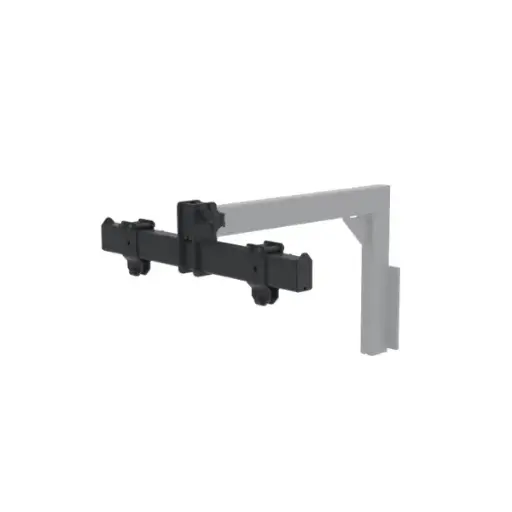

Adjustable crane crossbarCrossbar with 2 attachment points for the crane arm

Crane armUsable capacity 45 kg

Quick change tooling light 125 KgQuick change of manual tools, without screws

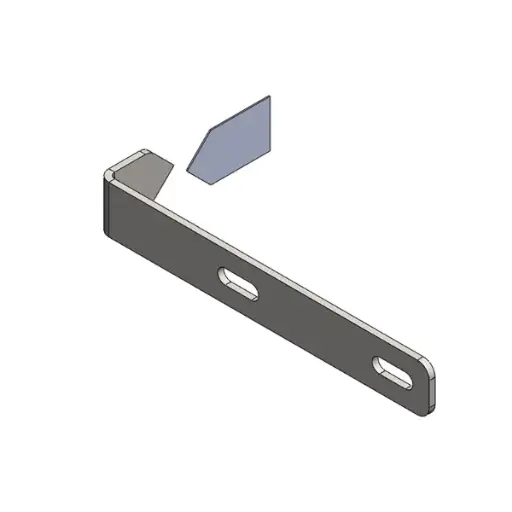

Height position marking6 markers on the mast to find the height again

Any other questions?Read the 12 frequently asked questions →

Which Work Positioner do you need?

Send us the weight, shape and heights of the load: we will recommend the model, mast, legs and tool.

Request a quote Call +39 0434 572757

Specifications

Model	WP 55XS-S
Version	Steel
Max Load Kg	55
Lift Stroke mm	965
Total Height mm	1290
Lifting Speed	120 mm/s
Legs	Standard
Legs Length mm	430
Legs Width mm	476
Front Wheels	Ø 75 Swivelling
Rear Wheels	Ø 125 with Brake
Handle and Control Type	WPR-R55 Standard Handle with Soft-Start Button
Number of Cycles	150-250
Battery	2 AGM (24 V - 9 Ah)
Battery Charger	External 230 V 50-60Hz
Weight Kg	33

Up to 55 kg, with the load’s centre of gravity 400 mm from the mast. The stroke depends on the mast: 965 mm with XS, 1200 mm with S and 1600 mm with M. If the load is over 55 kg or you need a stroke of up to 2050 mm, there is the WP 85; if you want a remote control, the WP 65.

The 2 standard AGM batteries (24 V – 9 Ah) charge to 100% in 7.5 hours with the external charger, and the charge level is shown on the handle; the trolley must not be used while charging. On request there are lithium batteries (WPR-O-0004), which charge faster, or a removable battery pack with charging station (WPR-O-0039) and extra packs to swap.

Yes: platforms, forks, booms, core grippers and the crane arm are fixed to the tool carriage with M6 screws. With the WPR-A-0001-SS quick change the trolley part stays on the WP 55 and a tool part (WPR-A-0002-SS) is fitted to each tool: you change it in a few seconds, on your own, without unscrewing it.

There are three bases: standard legs 430 mm long and 476 mm wide, central legs with a narrow 422 × 144 mm base and angled legs 400 × 380 mm. The central and angled legs let you get closer to benches and shelves.

It is pushed by hand using the handle, on a Ø 75 mm swivel front wheel and Ø 125 mm rear wheels with brakes; a central brake is available on request (WPR-O-0020). With a load it must be moved slowly and in the low position, on a level floor: the maximum slope is 5% fully loaded and 15% unloaded.

Among the documents you can download from this page: the user manual in Italian and English and the technical drawing. The wiring diagram is on page 24 of the manual, right after the spare parts list.

A work positioner: the battery-powered electric lifter that lifts, carries and positions the part at the push of a button, with the right tool for the load: platform, forks, boom, gripper or crane arm. Capacities range from 55 to 285 kg.

With a work positioner and the right tool: the boom goes into the core of the reel, the gripper clamps it from the outside, and there is also an electric gripper that turns it through 90°. For drums there is the manual front tilting gripper, which lifts and tilts them with a handwheel.

From four things: part weight, how you pick it up (which tool you need), stroke and working environment. The capacity applies with the centre of gravity 400 mm from the mast, tool included; the work positioner buying guide, with its 4-question selector, shows you the suitable models and tools.

Yes, in the stainless steel version: work positioner and tools in 304L stainless steel with IP 65 protection, from WP 55 to WP 285, for the food, pharmaceutical and chemical industries. Stainless units take tools in the SS version; the WP ONE comes in IP 44 steel only.

Overload protection stops lifting if the load is too heavy and the anti-crush system stops lowering if it meets an obstacle; there is also a reinforced toothed belt, shielded moving parts, soft start and stop and an emergency stop on the control unit. It must not be used to lift people.

Every 6 months the belt, fixing screws and batteries are checked; once a year the mechanical and electrical parts, by authorised staff. Charge the battery at least once or twice a week, even with occasional use, and every 6 months if the work positioner is not used.
