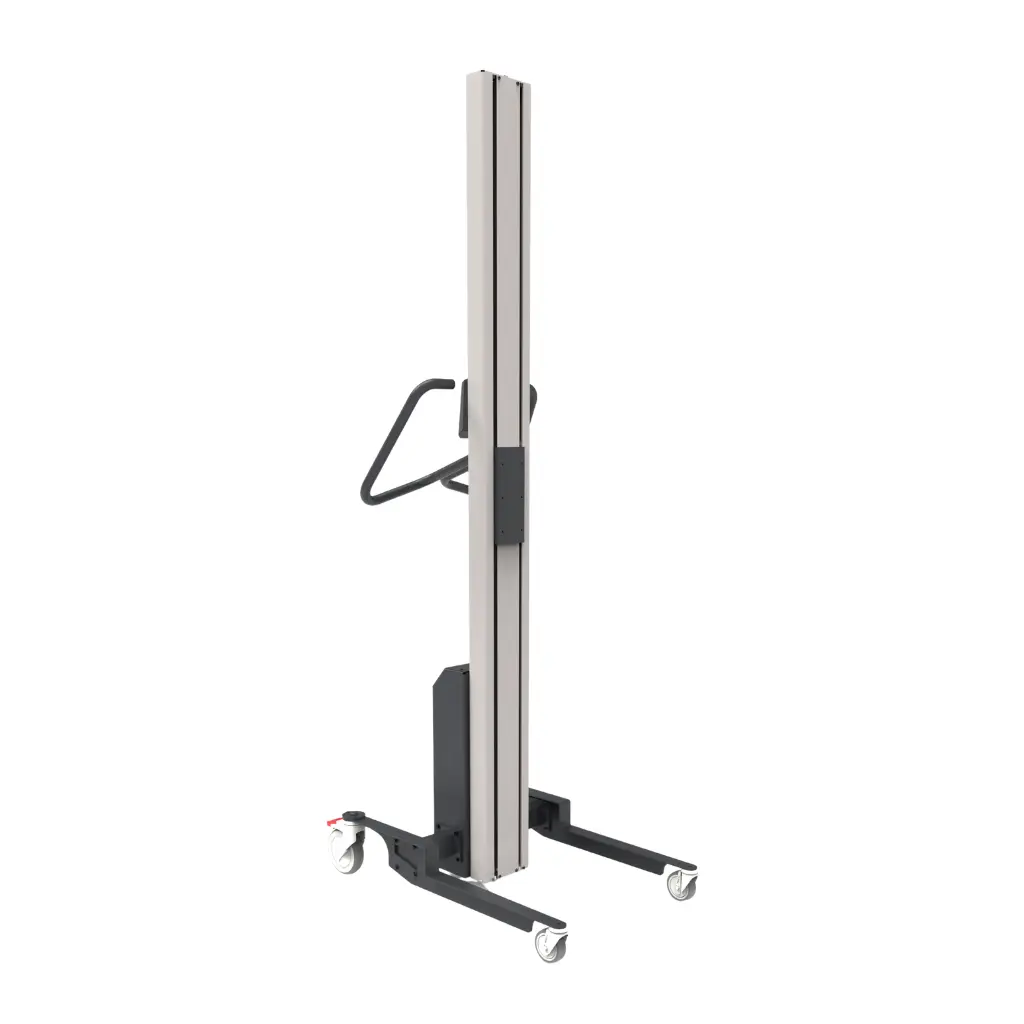

Edmolift WP 65 Electric Work Positioner 65 kg

Work Positioner

Edmolift WP 65 Electric Work Positioner 65 kg

The WP 65 lifts cartons, reels and crates up to 65 kg and brings them to working height, up to 194 cm. It is controlled from the ErgoControl handle with remote control; the aluminium and steel structure makes it light and sturdy. The Edmolift WP 65 is a battery electric work positioner: an ergonomic lifting device for reels and boxes.

Capacity 65 kg at 400 mmStroke up to 1600 mmErgoControl handleSteel IP44 or stainless steel IP65

65 kgcapacity at 400 mm from the mast

1600 mmmaximum stroke

7.5 hfull charge

IP65stainless steel version

Why choose it

ErgoControl remote control

Ergonomic handle with remote control; automatic levelling on request.

Overload limiter

Protects trolley and operator if the load is too heavy.

Easy to maintain

Designed for simple maintenance and repairs.

Steel or stainless steel

Painted steel IP44 or 304L stainless steel IP65 for food and pharmaceutical use.

Choose it if…

you move cartons, reels or crates up to 65 kg
you want to control the trolley from the remote control on the handle
a stroke of up to 1600 mm is enough
you work in the food or pharmaceutical sector: stainless steel IP65 version

Choose another model if…

if an up and down button is enough and the load does not exceed 55 kg WP 55 →
if the load reaches 85 kg or you need a stroke of up to 2050 mm WP 85 →
if you need electric grippers or capacities up to 125 kg WP 125 →

Not sure which one to choose? Use the Work Positioner guide →

Where it is used

For light and medium loads to pick up, lift and set down:

Production: reels and semi-finished products to load into machines
Food and pharmaceutical: stainless steel IP65 version
Warehouse: cartons and crates to and from the shelves
Gas cylinders: with the crane arm (video below)

The base: choose the legs

Standard legs

430 mm long, 476 mm wide.

Central legs

Narrow base: 422 × 144 mm.

Angled legs

400 × 380 mm.

Technical data

Version	Steel, Stainless Steel
Max Load Kg	65
Lift Stroke mm	965, 1200, 1600
Lifting Speed	120 mm/s
Legs	Standard, Corner, Central
Front Wheels	Ø 75 Swivelling
Rear Wheels	Ø 125 with Brake
Handle and Control Type	WPR-R1 Ergonomic Handle with remote control
Number of Cycles	150-250
Battery	2 AGM (24 V - 9 Ah)
Battery Charger	External 230 V 50-60Hz

Masts XS, S and M: overall height 1290, 1530 or 1940 mm, stroke 965, 1200 or 1600 mm. Trolley weight from 31 to 41 kg. Capacity measured with the load’s centre of gravity at 400 mm from the mast. On request: lithium batteries, automatic levelling, central brake, ESD rear wheels.

Compatible tools and accessories

Steel Platform 60 kgUsable capacity 60 kg

Steel Platform 85 kgUsable capacity 55 kg

HDPE Platform 60 kgUsable capacity 60 kg

HDPE Platform 85 kgUsable capacity 60 kg

HDPE Platform with Rollers 85 kgUsable capacity 55 kg

Adjustable fork 85 kgUsable capacity 50 kg

ForkUsable capacity 55 kg

Symmetric adjustable fork 180 KgUsable capacity 50 kg

4 Cleat forksUsable capacity 55 kg

8 Cleat forksUsable capacity 50 kg

Fork for rolling tray for Eu std binsUsable capacity 50 kg

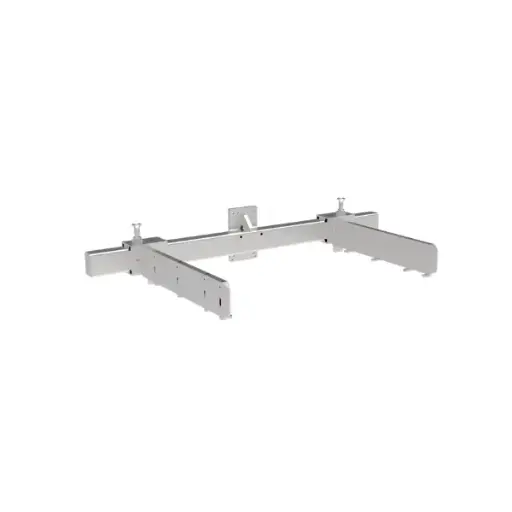

8 Cleat forks adjustableUsable capacity 50 kg

Articulated Core Gripper for Film Reels Ø 76 mmUsable capacity 50 kg

Manual core gripper with tilting 90° - 80 KgUsable capacity 50 kg

Vertical core gripper 80 kgUsable capacity 60 kg

Boom with wheel + V-support 360°Usable capacity 60 kg

Boom with wheel for V supportUsable capacity 60 kg

Boom tube Ø 60Usable capacity 60 kg

Double boom tube Ø 35Usable capacity 60 kg

Boom tube Ø 35Usable capacity 60 kg

Crane armUsable capacity 55 kg

Quick change tooling light 125 KgQuick change of manual tools, without screws

Lateral translatorMoves the tool sideways by ±200 mm

Height position marking6 markers on the mast to find the height again

Electric rotation system 150 Kg360° electric rotation with 3 positions

Any other questions?Read the 12 frequently asked questions →

Which Work Positioner do you need?

Send us the weight, shape and heights of the load: we will recommend the model, mast, legs and tool.

Request a quote Call +39 0434 572757

Specifications

Model	WP 65XS-S
Version	Steel
Max Load Kg	65
Lift Stroke mm	965
Total Height mm	1290
Lifting Speed	120 mm/s
Legs	Standard
Legs Length mm	430
Legs Width mm	476
Front Wheels	Ø 75 Swivelling
Rear Wheels	Ø 125 with Brake
Handle and Control Type	WPR-R1 Ergonomic Handle with remote control
Number of Cycles	150-250
Battery	2 AGM (24 V - 9 Ah)
Battery Charger	External 230 V 50-60Hz
Weight Kg	37

Up to 65 kg, with the load’s centre of gravity 400 mm from the mast. The stroke is 965, 1200 or 1600 mm depending on the mast (XS, S or M). For loads up to 85 kg or a stroke of up to 2050 mm there is the WP 85; for electric grippers, the WP 125.

From the ErgoControl handle: with an up/down button (WPR-R0), with a remote control (WPR-R1) or with a remote control plus the automatic levelling or multi-position option (WPR-R2). The battery level is shown on the control unit.

The 2 standard AGM batteries (24 V – 9 Ah) charge to 100% in 7.5 hours with the external charger; the trolley must not be used while charging. On request there are lithium batteries (WPR-O-0004), which charge faster, or a removable battery pack with charging station (WPR-O-0039) and extra packs to swap.

Yes: platforms, forks, booms, core grippers and the crane arm are fixed to the tool carriage with M6 screws. With the WPR-A-0001-SS quick change the trolley part stays on the WP 65 and a tool part (WPR-A-0002-SS) is fitted to each tool: you change it in a few seconds, on your own, without unscrewing it.

There are three bases: standard legs 430 mm long and 476 mm wide, central legs with a narrow 422 × 144 mm base and angled legs 400 × 380 mm. The central and angled legs let you get closer to benches and shelves.

Among the documents you can download from this page: the user manual in Italian and English and the technical drawing. The wiring diagram is on page 24 of the manual, right after the spare parts list.

A work positioner: the battery-powered electric lifter that lifts, carries and positions the part at the push of a button, with the right tool for the load: platform, forks, boom, gripper or crane arm. Capacities range from 55 to 285 kg.

With a work positioner and the right tool: the boom goes into the core of the reel, the gripper clamps it from the outside, and there is also an electric gripper that turns it through 90°. For drums there is the manual front tilting gripper, which lifts and tilts them with a handwheel.

From four things: part weight, how you pick it up (which tool you need), stroke and working environment. The capacity applies with the centre of gravity 400 mm from the mast, tool included; the work positioner buying guide, with its 4-question selector, shows you the suitable models and tools.

Yes, in the stainless steel version: work positioner and tools in 304L stainless steel with IP 65 protection, from WP 55 to WP 285, for the food, pharmaceutical and chemical industries. Stainless units take tools in the SS version; the WP ONE comes in IP 44 steel only.

Overload protection stops lifting if the load is too heavy and the anti-crush system stops lowering if it meets an obstacle; there is also a reinforced toothed belt, shielded moving parts, soft start and stop and an emergency stop on the control unit. It must not be used to lift people.

Every 6 months the belt, fixing screws and batteries are checked; once a year the mechanical and electrical parts, by authorised staff. Charge the battery at least once or twice a week, even with occasional use, and every 6 months if the work positioner is not used.
