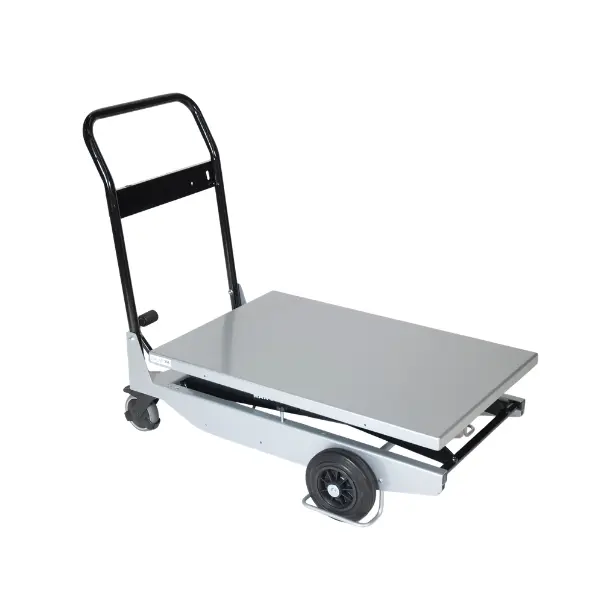

TZ 303 Scissor Lift Trolley
The TZ 303 is a scissor lift trolley with a capacity of 300 kg, a 900×600 mm platform and a lifting stroke of 600 mm (minimum height 330 mm), operated by a foot pump. The structure, with a dead weight of 180 kg, ensures stability in industrial handling applications at variable height. CE certified to EN ISO 3691-5, it is suitable for use in production and logistics environments where compliance with European safety regulations is required.
Documents
Edmolift · Scissor lift trolley

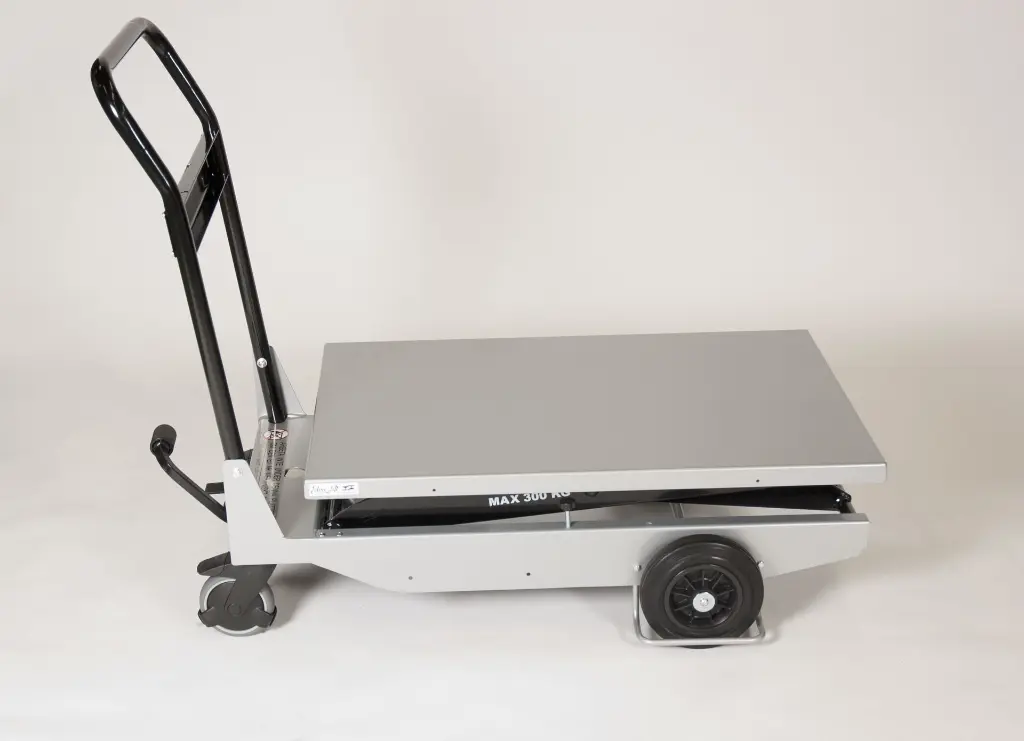

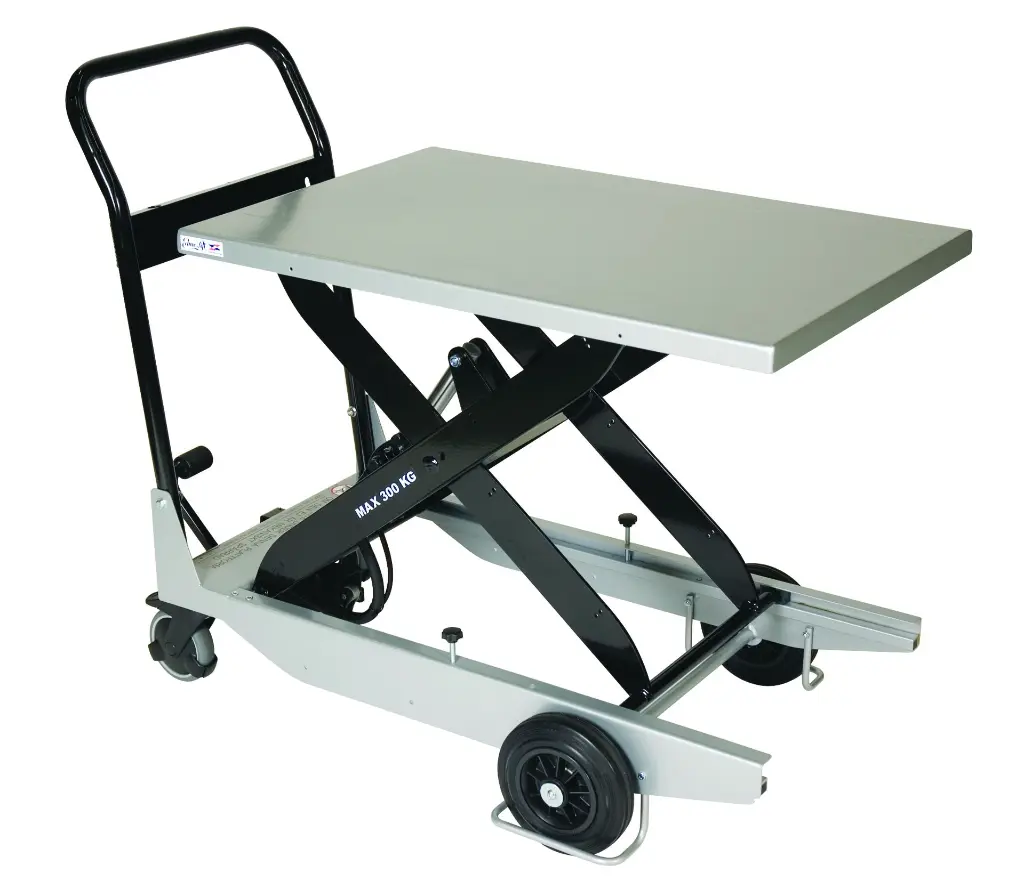

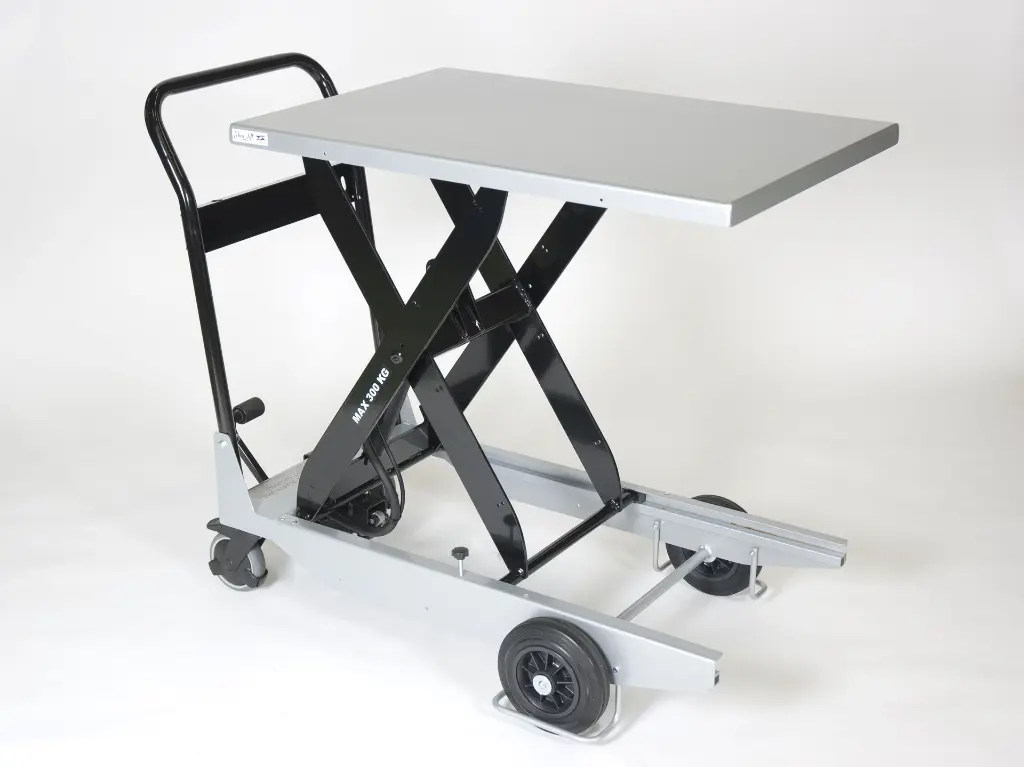

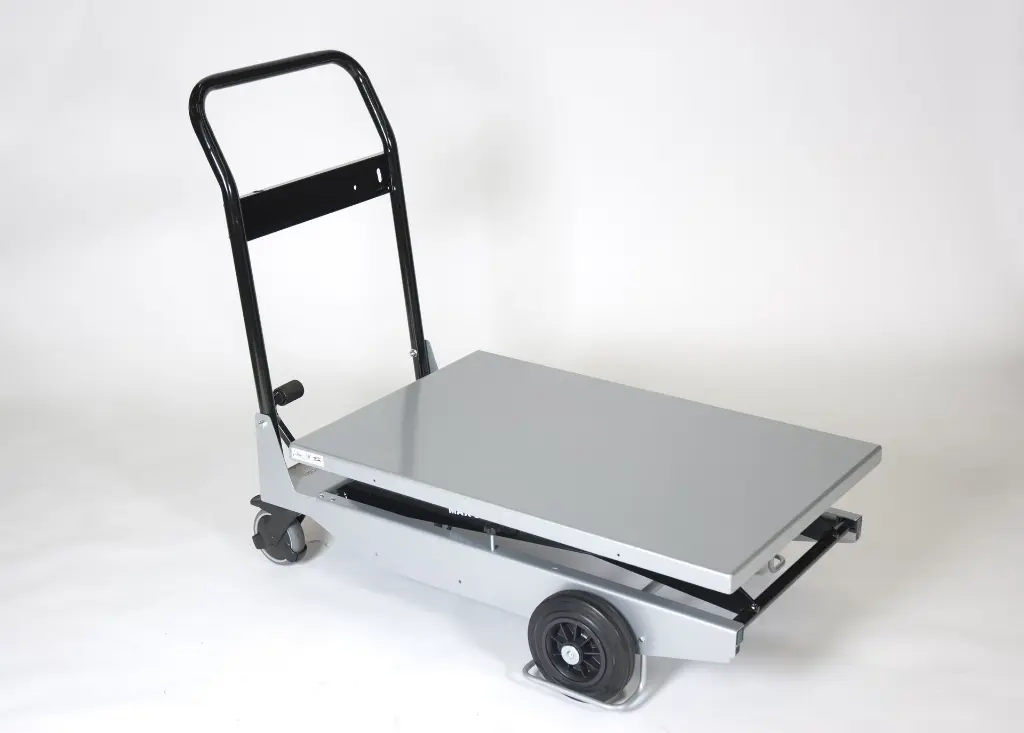

TZ 303: scissor lift trolley with foot pump
A mobile work surface: you lift the load, take it where it is needed and keep it at the right height for assembly or work. Large wheels, with a double brake on the swivel castors. It is raised with the foot pump, without power.
Why choose it
Lifts and carries
For lifting, assembling or transporting goods, or wherever a work surface at a stable height is needed.
Easy to manoeuvre
Large wheels and a double brake on the swivel castors: you move it and stop it where you work.
No power needed
The foot pump raises the platform without batteries or cables.
Safe
Safety clearance between moving parts and overload protection.
Right for you if…
- the load has to be lifted and also moved between workstations
- you need a mobile work surface at a stable height
- you want to work without power or batteries
Choose another solution if…
- you prefer battery lifting TZ 503B Scissor Lift Trolley →
- you need more stroke TZD 203 Scissor Lift Trolley →
- you need 1000 kg or a larger platform EZ 1001B Scissor Lift Trolley →
- the platform must not move TR 501 Single Scissor Lift Table →
Not sure which one to choose? Use the lift table selection guide →
Other scissor lift trolleys
Technical data
| Capacity Kg | 300 |
| Lift Stroke mm | 600 |
| Lowest Height mm | 330 |
| Max Height mm | 930 |
| Lift Table Length mm | 900 |
| Lift Table Width mm | 600 |
| Lift Drive | Foot Pump |
| Weight Kg | 65 |
| Certificate | CE - EN ISO 3691-5 |
On request the front wheels can be moved forward for more stability.
Images and applications
Accessories and related products
Turntable for Lifting PlatformsRotates the load on the platform, Ø 650 to 1150 mmNeed help choosing?
Tell us the load, dimensions, stroke and work cycles: we will recommend the model and accessories.
