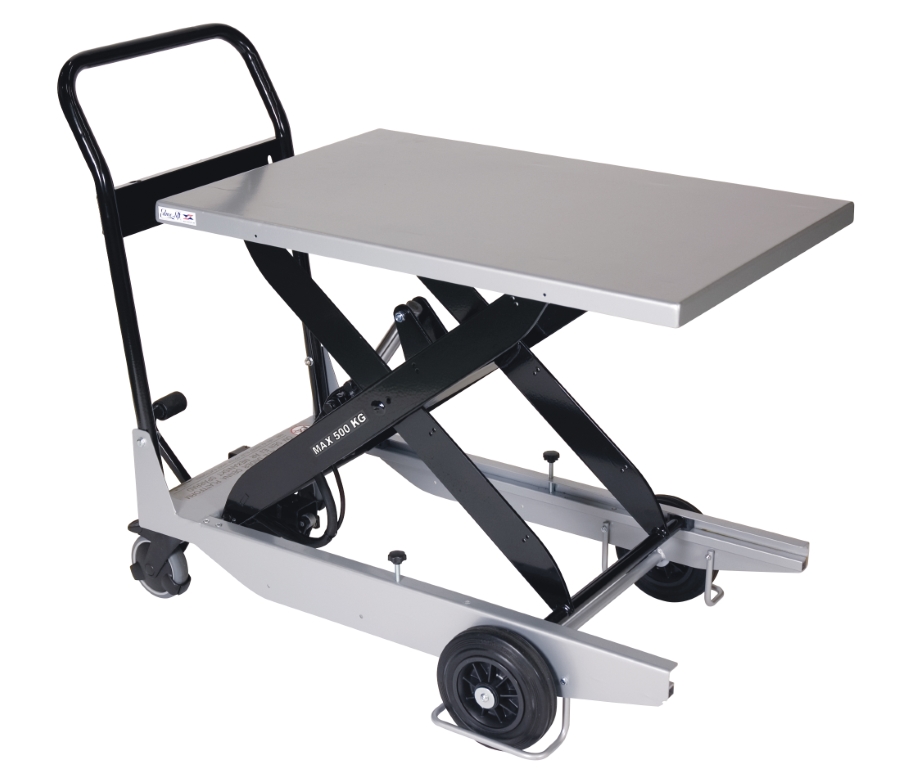

TZ 503 Scissor Lift Trolley

https://leanproducts.eu/web/image/product.template/1678/image_1920?unique=0ea4d65

The TZ 503 is a scissor lift trolley with a capacity of 500 kg, a 900×600 mm platform and a lifting stroke of 600 mm (minimum height 330 mm), operated by a foot pump. CE certified to EN ISO 3691-5, it is designed for handling and positioning at height in industrial and logistics environments. The scissor structure ensures load stability during raising and lowering, reducing the operator's physical effort.

Code: 521444
  • Lowest Height mm
  • Max Height mm
  • Lift Drive
  • Weight Kg
  • Certificate

This combination does not exist.

Log in to see prices and buy
You have already submitted a query for this product today.
Contact Us
Download PDF data sheet

Specifications

Capacity Kg 500
Lift Stroke mm 600
Lowest Height mm 330
Max Height mm 930
Lift Table Length mm 900
Lift Table Width mm 600
Lift Drive Foot Pump
Weight Kg 75
Certificate CE - EN ISO 3691-5

With the foot pump the platform rises without power. Models with B in the name are battery-powered: sealed, maintenance-free gel battery, charger included, 12 V controls with emergency stop.

Yes: the swivel castors have a double brake. The lowering of the platform is also adjustable.

Yes: the platform top can be drilled to fix equipment or guides, avoiding the area where the scissor runs.

Orange RAL 2009 and blue RAL 5002 as standard. Anthracite grey RAL 7024 and black RAL 9005 at no extra charge; other RAL colours, over 200, on request at an extra charge.

The Series T is made entirely in Sweden and is configured with accessories, controls and colours. The Series C is the lighter, more economical version: the hydraulics and many components are the same as on the T, but it cannot be customised, takes only a few accessories and has fixed colours orange and blue.
