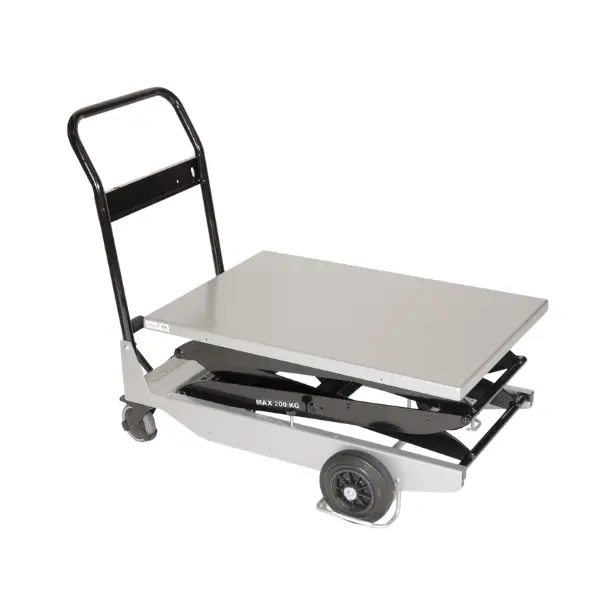

TZD 203 Scissor Lift Trolley
The TZD 203 scissor lift trolley is designed for industrial lifting operations with a capacity of 200 kg and a lifting stroke of 1170 mm, starting from a minimum height of 450 mm. The 900×600 mm platform and the foot pump drive ensure ergonomic use with no need for an electrical supply. CE certified to EN ISO 3691-5, it is suitable for assembly stations, warehouses and production lines where quick adjustment of the working height is required.
Documents
Edmolift · Scissor lift trolley
TZD 203: double scissor lift trolley with foot pump
A mobile work surface: you lift the load, take it where it is needed and keep it at the right height for assembly or work. Large wheels, with a double brake on the swivel castors. It is raised with the foot pump, without power.
Why choose it
Lifts and carries
For lifting, assembling or transporting goods, or wherever a work surface at a stable height is needed.
Easy to manoeuvre
Large wheels and a double brake on the swivel castors: you move it and stop it where you work.
No power needed
The foot pump raises the platform without batteries or cables.
Safe
Safety clearance between moving parts and overload protection.
Right for you if…
- the load has to be lifted and also moved between workstations
- you need a mobile work surface at a stable height
- you want to work without power or batteries
Choose another solution if…
- you prefer battery lifting TZD 203B Scissor Lift Trolley →
- you need more capacity and more stroke EZD 500B Scissor Lift Trolley →
- a lower stroke with more capacity is enough TZ 503 Scissor Lift Trolley →
- the platform must not move TRD 500 Vertical Lift Table →
Not sure which one to choose? Use the lift table selection guide →
Other scissor lift trolleys
Technical data
| Capacity Kg | 200 |
| Lift Stroke mm | 1170 |
| Lowest Height mm | 450 |
| Max Height mm | 1620 |
| Lift Table Length mm | 900 |
| Lift Table Width mm | 600 |
| Lift Drive | Foot Pump |
| Weight Kg | 85 |
| Certificate | CE - EN ISO 3691-5 |
On request the front wheels can be moved forward for more stability.
